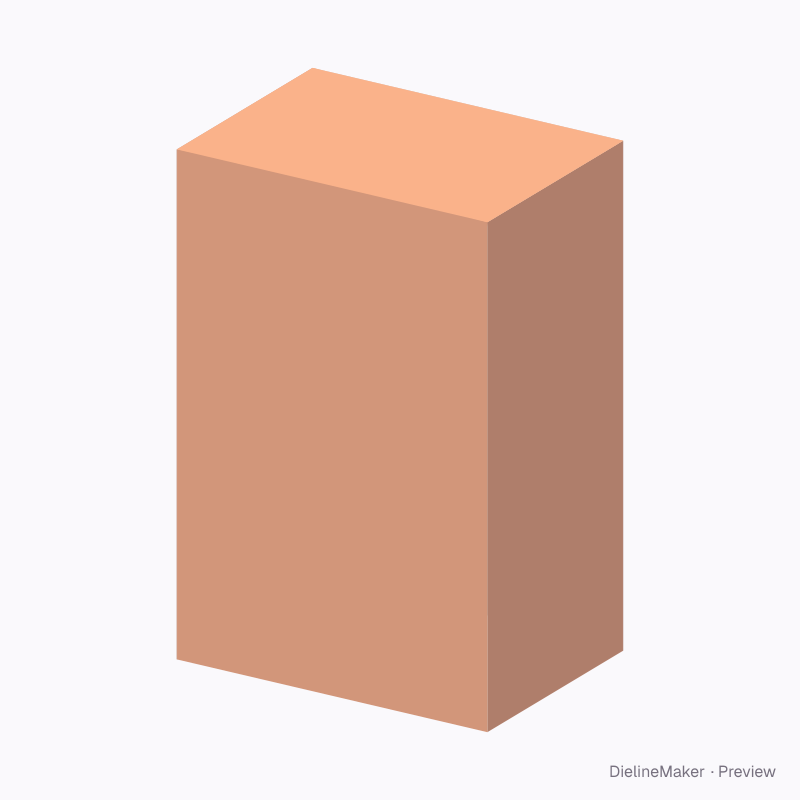

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ALT-LOCK-BOTTOM-01Tuck end
Hook-lock bottom carton dieline

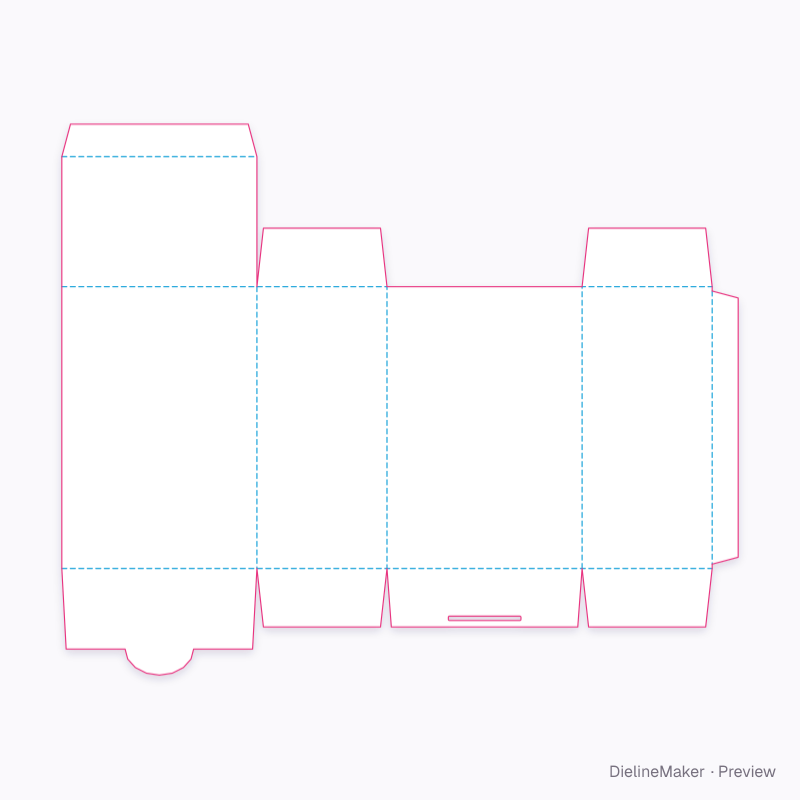

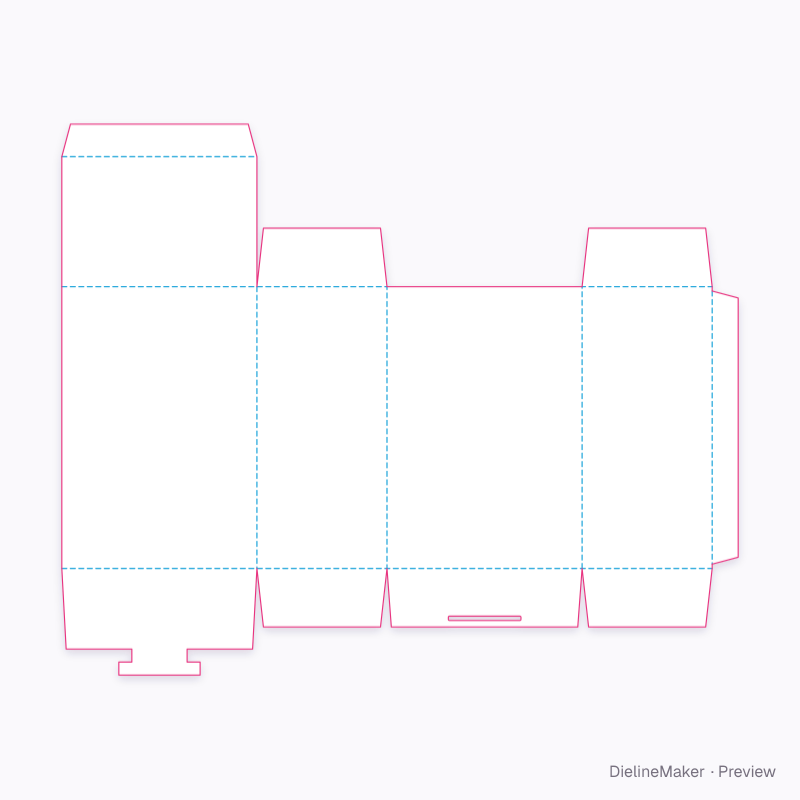

A tuck-top carton whose base closes with a button, hook or safety-buckle tongue locking the back flap into the front flap. A ready-sized preset of the carton with alternate lock bottom — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 70 × 150 mm
Outside101 × 71 × 151 mm
Flat blank352 × 290.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ALT-LOCK-BOTTOM-01
- Inside size
- Length 100 · Width 70 · Height 150 mm
- Size range
- Length 40–300 · Width 30–200 · Height 40–400 mm
- Manufacturing
- 100.5 × 70.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.077 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for

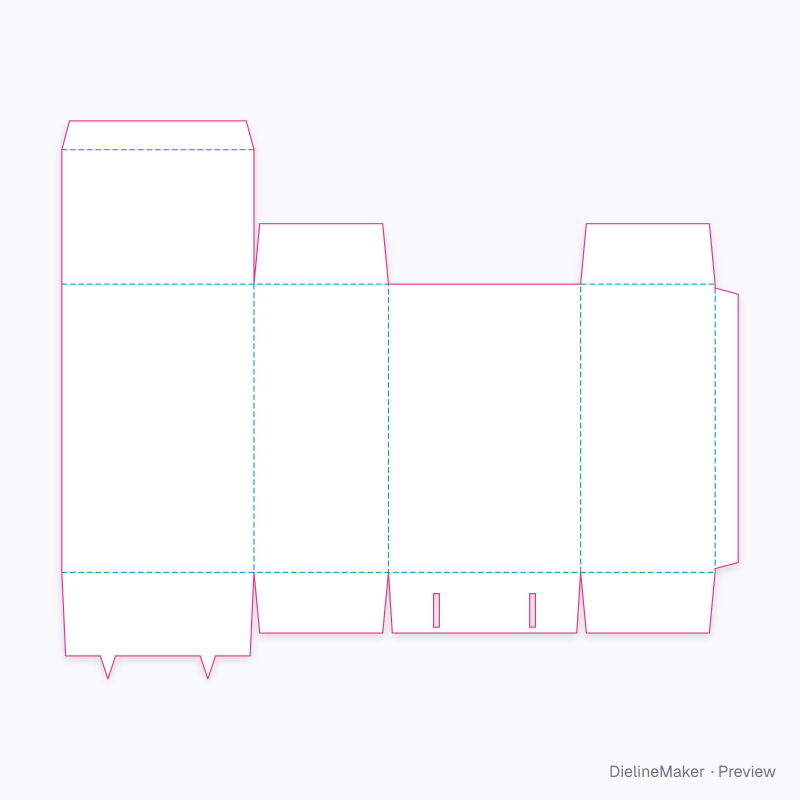

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ALT-LOCK-BOTTOM-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 100 × 150 | L × H |
| Left side | 70 × 150 | W × H |
| Top lid | 100 × 70 | L × W |
| Back bottom flap | 100 × 55.4 | L × – |
| Front | 100 × 150 | L × H |
| Dust flap ×4 | 70 × 31.5 | W × – |
| Tuck | 100 × 15 | L × – |
| Right side | 70 × 150 | W × H |
| Front bottom flap | 100 × 31.5 | L × – |
| Glue flap | 12 × 146 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Bottom lock3 options
- Top tuck depthmm
The carton with alternate lock bottom family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hook-lock bottom carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
