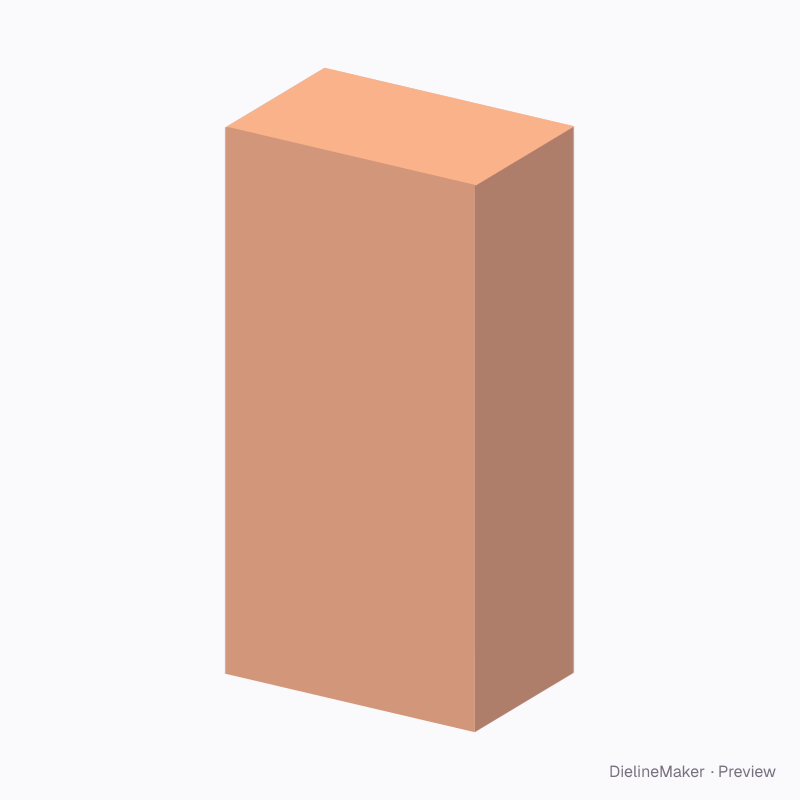

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SIDE-ACCESS-DOOR-01Tuck end
Side access door carton 110×70×220 dieline
A tuck-end carton whose front has a large arched or gabled door, cut on three sides and creased at the foot. A ready-sized preset of the carton with shaped hinged door — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 70 × 220 mm
Outside111 × 71 × 222 mm
Flat blank373.5 × 390 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SIDE-ACCESS-DOOR-01
- Inside size
- Length 110 · Width 70 · Height 220 mm
- Size range
- Length 50–300 · Width 30–200 · Height 80–400 mm
- Manufacturing
- 110.5 × 70.5 × 221 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.111 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline

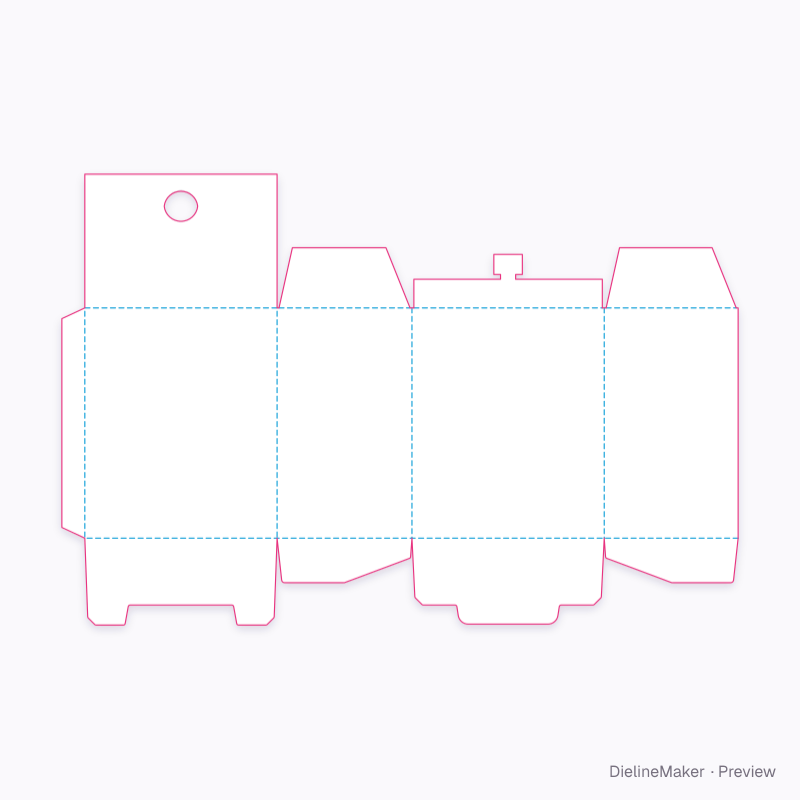

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SIDE-ACCESS-DOOR-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 110.5 × 221 | L + T × H + 2T |
| Left side | 70.5 × 221 | W + T × H + 2T |
| Back | 110.5 × 221 | L + T × H + 2T |
| Right side | 70 × 221 | W × H + 2T |
| Glue flap | 12 × 221 | – × H + 2T |
| Bottom closure | 110.5 × 69.5 | L + T × W − T |
| Bottom tuck | 109.5 × 15 | L − T × – |
| Bottom dust flap ×2 | 67.5 × 42.5 | – |
| Top closure | 110.5 × 69.5 | L + T × W − T |
| Top tuck | 109.5 × 15 | L − T × – |
| Top dust flap | 67.5 × 42.5 | – |
| Top dust flap | 67 × 42.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Door head3 options
- Door open angle°
- Door face2 options
- Door marginmm
The carton with shaped hinged door family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this side access door carton 110×70×220 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
