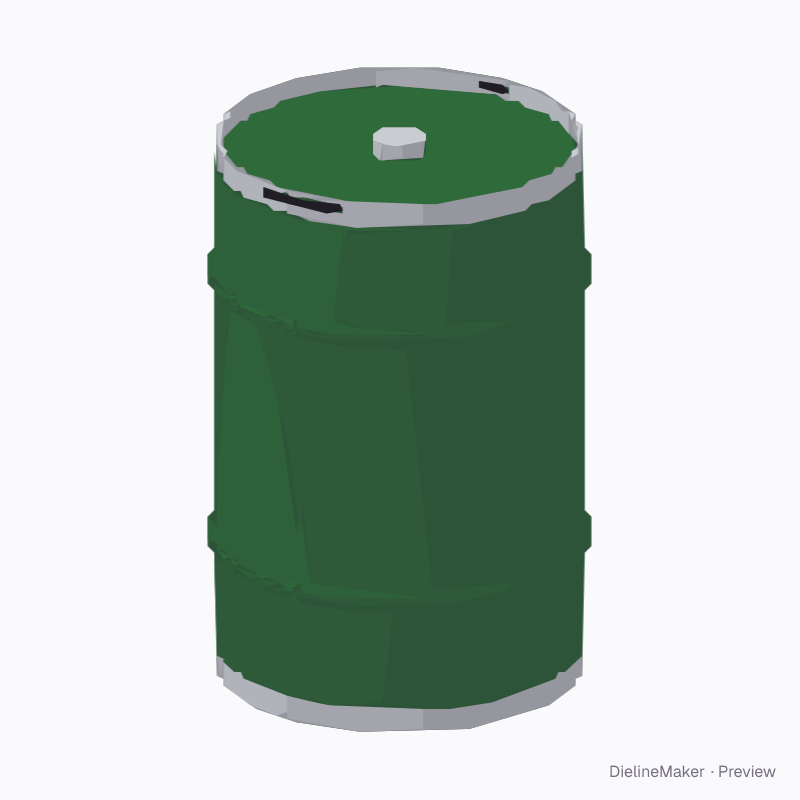

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-KEG-01Labels
50 L glossy painted keg dieline
A 5 L party mini keg with a top tap, or a 20/50 L steel keg with rolling rings, chime handles and spear valve. Print the body wrap; choose a metallic or glossy finish. A ready-sized preset of the beer keg — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 395 × 600 mm
OutsideØ 395 × 600 mm
Flat blank1240.9 × 252 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-KEG-01
- Inside size
- Diameter 395 · Height 600 mm
- Size range
- Diameter 120–420 · Height 200–650 mm
- Manufacturing
- Ø 395 × 600 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.313 m²
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Keg type2 options
- Finish5 options
The beer keg family
The same structure with sizes, boards and options set for a use.

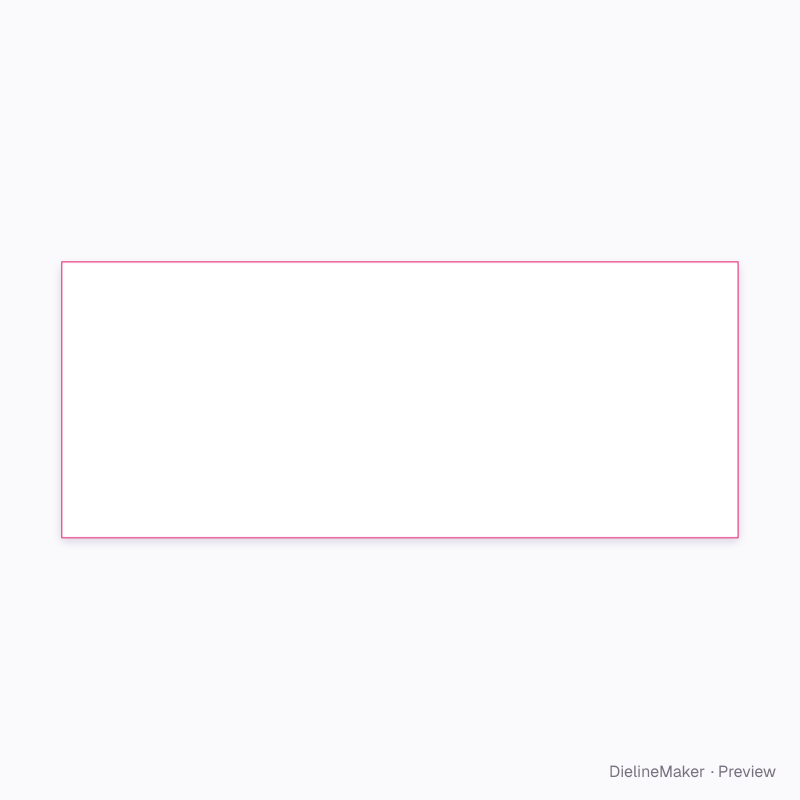

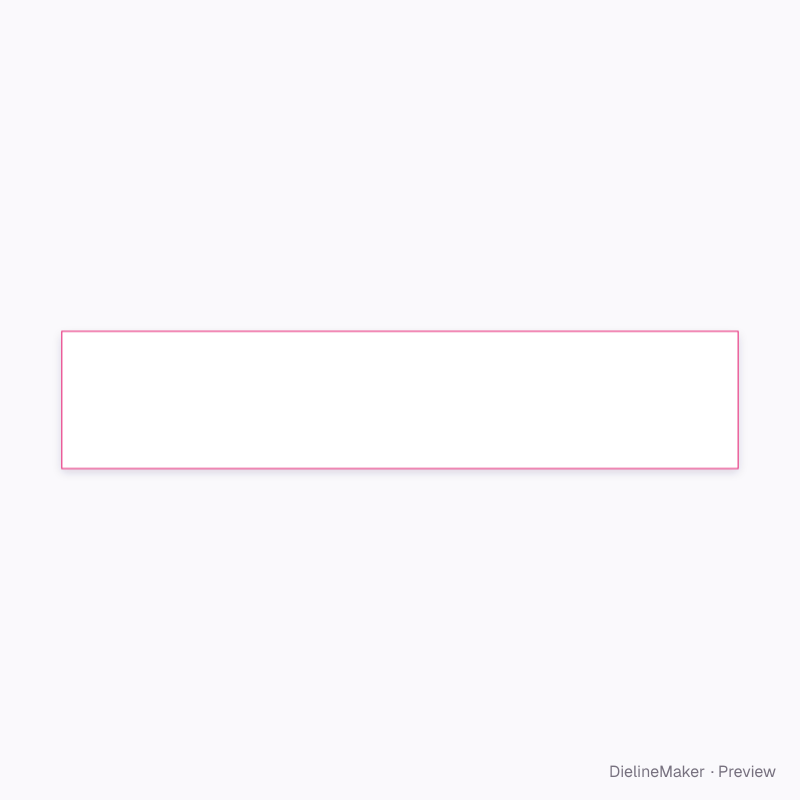

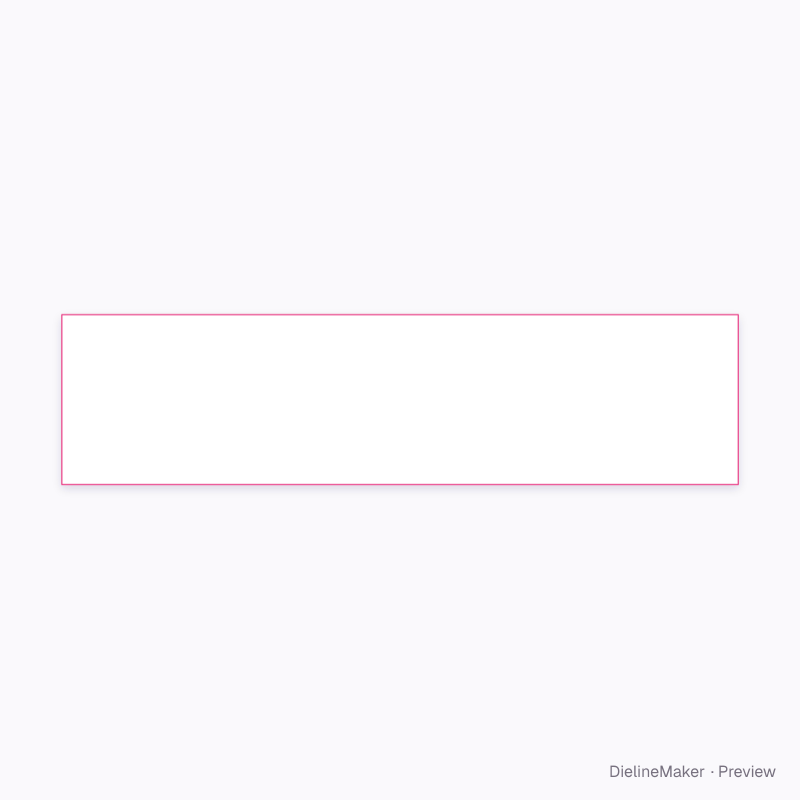

Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 50 l glossy painted keg yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
