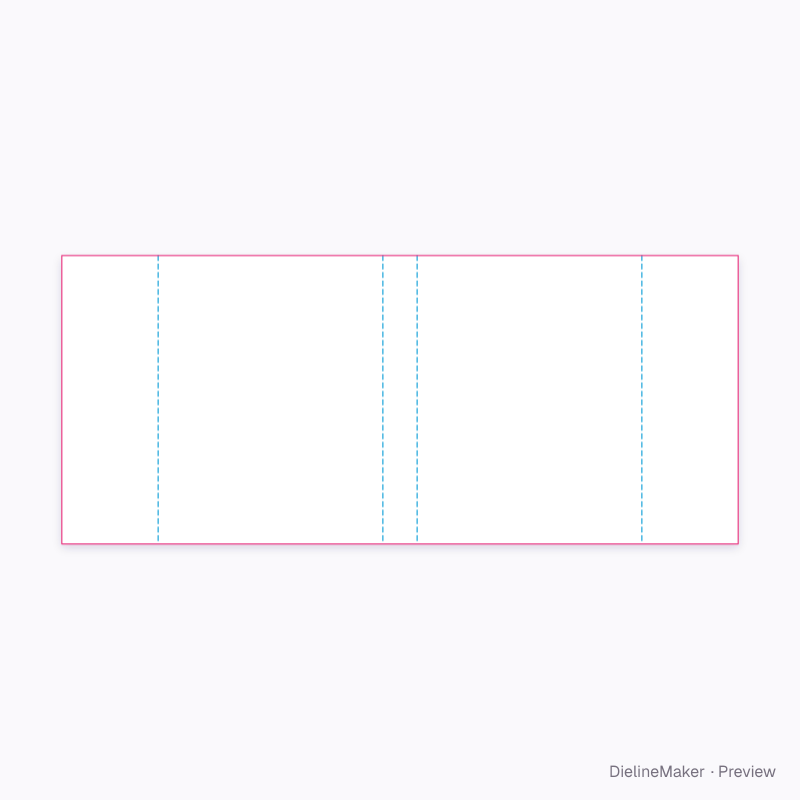

Book dust jacket dieline
A five-panel printed jacket with two turn-in flaps. Enter the finished case size and printer-confirmed spine width; the preview shows the jacket without the book block. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside156 × 24 × 222 mm
Outside156 × 24 × 222 mm
Flat blank485.8 × 222 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Cover width 156 · Spine width 24 · Cover height 222 mm
- Size range
- Cover width 75–400 · Spine width 3–100 · Cover height 100–450 mm
- Manufacturing
- 156 × 24 × 222 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.108 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front cover | 156 × 222 | L × H |
| Spine | 24 × 222 | W × H |
| Back cover | 156 × 222 | L × H |
| Front turn-in | 74.9 × 222 | – × H |
| Back turn-in | 74.9 × 222 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Turn-in flapmm
