The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BOTTLE-SADDLE-CARD-01Cards & tags
Bottle-profile saddle hang card dieline
A folded hang card whose plies carry a bottle neck-and-shoulder notch, straddling the bottle with a Euro slot above. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 110 mm
Outside91 × 111 mm
Flat blank90 × 220 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BOTTLE-SADDLE-CARD-01
- Inside size
- Card width 90 · Ply height 110 mm
- Size range
- Card width 50–200 · Ply height 50–250 mm
- Manufacturing
- 90.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.017 m² · about 30 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300Kraft 350FBB 400SBS 18 pt
- Good for

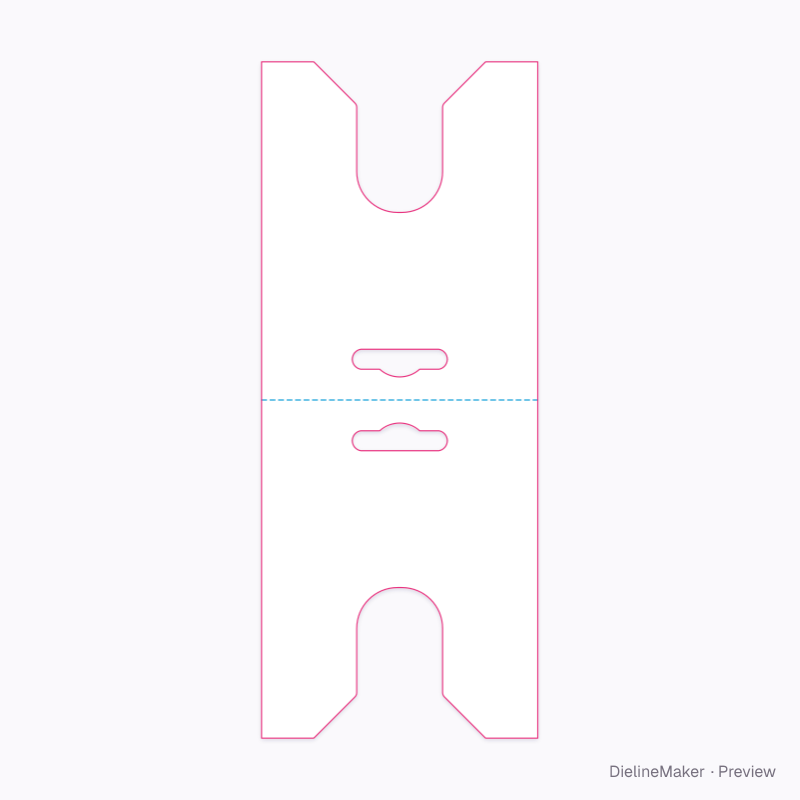

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BOTTLE-SADDLE-CARD-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front ply | 90 × 110 | L × H |
| Back ply | 90 × 110 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Neck diametermm
- Shoulder widthmm
- Neck heightmm
Ready-sized bottle-profile saddle hang card presets
The same structure with sizes, boards and options set for a use.
- Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bottle-profile saddle hang card yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
