Preview image

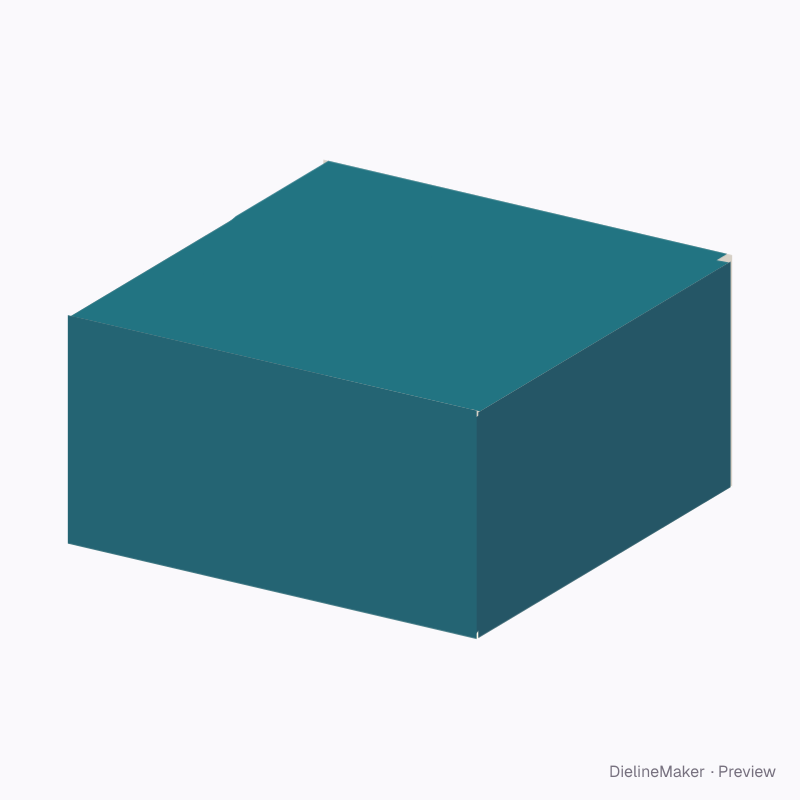

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BUTTERFLY-LOCK-01Cards & tags
Butterfly-lock box dieline
80 × 80 × 40 mm box closed by the butterfly leaves, with glued corner tabs. A ready-sized preset of the butterfly-lock envelope sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 80 × 40 mm
Outside81 × 81 × 42 mm
Flat blank211.6 × 302.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BUTTERFLY-LOCK-01
- Inside size
- Length 80 · Width 80 · Depth 40 mm
- Size range
- Length 40–350 · Width 40–350 · Depth 2–120 mm
- Manufacturing
- 81 × 81 × 41.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.034 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350GD2 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BUTTERFLY-LOCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 81 × 81 | L + 2T × W + 2T |
| Front | 81 × 41.5 | – |
| Inner cover (leaves) | 79 × 68.8 | – |
| Back | 81 × 42 | – |
| Outer cover (slot) | 79 × 68.8 | – |
| Left | 41 × 80 | H + 2T × – |
| Curved dust flap ×2 | 24.3 × 79 | – |
| Right | 41 × 80 | H + 2T × – |
| Corner tab ×4 | 14 × 39.5 | – × H − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Leaf radiusmm
- Leaf gapmm
- Cover depthmm
- Side flap depthmm
The butterfly-lock envelope sleeve family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this butterfly-lock box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
