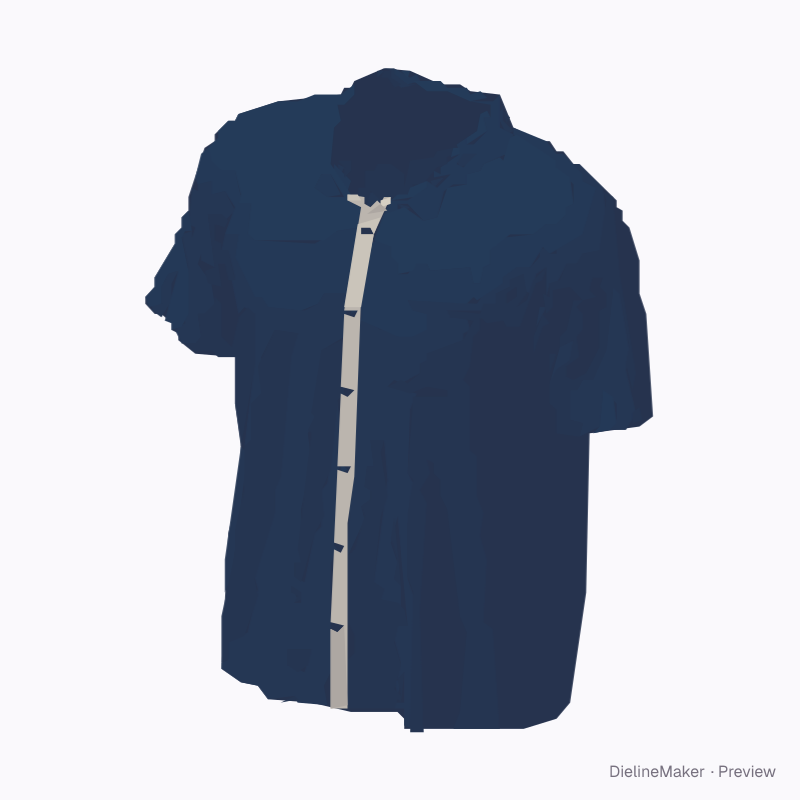

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Short-sleeve work shirt decoration template
An original woven shirt with separate overlapping front panels, a full button placket, pointed collar, curved open hem and open sleeve ends. Long sleeves have sewn cuff bands and cuff buttons; choose short sleeves with hemmed ends. Edit left chest, right chest and rear graphics independently. Exports are supplier decoration references; sewing patterns, grading, embroidery digitizing, all-over print panels and human-worn rigs are separate. A ready-sized preset of the button-front woven shirt — adjust the object dimensions and decoration area to preview your artwork at size.
Object size540 × 740 mm
Artwork area291.6 × 251.6 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Torso width 540 · Garment height 740 mm
- Size range
- Torso width 378–756 · Garment height 518–1036 mm
- Parts
- 3 parts — Left chest decoration, Right chest decoration, Rear decoration
- Artwork area
- 0.103 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Object colour17 options
- Sleeve construction2 options
- Left chest patch pocketon / off
