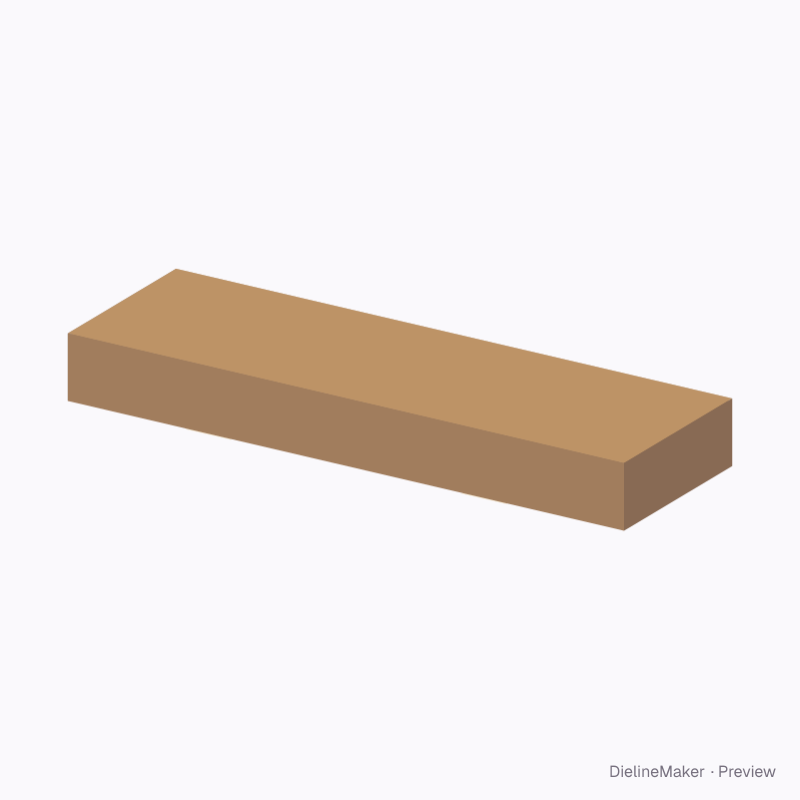

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CATCH-TELESCOPE-01Trays & lids
Telescope box with rolled rims and catches dieline
A long shallow tray with rolled rims and a full-depth telescoping cover held by catches under the base. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside360 × 110 × 40 mm
Outside361 × 111 × 41 mm
Flat blank440 × 222 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CATCH-TELESCOPE-01
- Inside size
- Length 360 · Width 110 · Height 40 mm
- Size range
- Length 100–800 · Width 40–300 · Height 15–150 mm
- Manufacturing
- 360.5 × 110.5 × 40.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Rolled-rim tray, Telescoping cover
- Board area
- 0.173 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

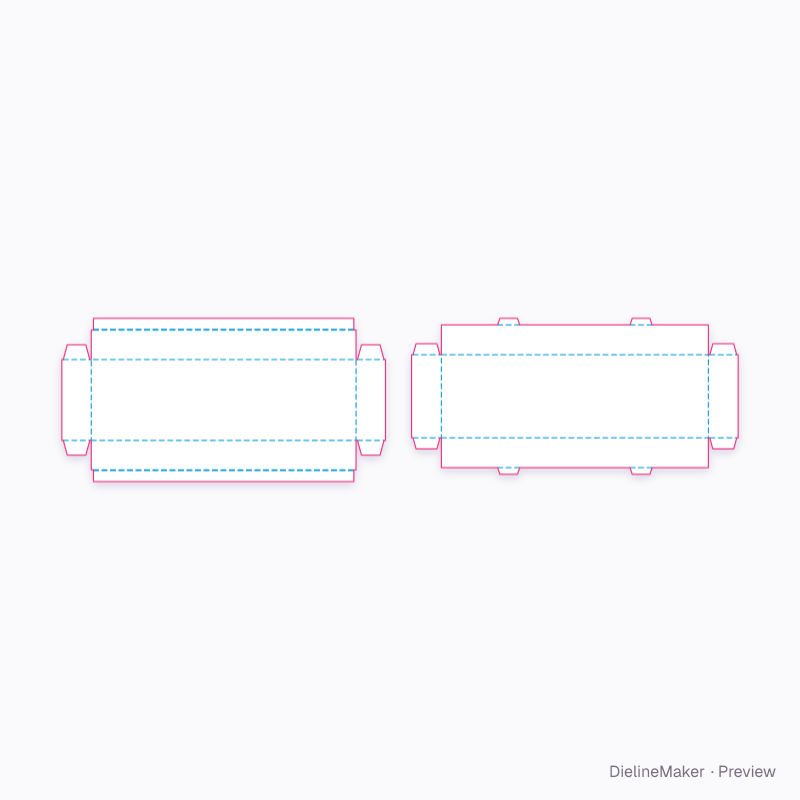

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CATCH-TELESCOPE-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseRolled-rim tray | 360 × 110 | L × W |
| Long wall ×2Rolled-rim tray | 360 × 40 | L × H |
| End wall ×2Rolled-rim tray | 40 × 110 | H × W |
| Rolled rim roll ×2Rolled-rim tray | 354 × 1 | – |
| Glue flap ×4Rolled-rim tray | 36 × 20 | – |
| Rolled rim inner ply ×2Rolled-rim tray | 354 × 15 | – |
| CoverTelescoping cover | 363 × 113 | – |
| Cover wall ×2Telescoping cover | 363 × 40.5 | – × H + T |
| Cover end ×2Telescoping cover | 40.5 × 113 | H + T × – |
| Lateral catch ×4Telescoping cover | 30 × 9 | – |
| Glue flap ×4Telescoping cover | 36.5 × 15 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Cover depthmm
- Catch widthmm
