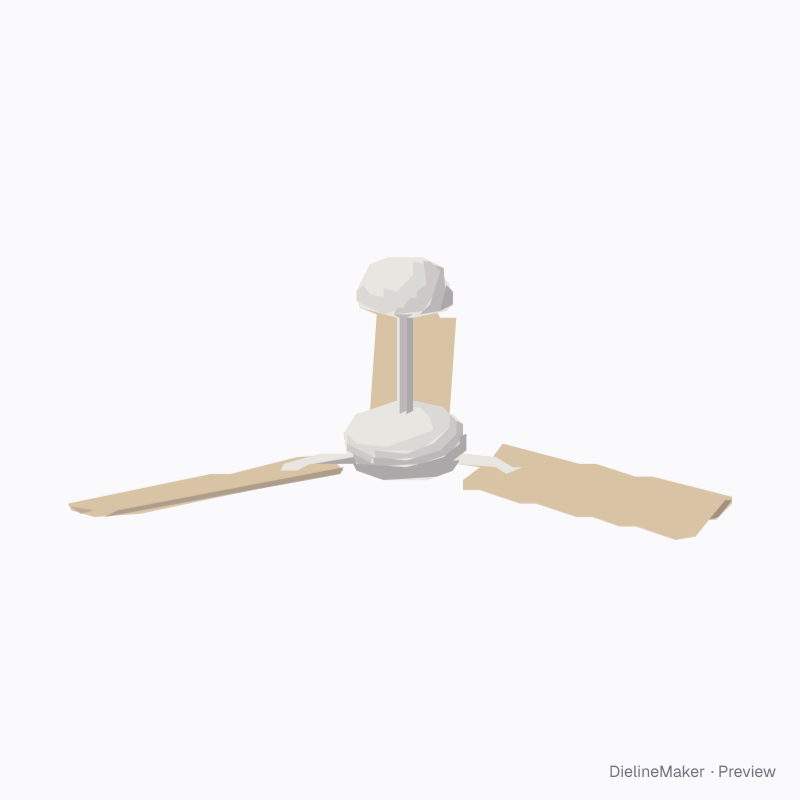

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FAN-01Apparel & merchandise
42 in three-blade ceiling fan decoration template
A ceiling fan with canopy, downrod, motor housing and three to six rigid blades. The undersides of the blades are the print areas, one shared design or one per blade; motor and mounting are shown for context only. A ready-sized preset of the ceiling fan with printable blades — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 1070 × 300 mm
Artwork area399.1 × 120 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-FAN-01
- Object size
- Blade sweep diameter 1070 · Drop (ceiling to blades) 300 mm
- Size range
- Blade sweep diameter 700–1900 · Drop (ceiling to blades) 200–1200 mm
- Parts
- One artwork area
- Artwork area
- 0.047 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Blade countcount
- Blade widthmm
- Blade artwork2 options
- Light kit bowlon / off
- Housing finish4 options
- Blade colour4 options
The ceiling fan with printable blades family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 42 in three-blade ceiling fan yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
