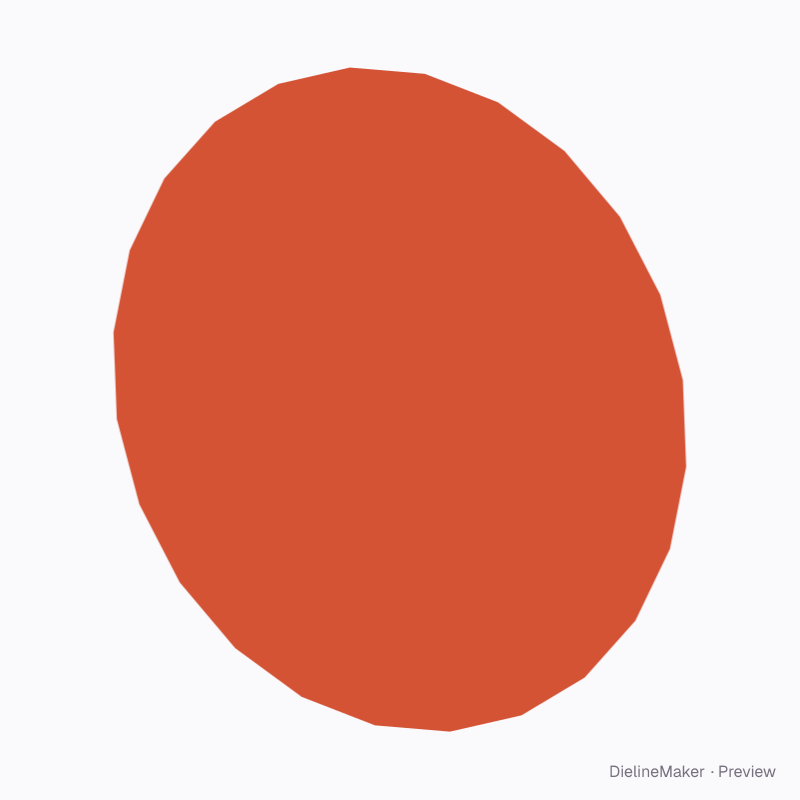

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Coaster dieline
A real board coaster with a round, square or octagonal cut outline and editable printing on both sides. Set the caliper to your coaster stock; the preview has a solid board edge. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 100 × 100 mm
OutsideØ 100 × 100 mm
Flat blank100 × 100 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width / diameter 100 · Height 100 mm
- Size range
- Width / diameter 50–200 · Height 50–200 mm
- Manufacturing
- Ø 100 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.008 m² · about 63 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 1.5 mm · 1.5 mm caliper
- Board options
- Rigid 1.5Rigid 2 mmSBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cut shape3 options

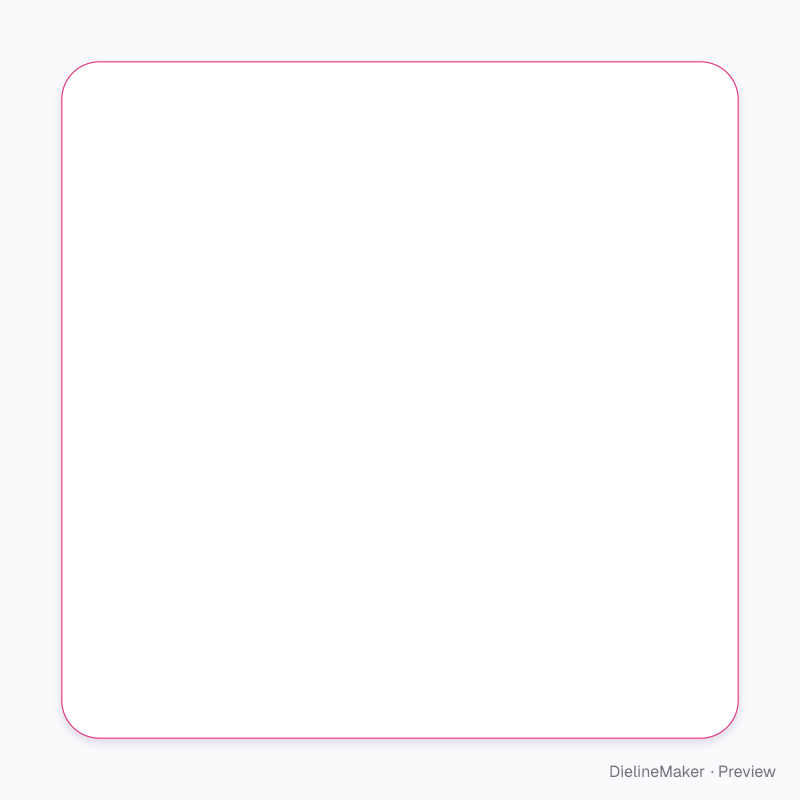

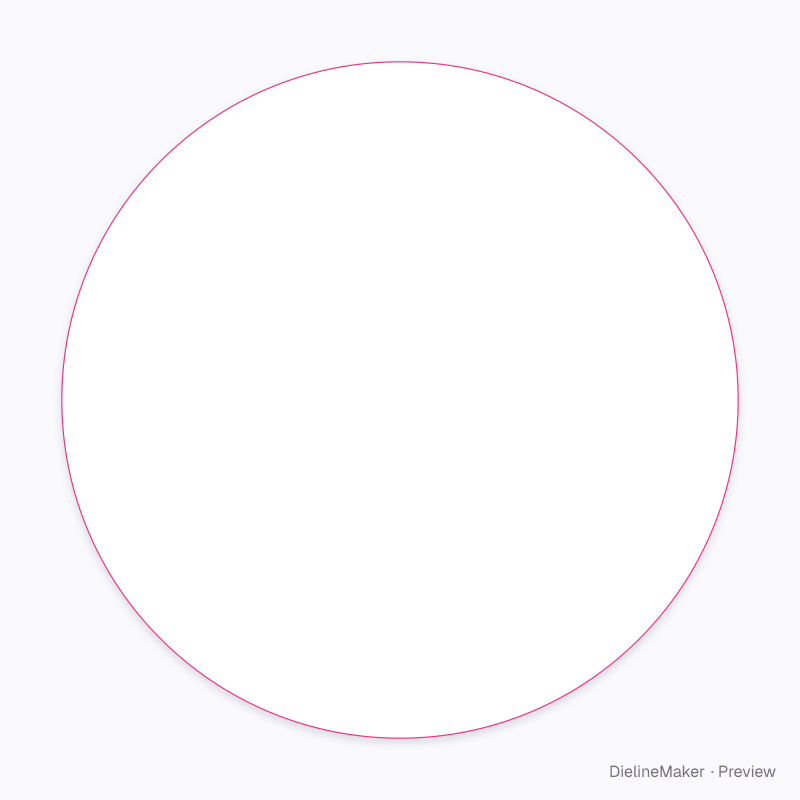

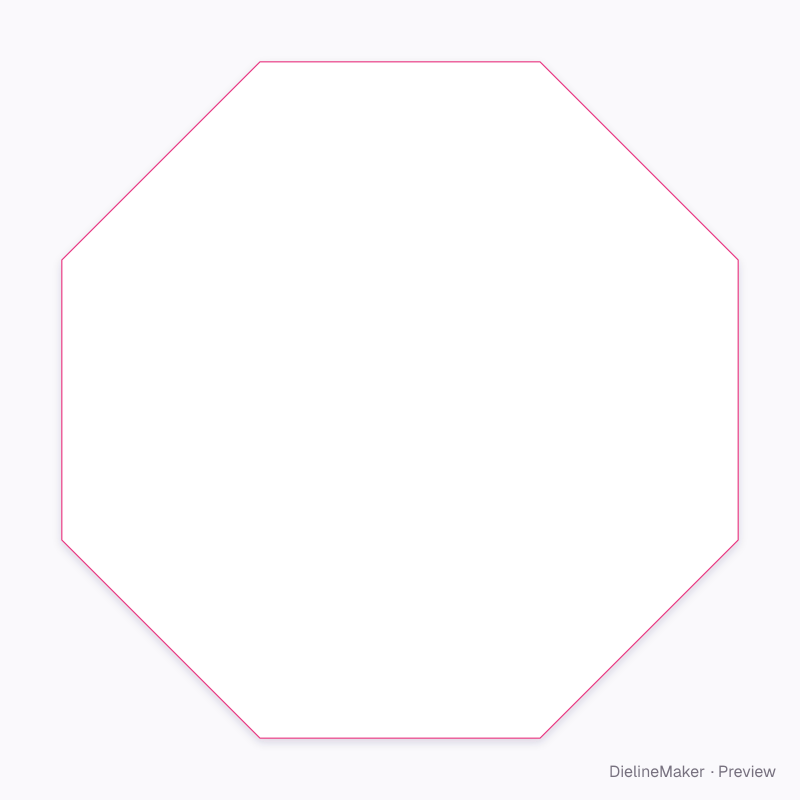

Ready-sized coaster presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

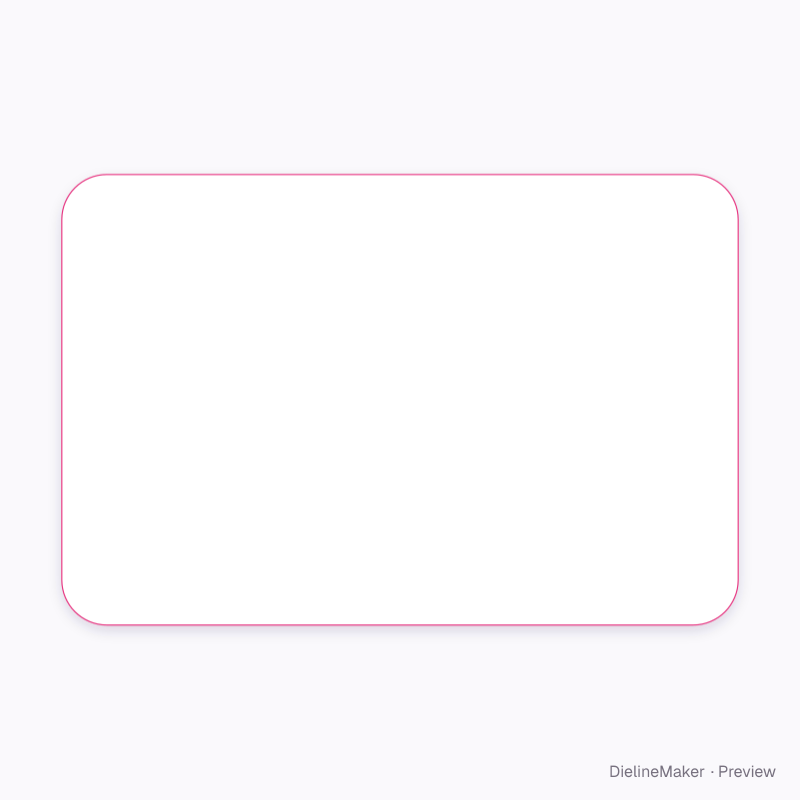

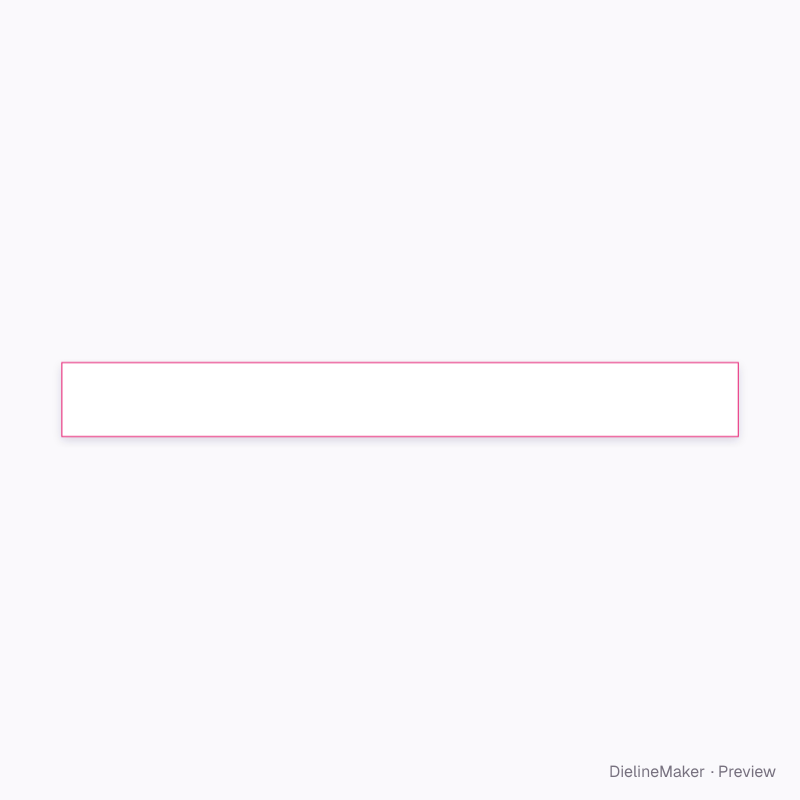

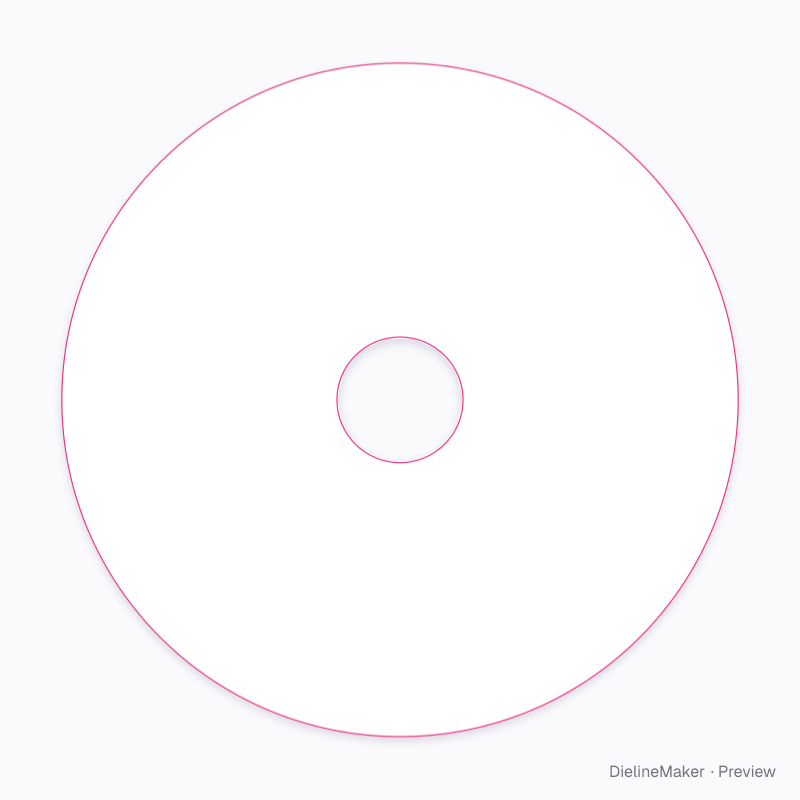

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this coaster yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
