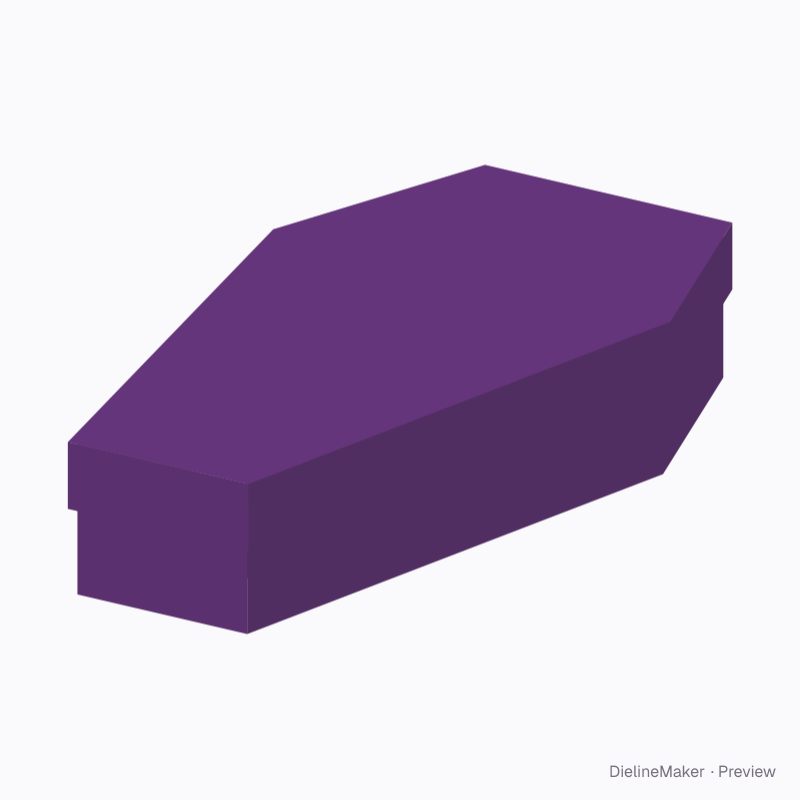

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Coffin lash presentation tray dieline
A six-sided coffin tray and a separate lift-off lid. Every wall folds from its cap and corner tabs glue the sides together. A ready-sized preset of the coffin tray & lid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside115 × 62 × 22 mm
Outside116 × 63 × 23 mm
Flat blank106.5 × 160.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 115 · Width 62 · Depth 22 mm
- Size range
- Length 80–380 · Width 40–220 · Depth 18–100 mm
- Manufacturing
- 115.5 × 62.5 × 22.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Coffin lid, Coffin base tray
- Board area
- 0.022 m² · about 39 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for

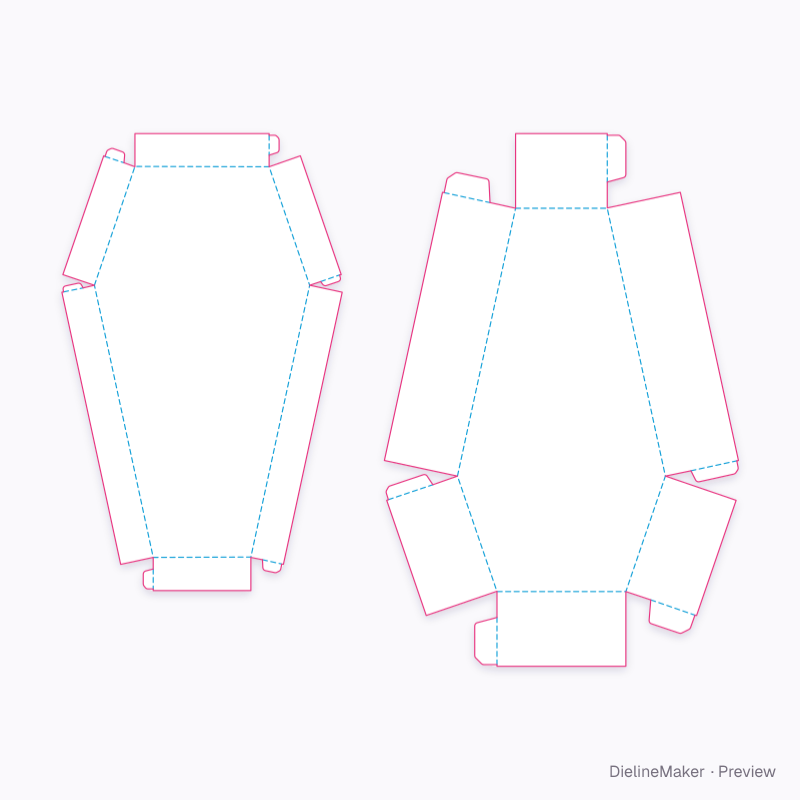

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Coffin lidCoffin lid | 36.1 × 100 | – |
| Coffin wall ×2Coffin lid | 10 × 37.8 | – |
| Corner glue tab ×2Coffin lid | 6 × 3 | – |
| Coffin wallCoffin lid | 40.4 × 10 | – |
| Corner glue tab ×2Coffin lid | 3 × 6 | – |
| Corner glue tab ×2Coffin lid | 6 × 1.7 | – |
| Coffin wall ×2Coffin lid | 10 × 83.8 | – |
| Coffin wallCoffin lid | 29.5 × 10 | – |
| Pose rigCoffin lid | 35 × 100 | – |
| Coffin floorCoffin base tray | 62.5 × 115.5 | – × L + T |
| Coffin wallCoffin base tray | 27.7 × 22.5 | – × H + T |
| Corner glue tabCoffin base tray | 5.5 × 14.1 | – |
| Coffin wall ×2Coffin base tray | 22.5 × 82.6 | H + T × – |
| Corner glue tab ×2Coffin base tray | 14.1 × 3.8 | – |
| Coffin wall ×2Coffin base tray | 22.5 × 36.7 | H + T × – |
| Corner glue tabCoffin base tray | 14.1 × 6.7 | – |
3 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lid depthmm

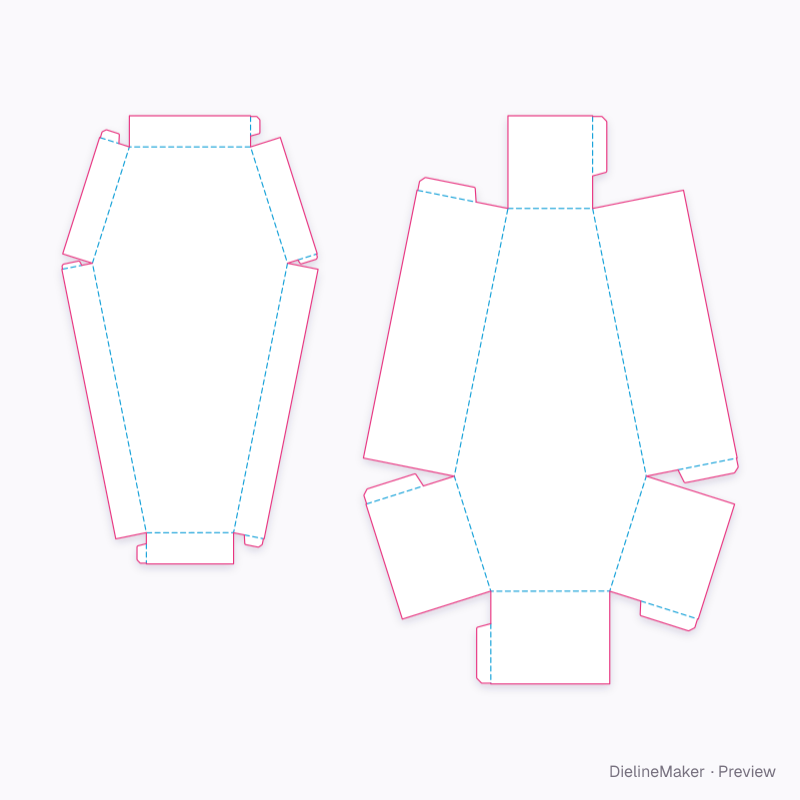

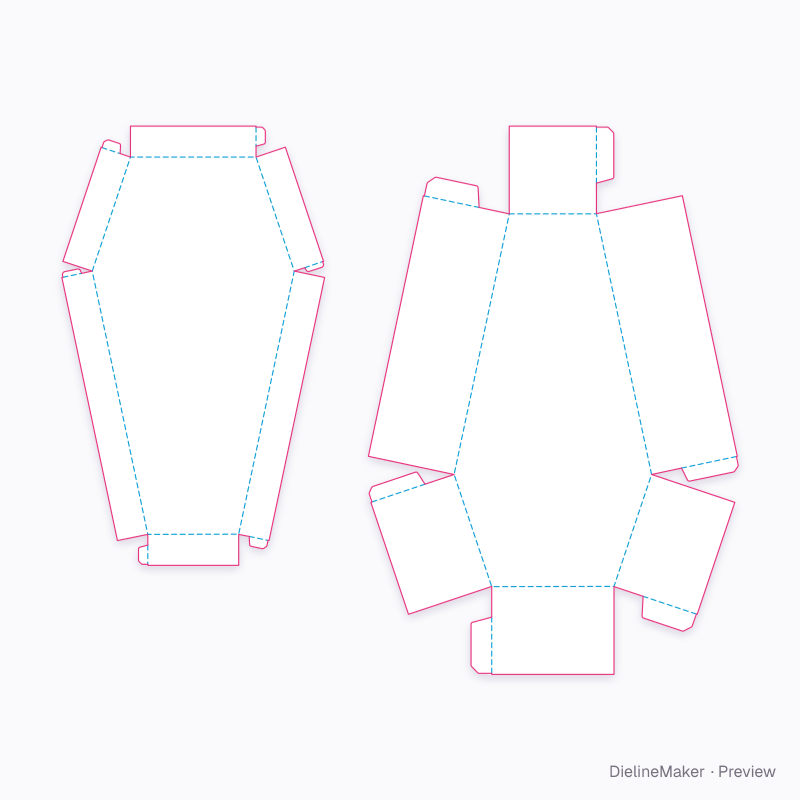

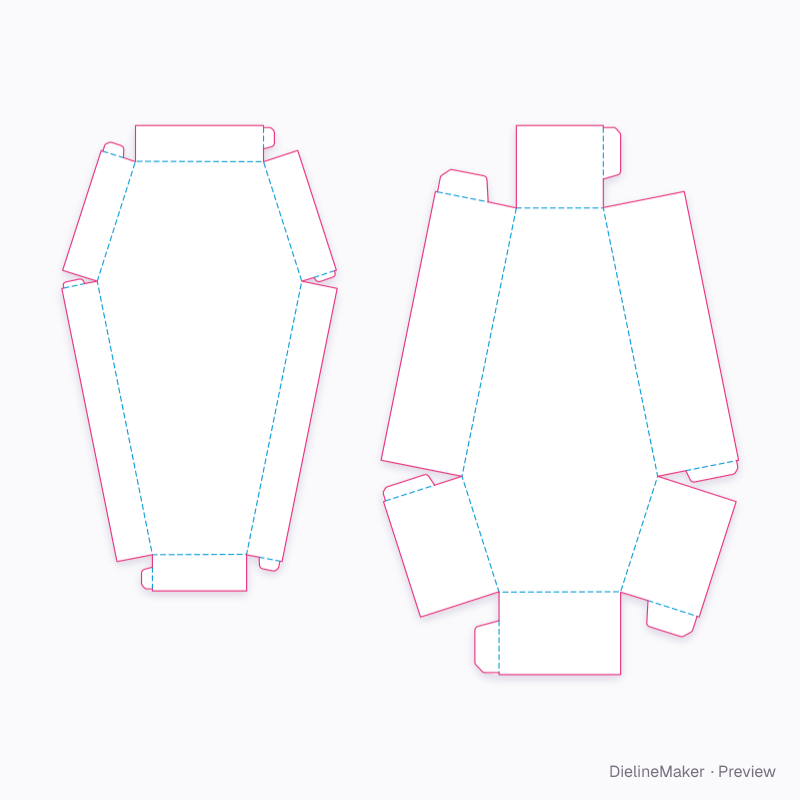

The coffin tray & lid family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this coffin lash presentation tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
