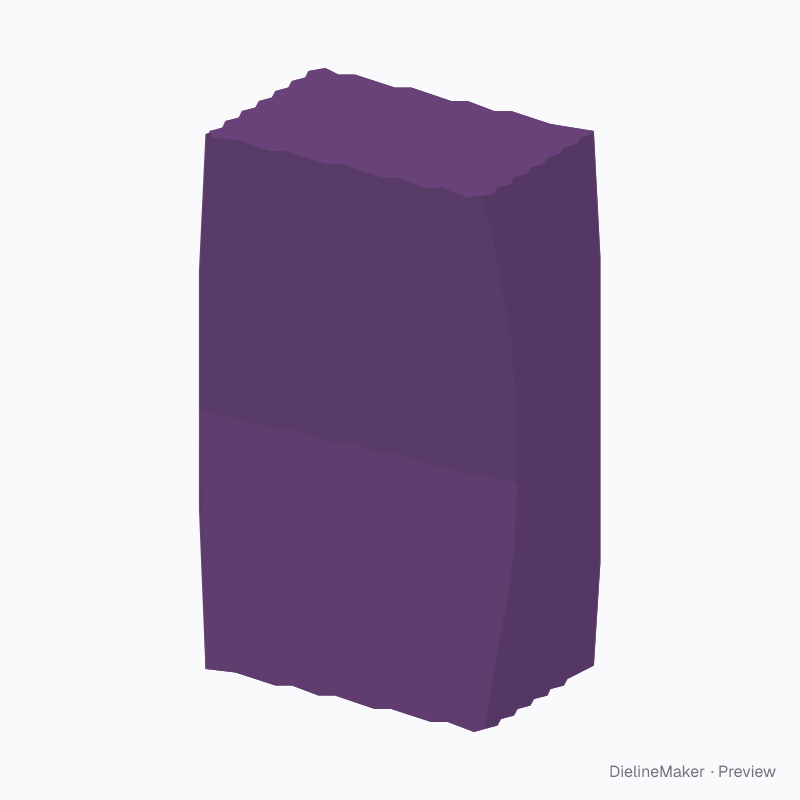

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTuck end

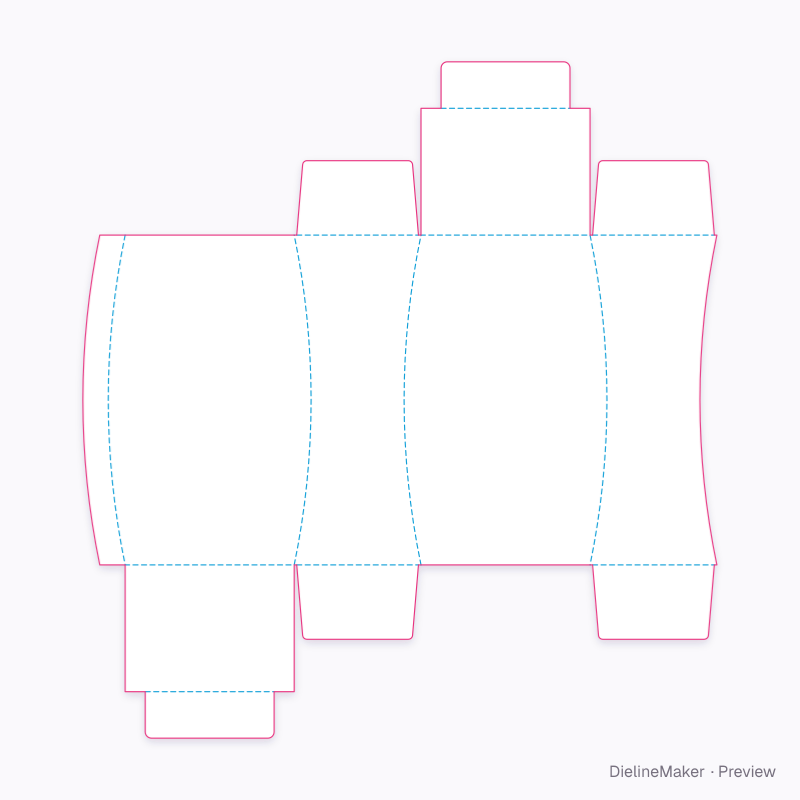

Curved-score tuck carton dieline
A one-piece tuck carton with four genuine circular bowed vertical scores. Positive bow narrows the front at mid-height and deepens the sides; negative bow reverses it. Developed wall height accounts for the bend. Width and depth describe the end footprint, not usable mid-body clearance. Prototype curved creases in the intended board before production. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside65 × 42 × 115 mm
Outside65 × 42 × 115 mm
Flat blank231 × 235.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- End width 65 · End depth 42 · Formed height 115 mm
- Size range
- End width 40–180 · End depth 25–120 · Formed height 65–280 mm
- Manufacturing
- 65 × 42 × 115 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.038 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 18 pt
- Good for

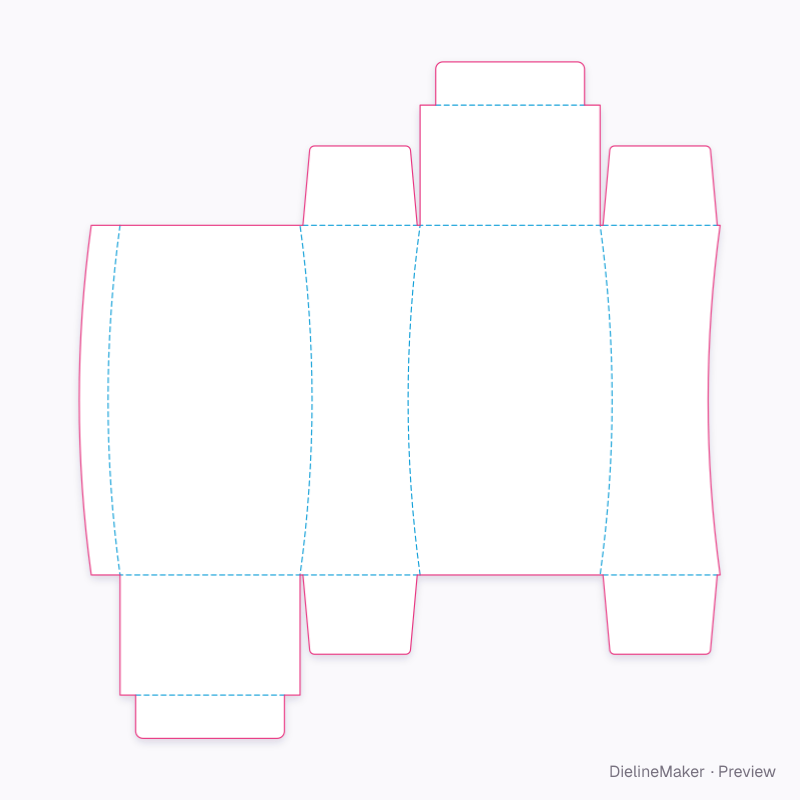

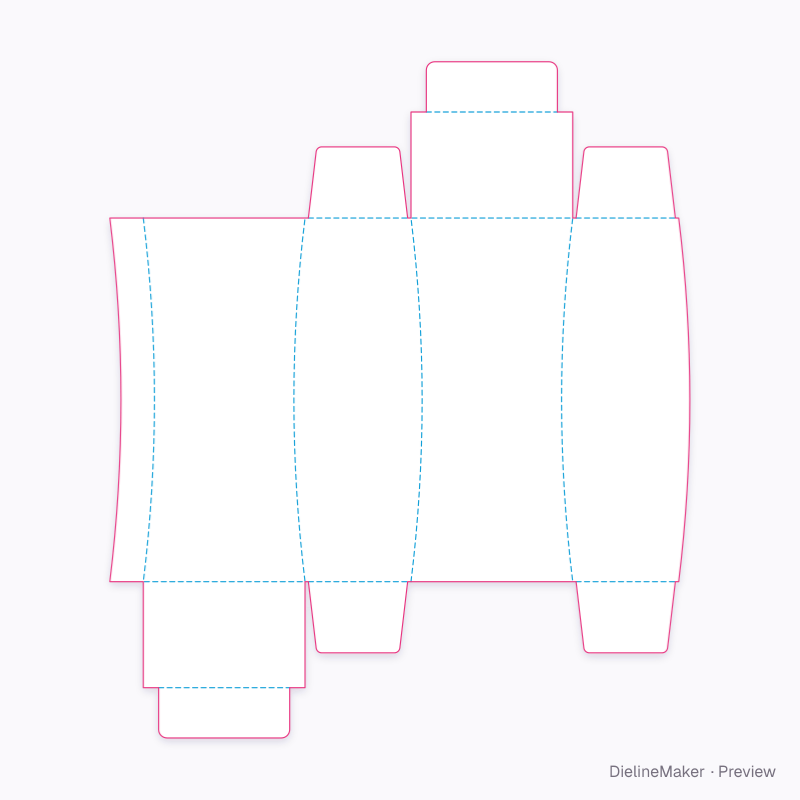

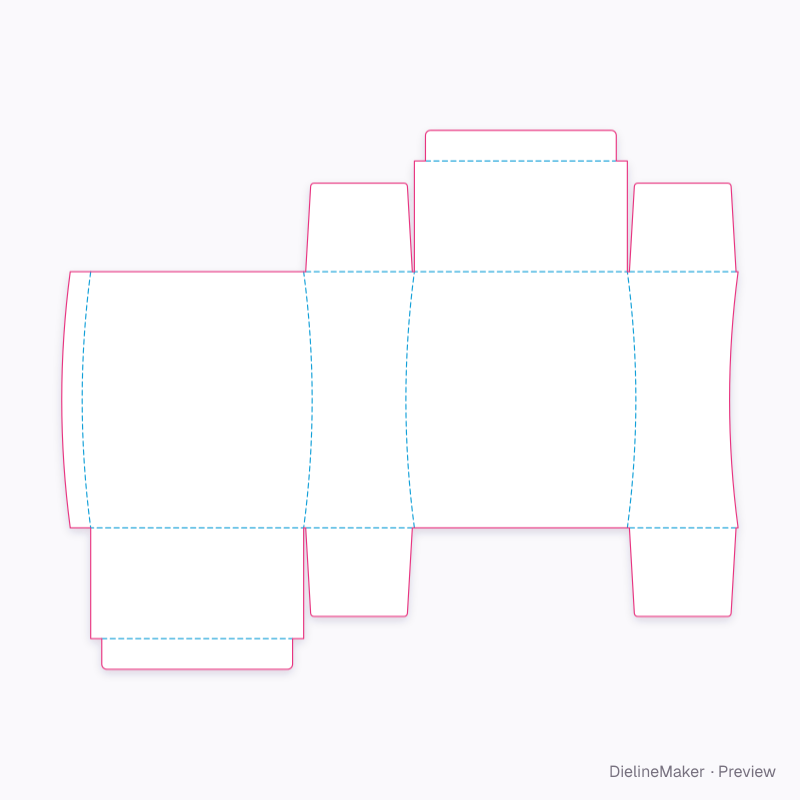

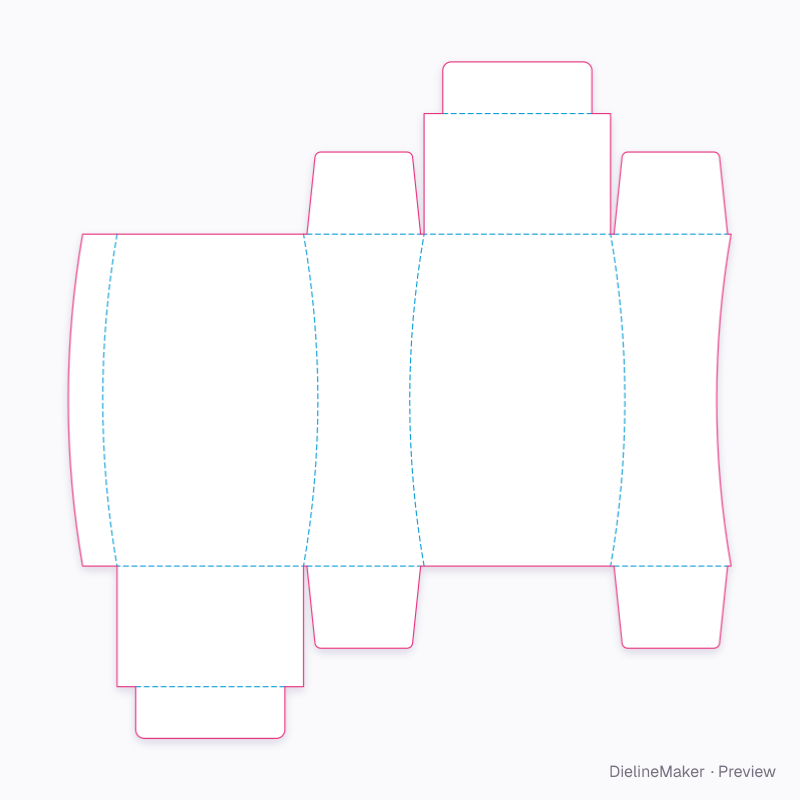

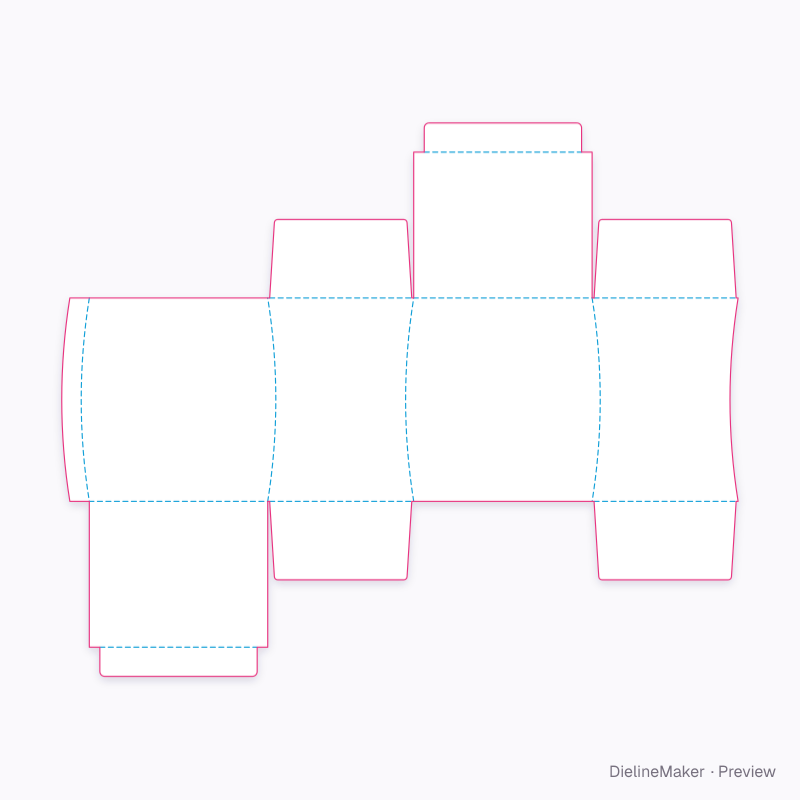

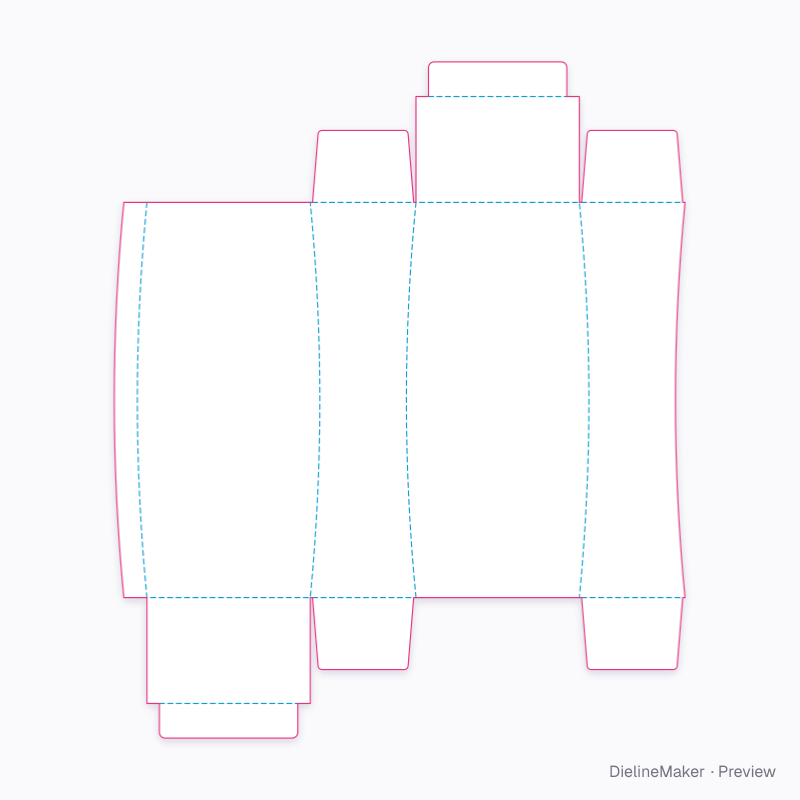

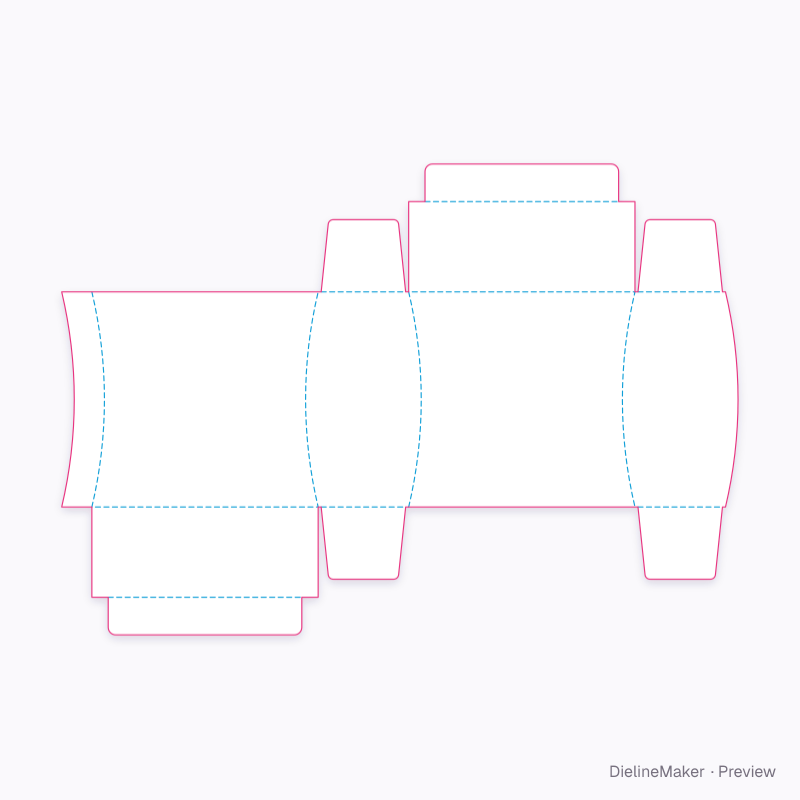

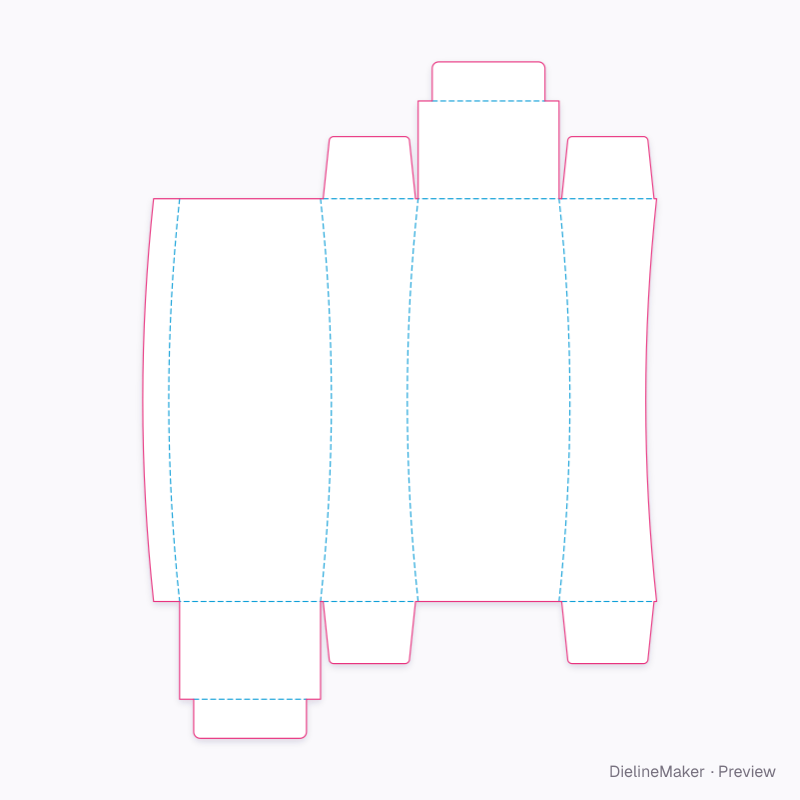

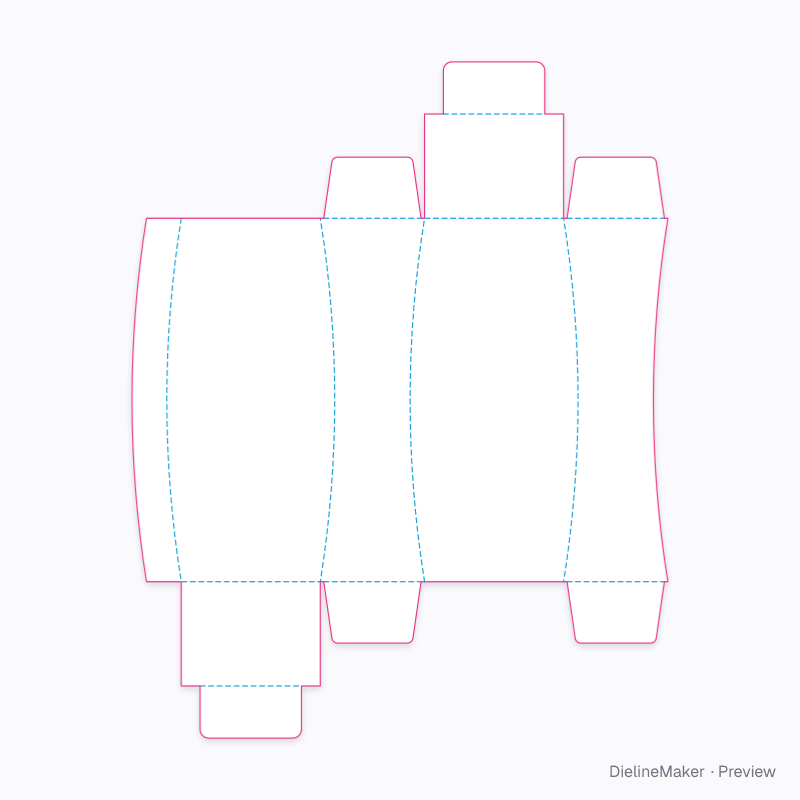

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| front curved wall | 75 × 115.6 | – |
| right curved wall | 42 × 115.6 | W × – |
| back curved wall | 75 × 115.6 | – |
| left curved wall | 42 × 115.6 | W × – |
| Curved side seam | 17 × 115.6 | – |
| Top closure | 65 × 42 | L × W |
| Top tuck tongue | 52 × 18 | – |
| Bottom closure | 65 × 42 | L × W |
| Bottom tuck tongue | 52 × 18 | – |
| Dust flap ×4 | 39.6 × 28.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Mid-height score bowmm
- Tuck tonguemm
- Glue flapmm
