Navy vented road helmet decoration template

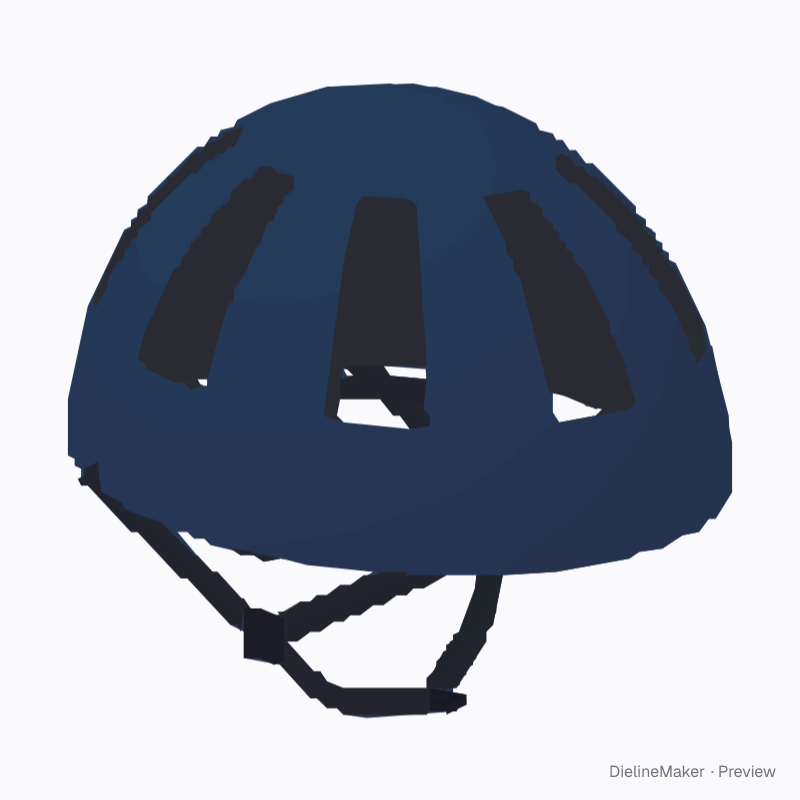

An original oval cycling shell with true ventilation openings continuing through its foam liner, an open lower head cavity, two Y strap guides, a chin buckle and rear retention band/dial. Independent left/right shell branding stays below the vents. Export supplier artwork placement references. These presentation dimensions are not shoe sizing, footwear lasts, production moulds, protective safety engineering, certifications or garment cutting patterns. A ready-sized preset of the vented cycling helmet — adjust the object dimensions and decoration area to preview your artwork at size.
Object size270 × 220 × 150 mm
Artwork area86.4 × 19.5 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Shell length 270 · Shell width 220 · Shell height 150 mm
- Size range
- Shell length 202.5–337.5 · Shell width 176–264 · Shell height 120–180 mm
- Parts
- 2 parts — Left shell branding, Right shell branding
- Artwork area
- 0.003 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 2 options; the template and 3D preview follow each change.
- Shell colour6 options
- Chin harness6 options
