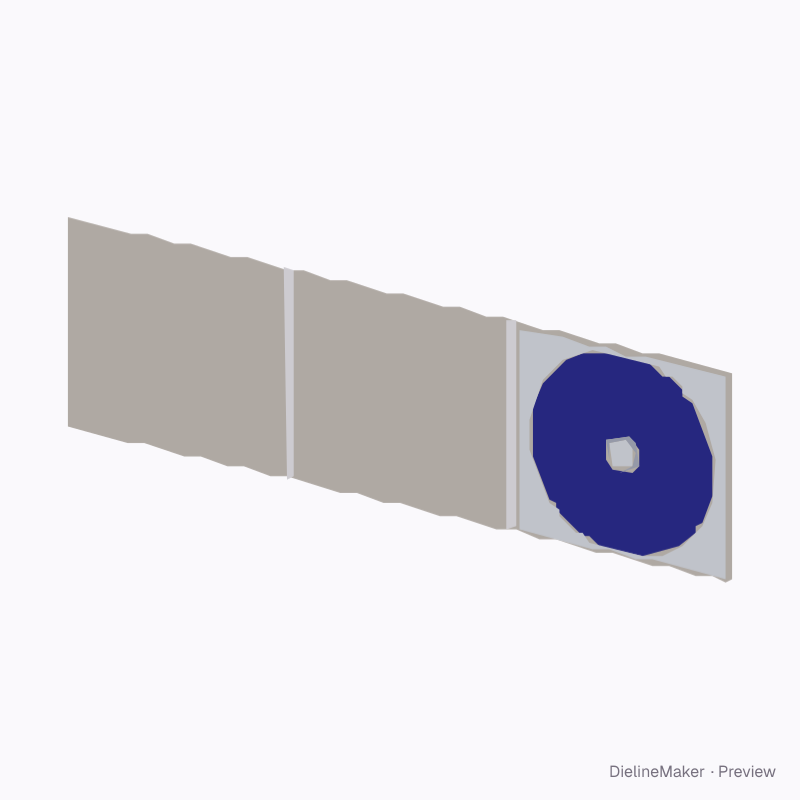

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DIGIPAK-01Cards & tags
CD digipak, 6 panels dieline
A folding printed board (4 or 6 panels: 2 or 3 leaves joined by spines) with one or two clear trays glued inside, plus the printed disc. The board is one sheet printed outside and inside; trays are supplied parts. A ready-sized preset of the digipak + disc — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside139.5 × 6.4 × 124.5 mm
Outside139.5 × 6.4 × 124.5 mm
Flat blank431.3 × 124.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DIGIPAK-01
- Inside size
- Panel width 139.5 · Spine width 6.4 · Panel height 124.5 mm
- Size range
- Panel width 120–145 · Spine width 3–15 · Panel height 118–195 mm
- Manufacturing
- 139.5 × 6.4 × 124.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Digipak board (outside; inside on reverse), Disc face · printable annulus
- Board area
- 0.065 m² · about 7 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DIGIPAK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Inner flapDigipak board (outside; inside on reverse) | 139.5 × 124.5 | L × H |
| Spine ×2Digipak board (outside; inside on reverse) | 6.4 × 124.5 | W × H |
| Back coverDigipak board (outside; inside on reverse) | 139.5 × 124.5 | L × H |
| Front coverDigipak board (outside; inside on reverse) | 139.5 × 124.5 | L × H |
| Disc face · printable annulusDisc face · printable annulus | 118 × 118 | – |
