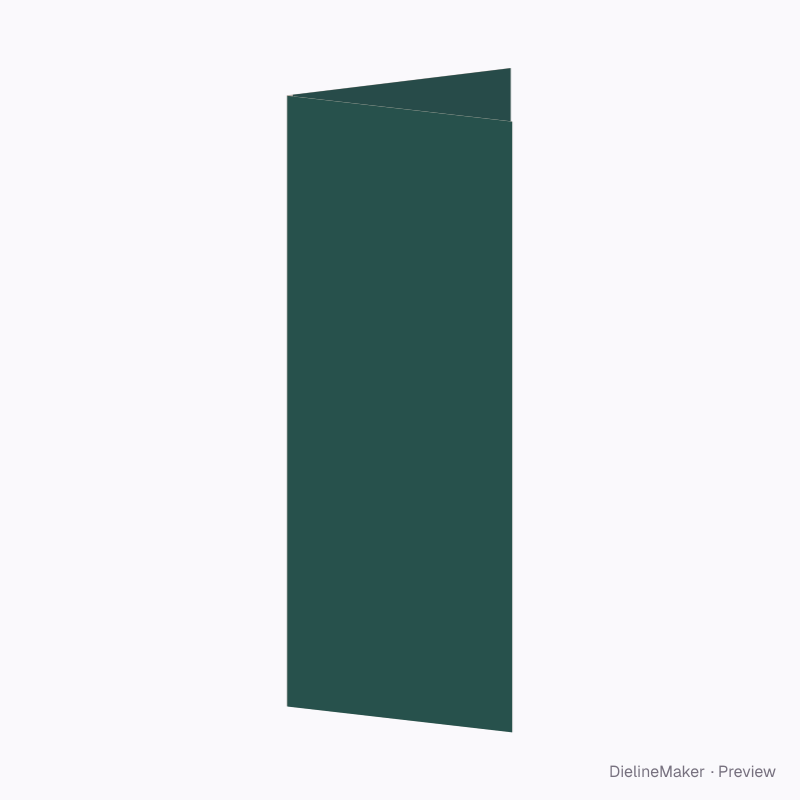

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
A4 double-gate brochure dieline
Two shortened outer gates close onto the two centre panels, then the centre score folds the gated piece in half. Four panels and eight editable print faces are on one sheet, with three actual scores. Confirm allowance, grain and paper stock with the printer. A ready-sized preset of the double-gate fold brochure — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside75.3 × 210 mm
Outside75.3 × 210 mm
Flat blank297 × 210 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Finished main-panel width 75.3 · Finished height 210 mm
- Size range
- Finished main-panel width 45–250 · Finished height 70–450 mm
- Manufacturing
- 75.3 × 210 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.062 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350SBS 18 pt
- Good for

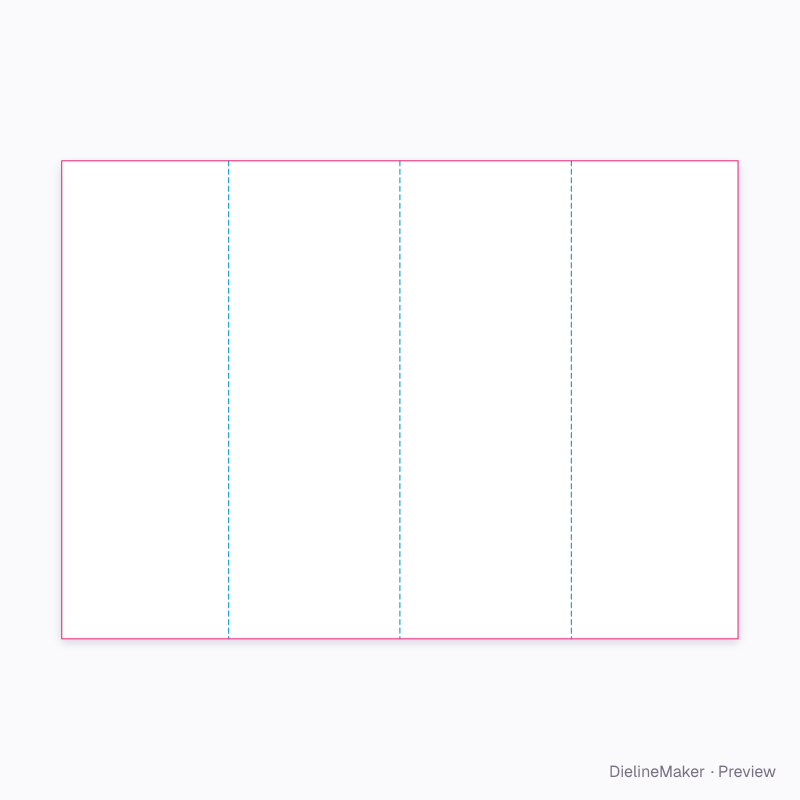

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Right centre / front cover | 75.3 × 210 | L × H |
| Left centre / back cover | 75.3 × 210 | L × H |
| Left fold-in gate | 73.3 × 210 | – × H |
| Right fold-in gate | 73.3 × 210 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Inner-panel fold allowancemm
- Final fold opening°

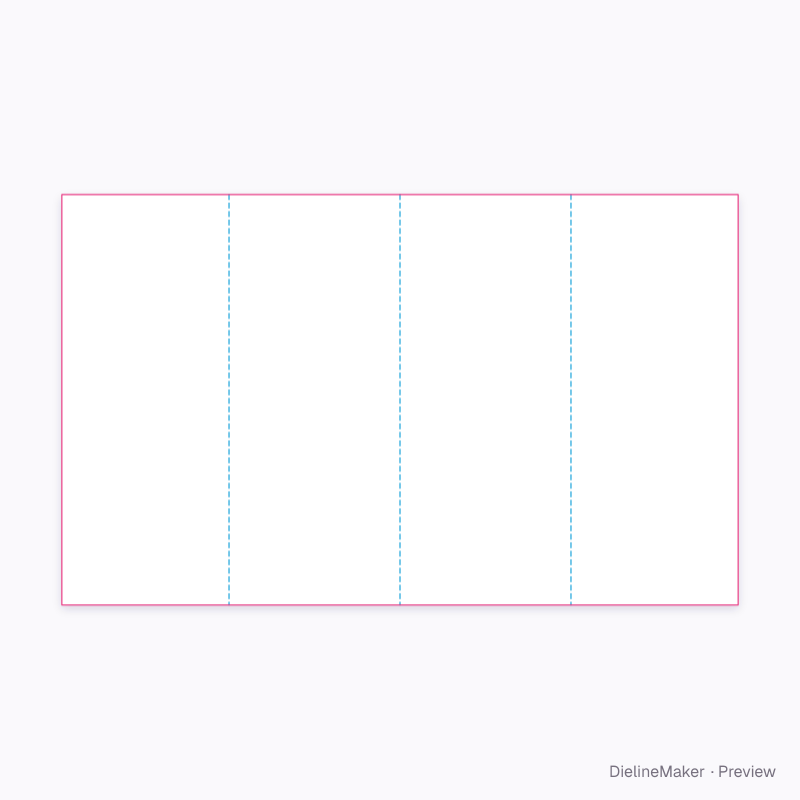

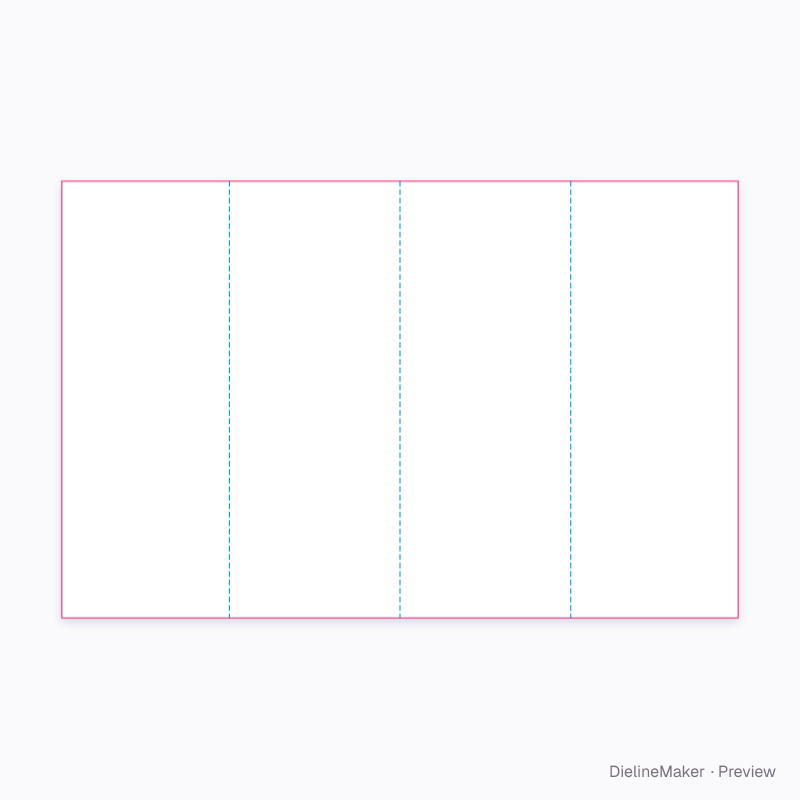

The double-gate fold brochure family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset

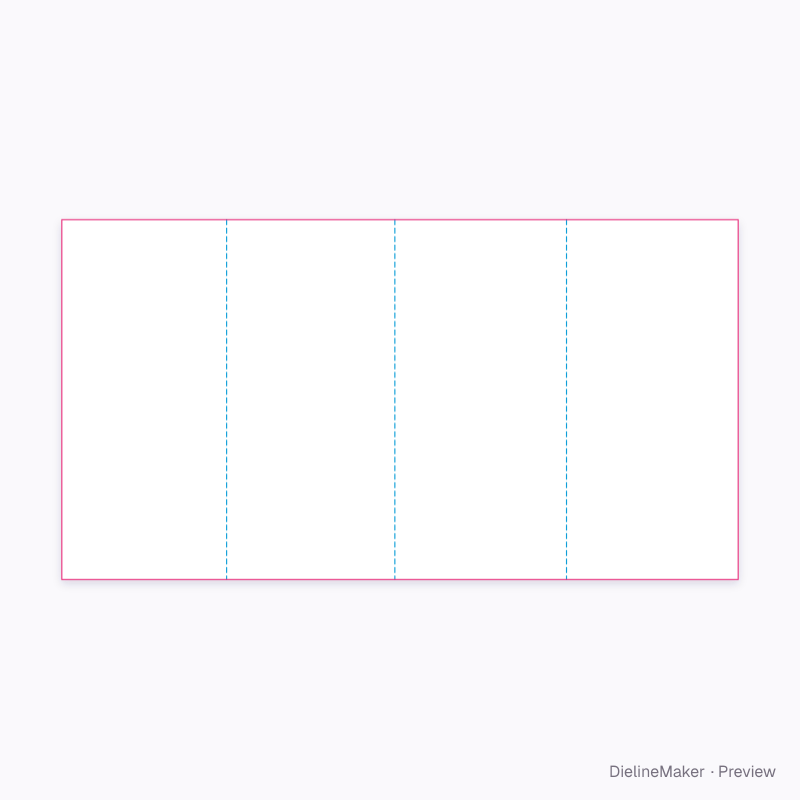

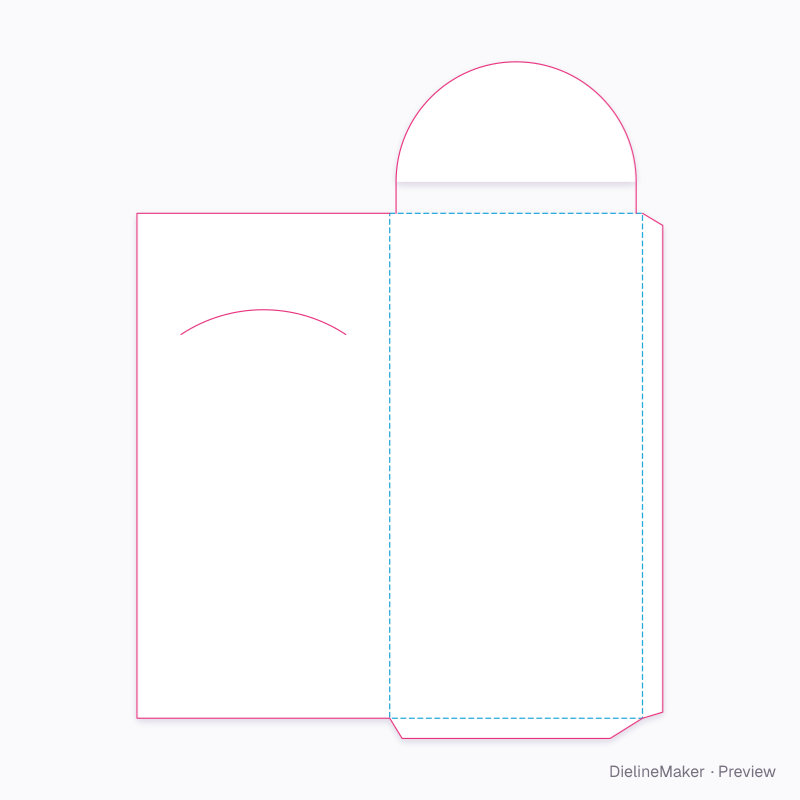

Similar structures
