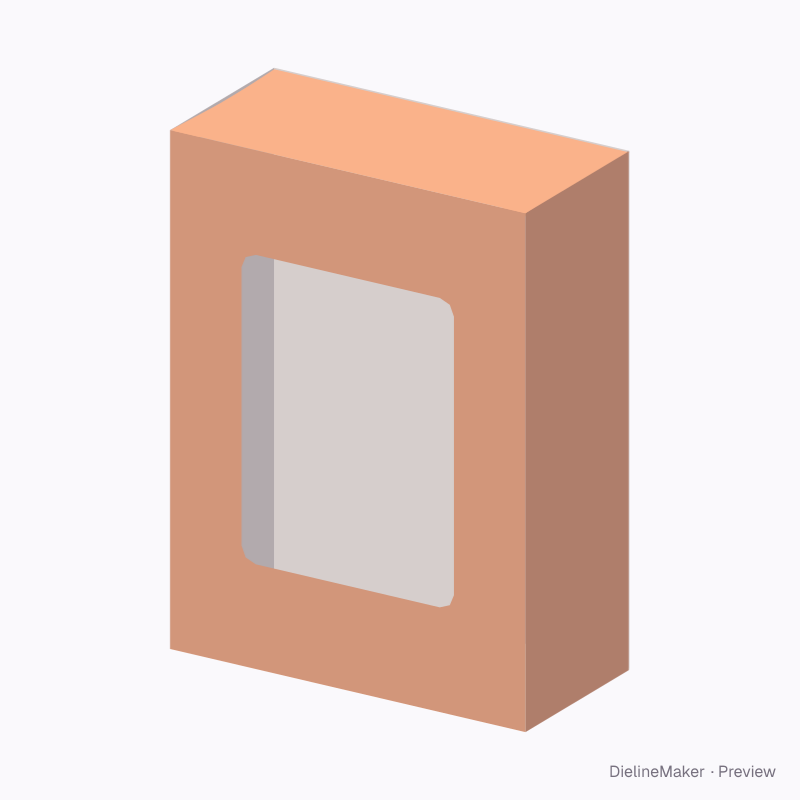

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DOUBLE-SNAP-CARTON-01Tuck end
Double snap-lock carton with front window dieline
A glued paperboard tube closed at both ends by hand-folded 1-2-3 snap locks, with an optional front window. A ready-sized preset of the carton with snap locks at both ends — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 70 × 200 mm
Outside151.2 × 71.2 × 202.4 mm
Flat blank453.8 × 292.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DOUBLE-SNAP-CARTON-01
- Inside size
- Length 150 · Width 70 · Height 200 mm
- Size range
- Length 40–400 · Width 25–300 · Height 40–500 mm
- Manufacturing
- 150.6 × 70.6 × 201.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.120 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350GD2 350F-fluteE-flute WSBS 18 pt
- Good for

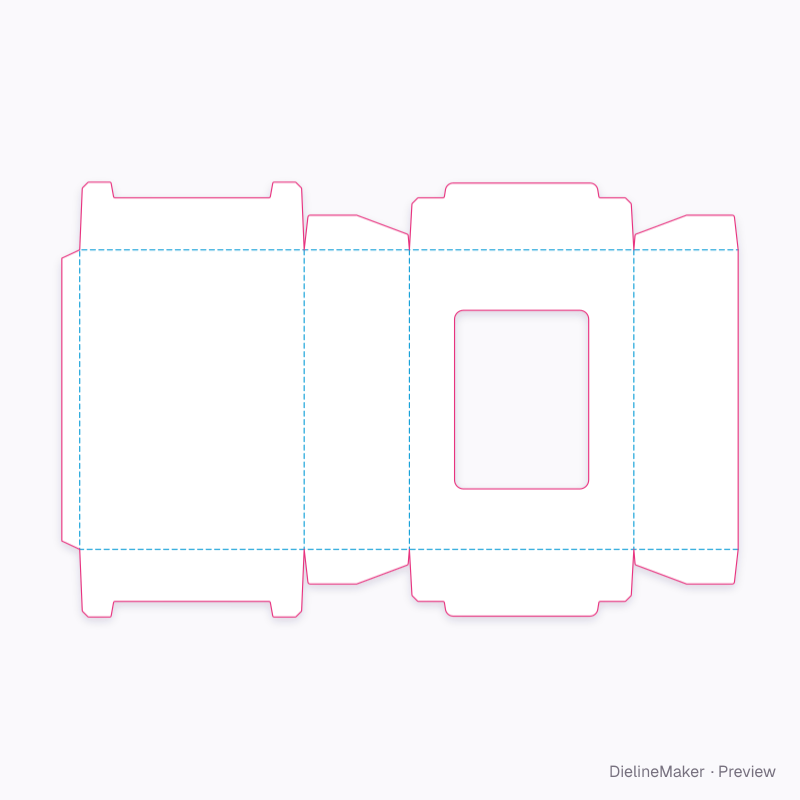

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DOUBLE-SNAP-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 150.6 × 201.2 | L + T × H + 2T |
| Left side | 70.6 × 201.2 | W + T × H + 2T |
| Back | 150.6 × 201.2 | L + T × H + 2T |
| Right side | 70 × 201.2 | W × H + 2T |
| Glue flap | 12 × 201.2 | – × H + 2T |
| Snap end ×2 | 70.6 × 23.3 | W + T × – |
| Snap end ×2 | 70 × 23.3 | W × – |
| Snap bottom | 150.6 × 45.5 | L + T × – |
| Snap tuck ×2 | 150.6 × 44.9 | L + T × – |
| Snap top | 150.6 × 45.5 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Tongue widthmm
- Tongue heightmm
- Front windowon / off
- Window widthmm
- Window heightmm

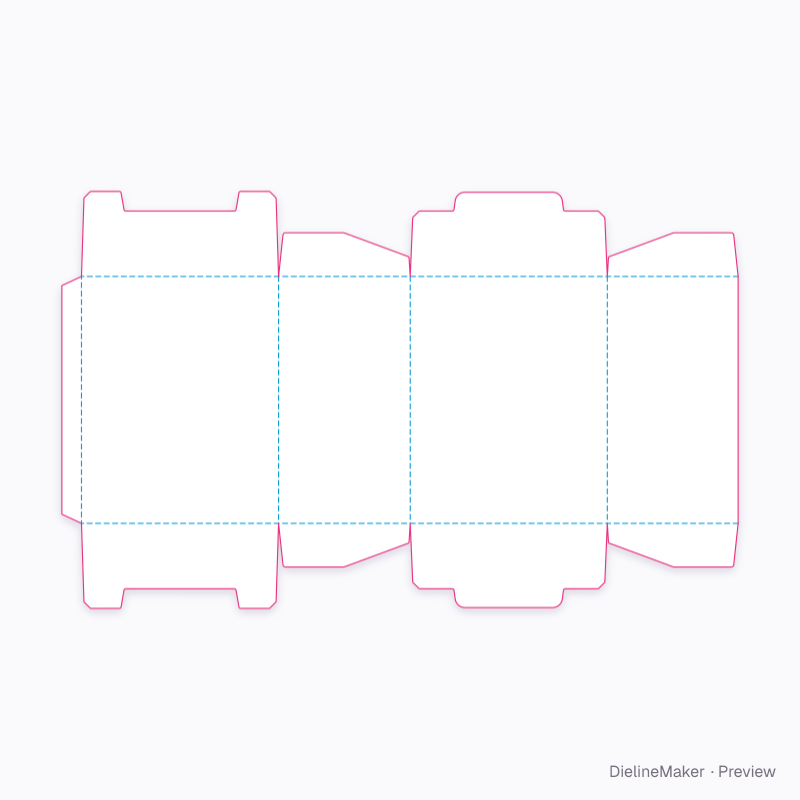

The carton with snap locks at both ends family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this double snap-lock carton with front window yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
