A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Cylindrical duffle bag decoration template
A horizontal fabric barrel with round end panels, top zipper, paired carry handles and an optional shoulder strap. Edit both long sides and both end decorations. Exports are decoration areas for a supplied bag, not sewing patterns. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size500 × 260 × 260 mm
Artwork area250 × 124.8 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Bag length 500 · Bag depth 260 · Body height 260 mm
- Size range
- Bag length 300–750 · Bag depth 140–400 · Body height 140–400 mm
- Parts
- 4 parts — Long front decoration, Long reverse decoration, Left end decoration, Right end decoration
- Artwork area
- 0.082 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Bag colour4 options
- Shoulder strapon / off
- Body shape2 options

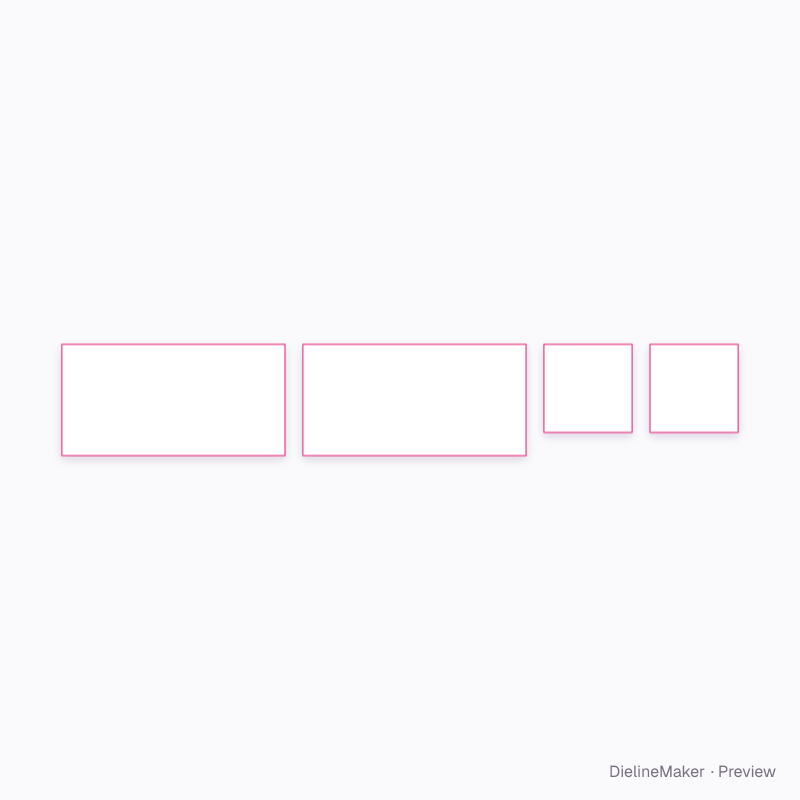

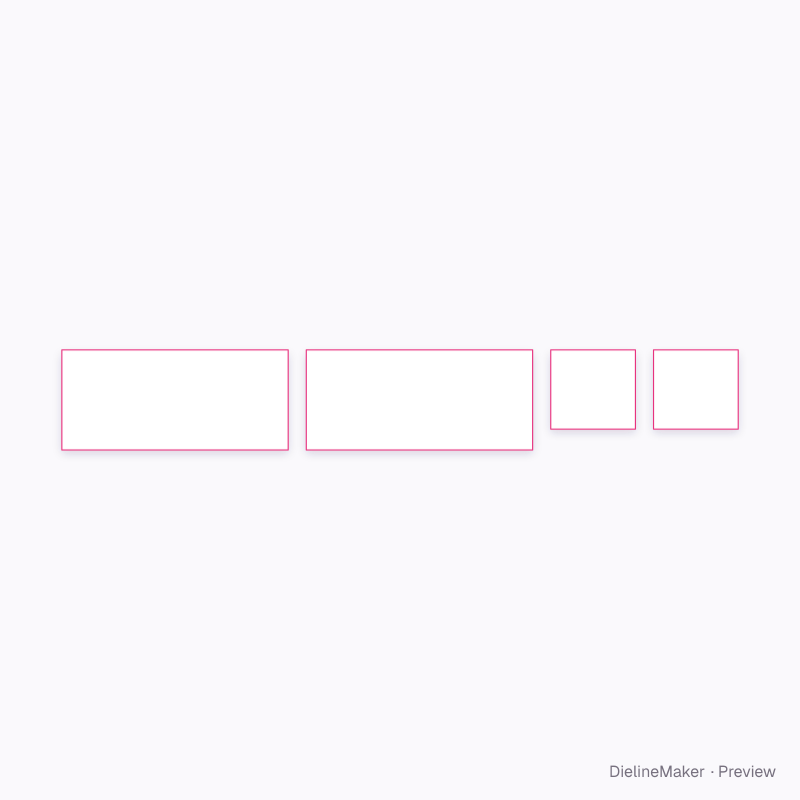

Ready-sized cylindrical duffle bag presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cylindrical duffle bag yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
