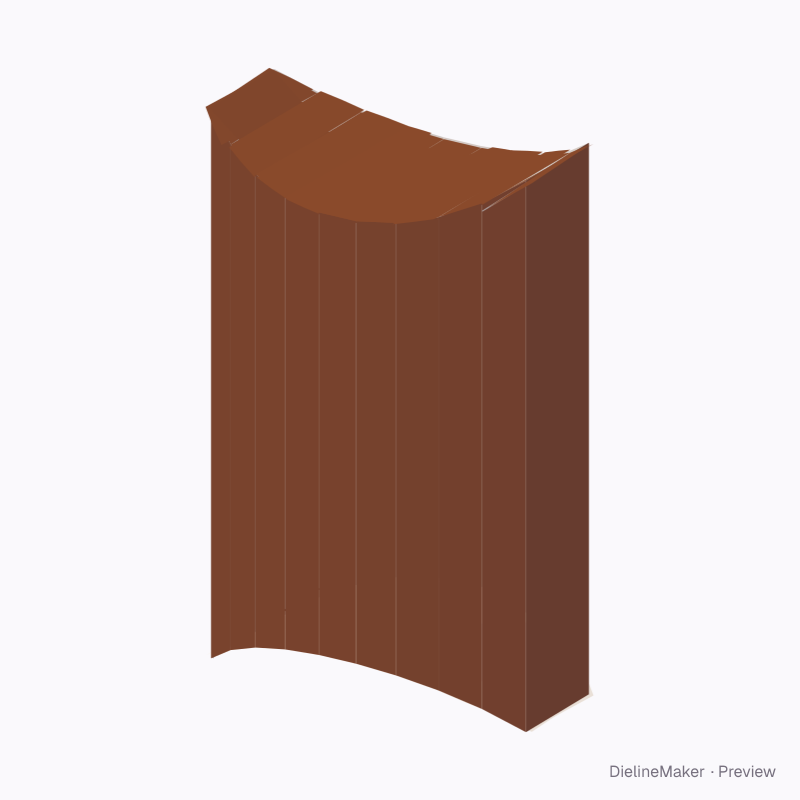

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SIDE-WALL-PILLOW-01Shapes
Pillow pack with side walls 150×100×60 dieline
Deep pillow pack whose flat side walls hold a boxed gift, candles or a soap set. A ready-sized preset of the pillow pack with side walls or tear strip — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 100 × 60 mm
Outside151 × 100 × 61 mm
Flat blank275 × 240 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SIDE-WALL-PILLOW-01
- Inside size
- Length 150 · Face width 100 · Depth 60 mm
- Size range
- Length 50–400 · Face width 30–300 · Depth 6–150 mm
- Manufacturing
- 150.5 × 100 × 60.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.061 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350SBS 18 pt
- Good for

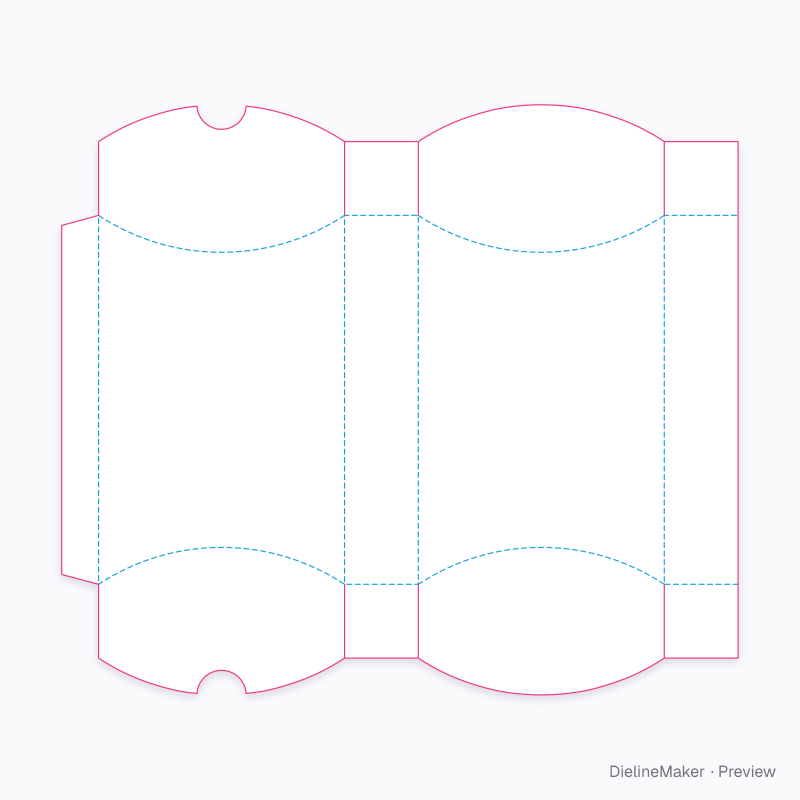

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SIDE-WALL-PILLOW-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front strip 1 | 11.1 × 137.5 | – |
| Front top end flap ×2 | 12.8 × 37 | – |
| Front bottom end flap ×2 | 12.8 × 37 | – |
| Front strip 2 | 11.1 × 128.7 | – |
| Front top end flap ×2 | 11.9 × 47.7 | – |
| Front bottom end flap ×2 | 11.9 × 47.7 | – |
| Front strip 3 | 11.1 × 123.1 | – |
| Front top end flap ×2 | 11.5 × 55.2 | – |
| Front bottom end flap ×2 | 11.5 × 55.2 | – |
| Front strip 4 | 11.1 × 120.3 | – |
| Front top end flap ×2 | 11.2 × 58.3 | – |
| Front bottom end flap ×2 | 11.2 × 58.3 | – |
| Front strip 5 | 11.1 × 120.3 | W / 9 × L |
| Front top end flap | 11.1 × 51.5 | – |
| Front bottom end flap | 11.1 × 51.5 | – |
| Front strip 6 | 11.1 × 120.3 | – |
25 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Construction2 options
- Side wallmm
- End flap depthmm
- Thumb notch radiusmm
- Tear strip widthmm

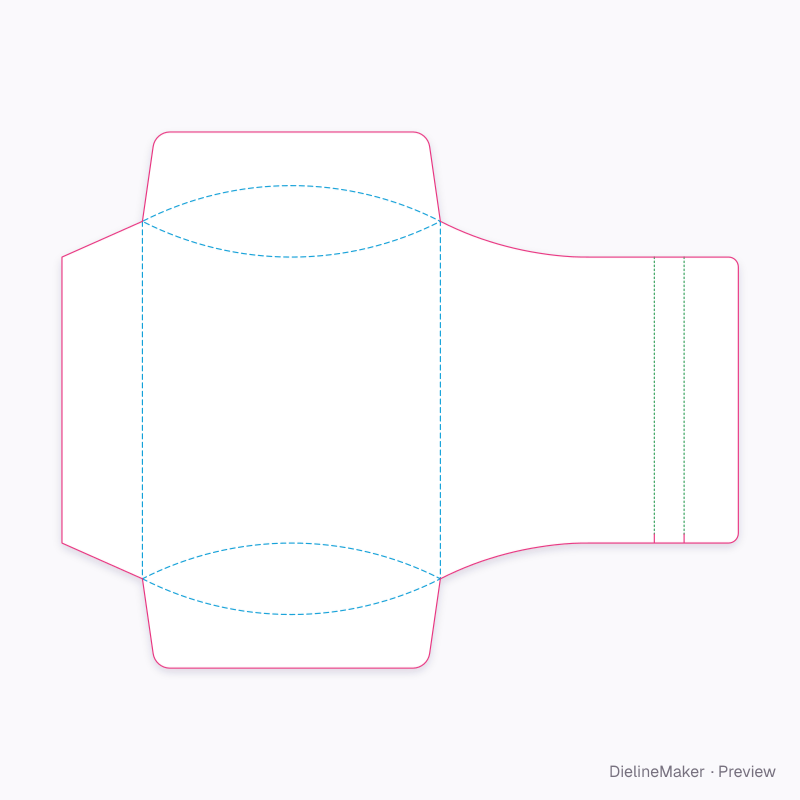

The pillow pack with side walls or tear strip family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pillow pack with side walls 150×100×60 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
