DM-CARTON-DISPLAY-TUCK-01Tuck end
Tuck carton usable as display dieline

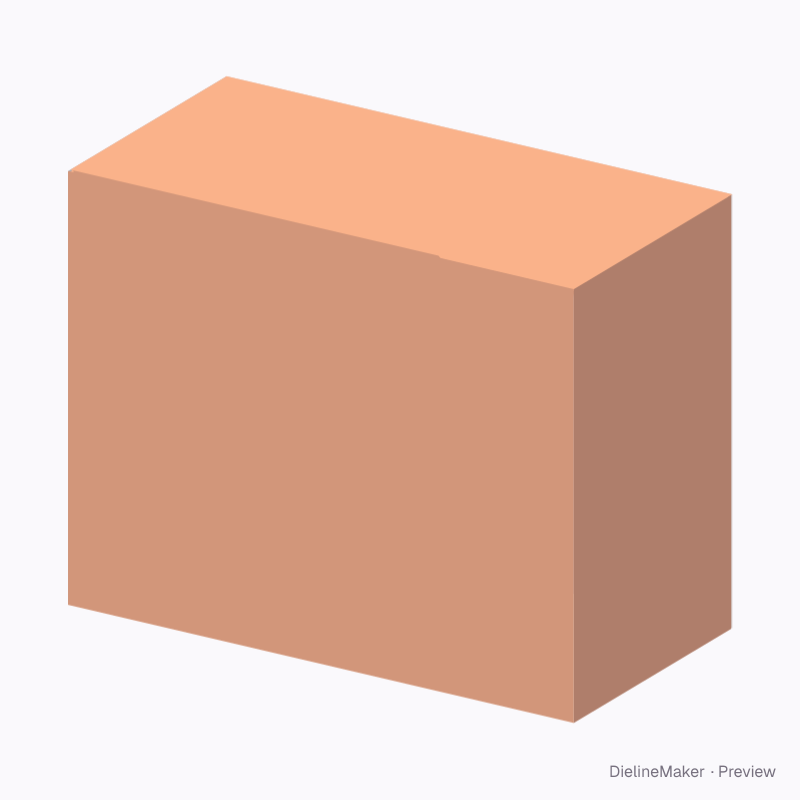

The lid stands up as an arched header and the front tears away to a display lip. Auxiliary feature reference: ECMA X35; product code is DM-CARTON-DISPLAY-TUCK-01. A ready-sized preset of the carton with opening device — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 70 × 110 mm
Outside141 × 71 × 111 mm
Flat blank433.5 × 279.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CARTON-DISPLAY-TUCK-01
- Inside size
- Length 140 · Width 70 · Height 110 mm
- Size range
- Length 40–400 · Width 20–250 · Height 40–450 mm
- Manufacturing
- 140.5 × 70.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.082 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteSBS 18 pt
- Good for

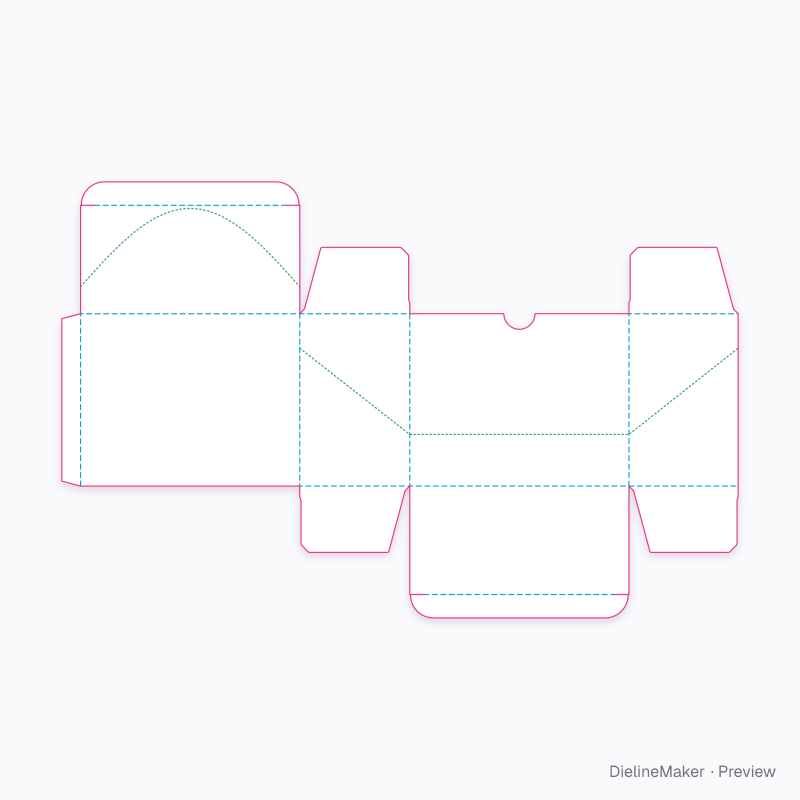

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CARTON-DISPLAY-TUCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 140.5 × 110.5 | L + T × H + T |
| Left side | 70.5 × 110.5 | W + T × H + T |
| Back | 140.5 × 110.5 | L + T × H + T |
| Right side | 70 × 110.5 | W × H + T |
| Glue flap | 12 × 110.5 | – × H + T |
| Top closure | 140.5 × 69.5 | L + T × W − T |
| Top tuck | 139.5 × 15 | L − T × – |
| Top dust flap | 70.5 × 42.5 | W + T × – |
| Top dust flap | 70 × 42.5 | W × – |
| Bottom closure | 140.5 × 69.5 | L + T × W − T |
| Bottom tuck | 139.5 × 15 | L − T × – |
| Bottom dust flap | 70.5 × 42.5 | W + T × – |
| Bottom dust flap | 70 × 42.5 | W × – |
