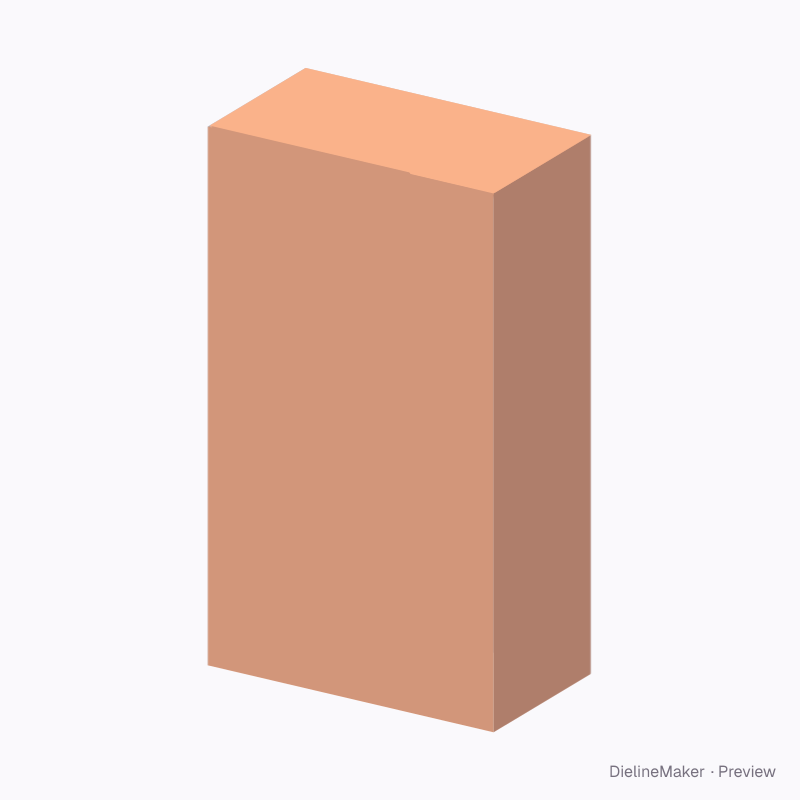

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-POUR-CORNER-01Tuck end
Corner pour-spout carton dieline
The top corner folds out on perforated diagonals as a pouring spout. Auxiliary feature reference: ECMA X46; product code is DM-POUR-CORNER-01. A ready-sized preset of the carton with pour opening — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 60 × 190 mm
Outside111 × 61 × 191 mm
Flat blank353.5 × 339.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-POUR-CORNER-01
- Inside size
- Length 110 · Width 60 · Height 190 mm
- Size range
- Length 40–400 · Width 25–250 · Height 60–450 mm
- Manufacturing
- 110.5 × 60.5 × 190.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.091 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-POUR-CORNER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 110.5 × 190.5 | L + T × H + T |
| Left side | 60.5 × 190.5 | W + T × H + T |
| Back | 110.5 × 190.5 | L + T × H + T |
| Right side | 60 × 190.5 | W × H + T |
| Glue flap | 12 × 190.5 | – × H + T |
| Top closure | 110.5 × 59.5 | L + T × W − T |
| Top tuck | 109.5 × 15 | L − T × – |
| Top dust flap | 60.5 × 37.5 | W + T × – |
| Top dust flap | 60 × 37.5 | W × – |
| Bottom closure | 110.5 × 59.5 | L + T × W − T |
| Bottom tuck | 109.5 × 15 | L − T × – |
| Bottom dust flap | 60.5 × 37.5 | W + T × – |
| Bottom dust flap | 60 × 37.5 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Device8 options
- Opening sizemm
- Tuck depthmm
The carton with pour opening family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this corner pour-spout carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
