A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CANOPY-01Apparel & merchandise

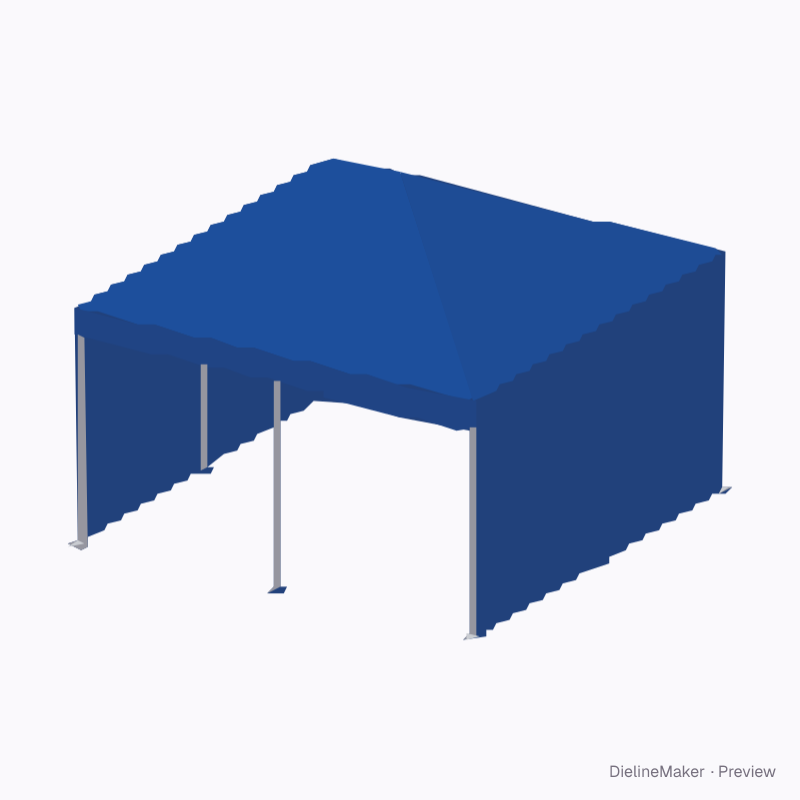

Pop-up tent 13 x 13 ft with side walls decoration template
A folding-frame event canopy with single-peak, double-peak or flat roof, printed valances and optional back, side and half walls. A ready-sized preset of the exhibition pop-up canopy tent — adjust the object dimensions and decoration area to preview your artwork at size.
Object size4000 × 4000 × 2200 mm
Artwork area4000 × 2200 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-CANOPY-01
- Object size
- Width 4000 · Depth 4000 · Eave height 2200 mm
- Size range
- Width 1500–8000 · Depth 1500–8000 · Eave height 1800–3000 mm
- Parts
- 11 parts — Roof front, Roof back, Roof left, Roof right, Front valance, Back valance, Left valance, Right valance, Back wall (inside face), Left wall, Right wall
- Artwork area
- 48.289 m²
- Good for

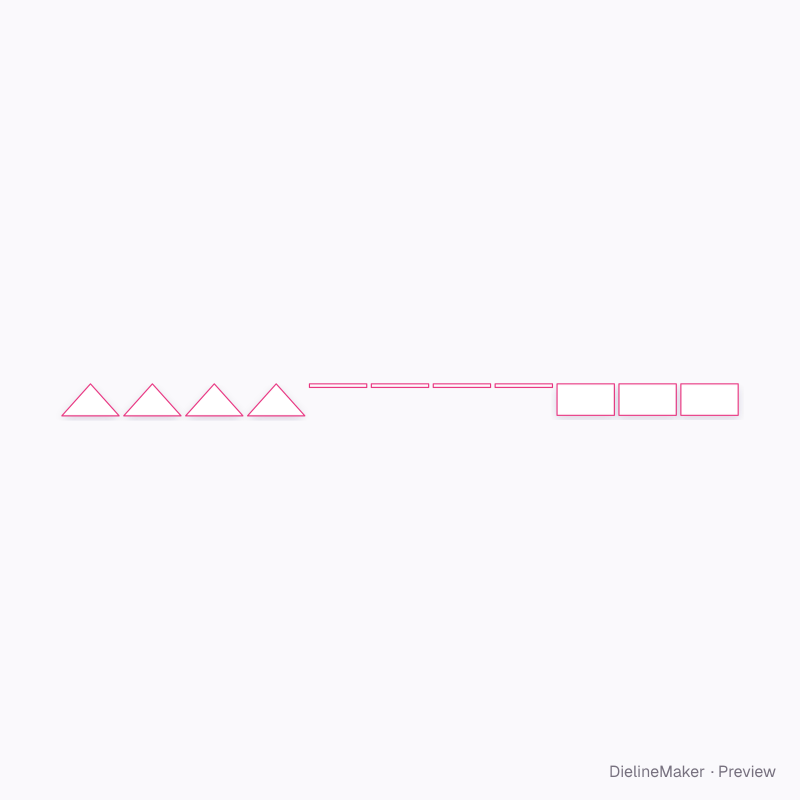

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Roof3 options
- Peak rise%
- Valance depthmm
- Back wall3 options
- Side walls3 options
- Front half wall (counter barrier)on / off
- Fabric6 options
The exhibition pop-up canopy tent family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pop-up tent 13 x 13 ft with side walls yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
