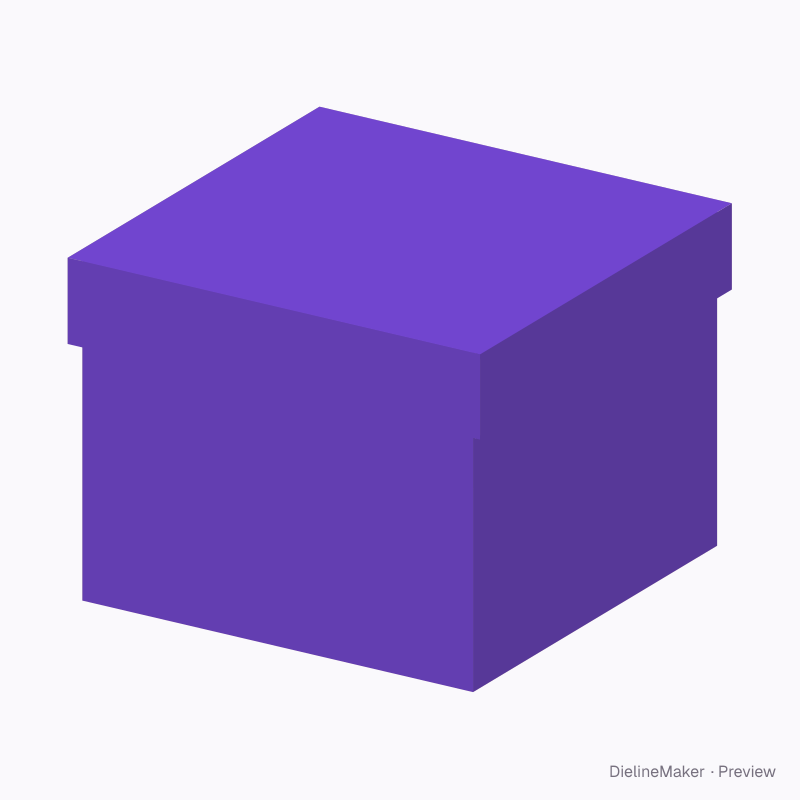

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTrays & lids
Wedding reveal box dieline
A cross-shaped base with four unglued drop sides, held upright by a fitted lift-off lid. The open pose lays the sides flat for photos, messages or a gift reveal. A ready-sized preset of the explosion gift box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 100 × 80 mm
Outside106.8 × 104.4 × 81.2 mm
Flat blank261.2 × 261.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 100 · Inside width 100 · Side height 80 mm
- Size range
- Inside length 60–350 · Inside width 60–350 · Side height 35–220 mm
- Manufacturing
- 100.6 × 100.6 × 80.3 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Drop-side gift base, Lid
- Board area
- 0.064 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- FBB 400SBS 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lid depthmm
The explosion gift box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this wedding reveal box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
