DM-FACETED-BELLOWS-BODY-01Shapes
Twisted faceted totem dieline

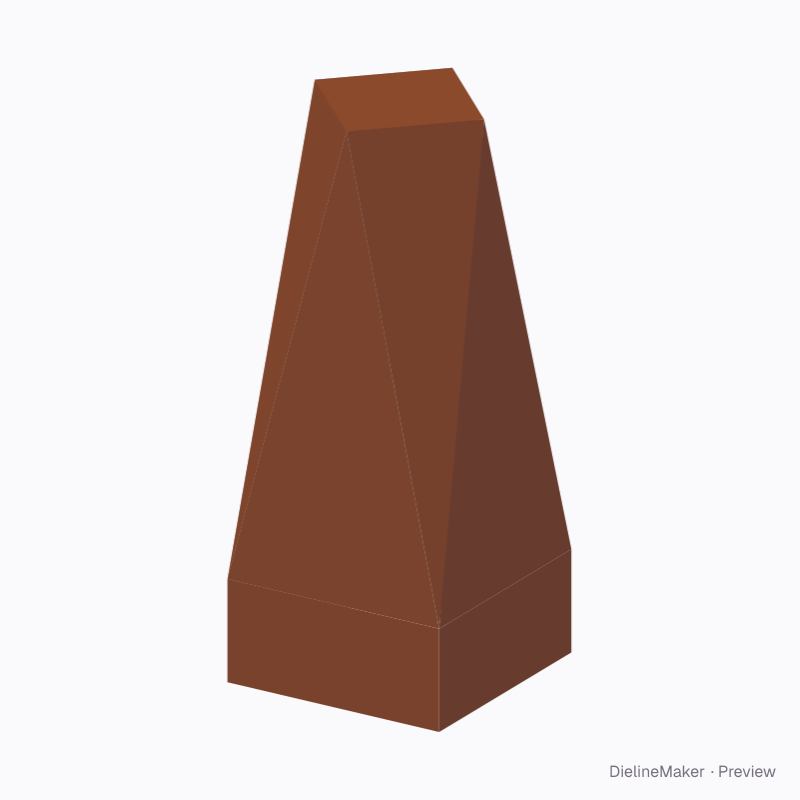

A 3 to 8-sided body whose walls break into rings of diagonal triangular facets: two rings pinch a faceted bellows waist, one ring twists and tapers to a turned top. Closed or open top; true-length net with hand-glue tabs. A ready-sized preset of the faceted bellows body box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 90 × 220 mm
Outside90 × 90 × 220 mm
Flat blank372.8 × 366.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FACETED-BELLOWS-BODY-01
- Inside size
- Width 90 · Depth 90 · Height 220 mm
- Size range
- Width 40–400 · Depth 40–400 · Height 40–500 mm
- Manufacturing
- 90 × 90 × 220 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.083 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350Paper 170Kraft 350SBS 18 pt
- Good for
The flat dieline

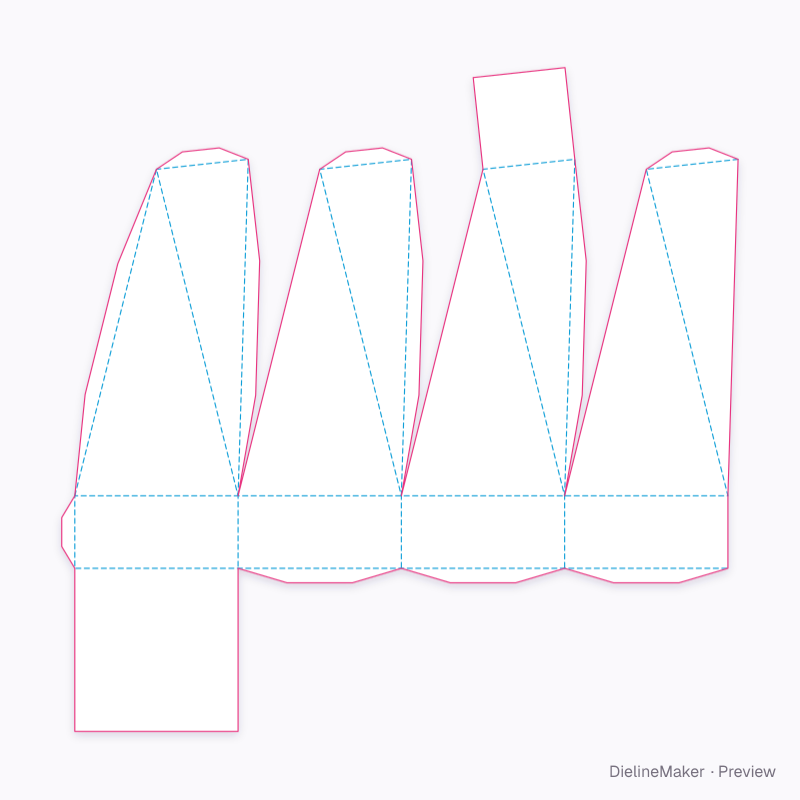

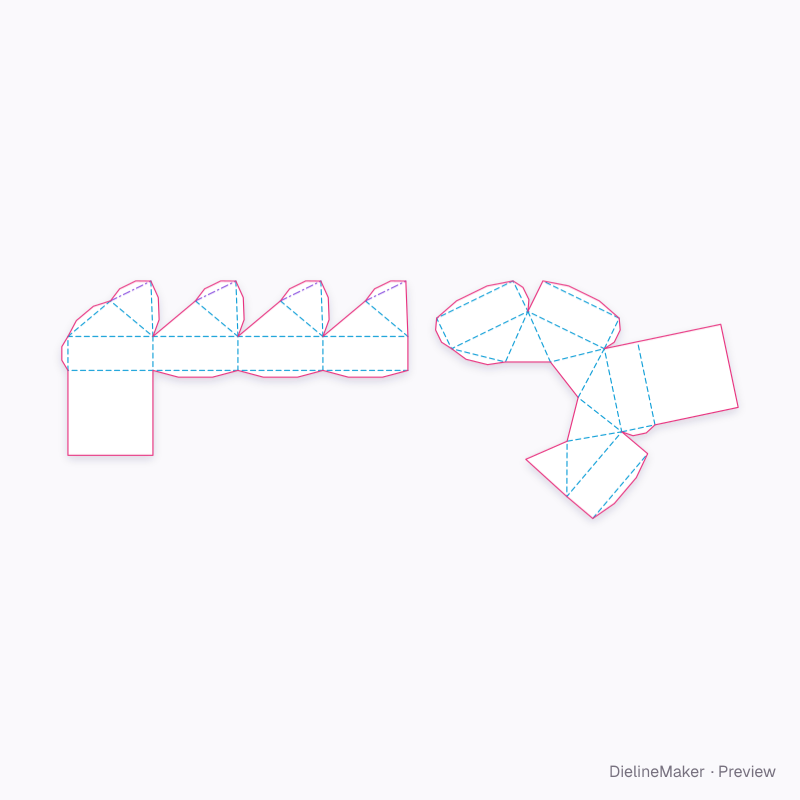

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Sidescount
- Facet form2 options
- Waist / top scale%
- Lower wall heightmm
- Upper wall heightmm
- Top3 options
- Lid tuck depthmm
- Rim return lipmm
- Hand-glue tab depthmm
