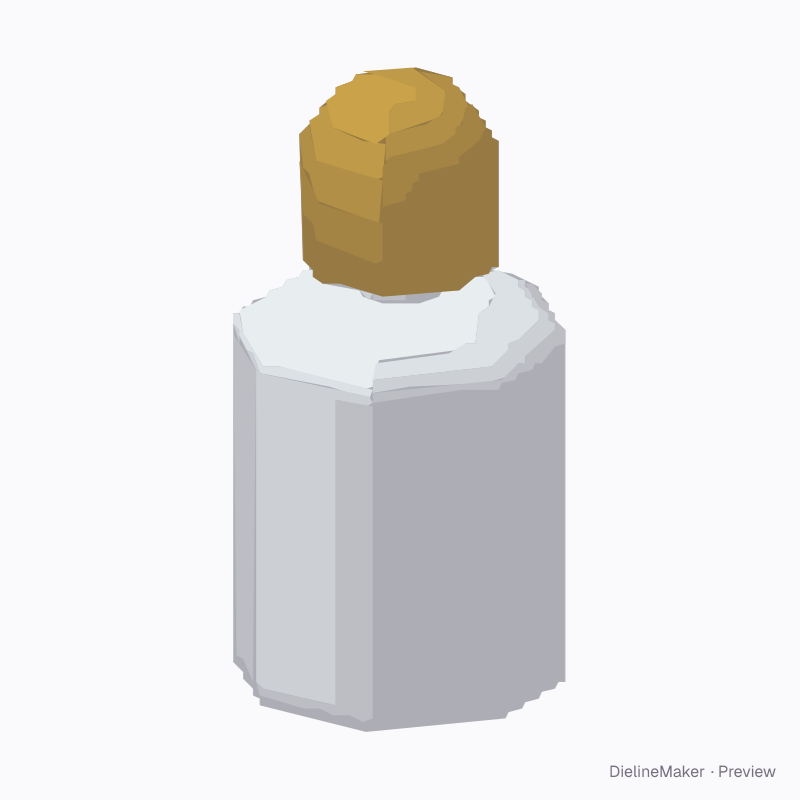

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FACETBTL-01Labels
Polygonal perfume bottle 50 ml dieline
A polygonal glass perfume bottle, straight prism or faceted vase, with a faceted, spherical or cylinder cap. Print a label on the front facet. A ready-sized preset of the faceted perfume bottle — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 60 × 120 mm
OutsideØ 60 × 120 mm
Flat blank20.4 × 39.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FACETBTL-01
- Inside size
- Across flats 60 · Overall height 120 mm
- Size range
- Across flats 25–120 · Overall height 50–250 mm
- Manufacturing
- Ø 60 × 120 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.001 m² · about 594 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Facetscount
- Body2 options
- Cap3 options
- Neck2 options
- Glass5 options
- Cap4 options
The faceted perfume bottle family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this polygonal perfume bottle 50 ml yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
