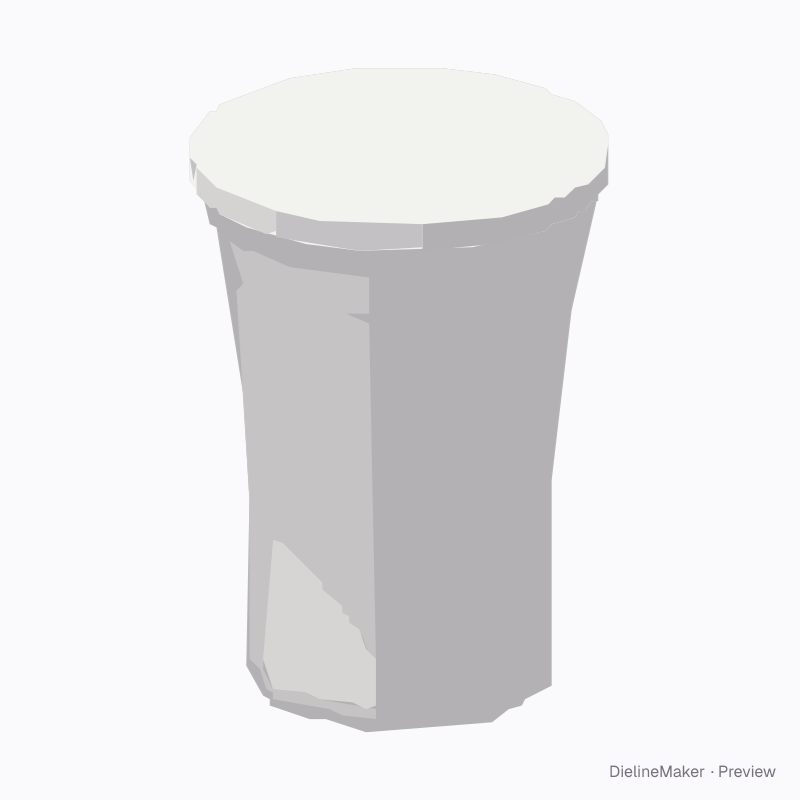

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FACETCUP-01Labels
Polygonal cup with lid 12 oz dieline
A polygon-walled, waisted takeaway cup with a round collar and a sip or dome lid, paper or clear plastic. Print the faceted wrap. A ready-sized preset of the faceted takeaway cup — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 90 × 120 mm
OutsideØ 90 × 120 mm
Flat blank263.3 × 106 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FACETCUP-01
- Inside size
- Rim diameter 90 · Cup height 120 mm
- Size range
- Rim diameter 50–130 · Cup height 50–200 mm
- Manufacturing
- Ø 90 × 120 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.028 m² · about 18 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Facetscount
- Waist%
- Lid3 options
- Clear plasticon / off
- Lid3 options
