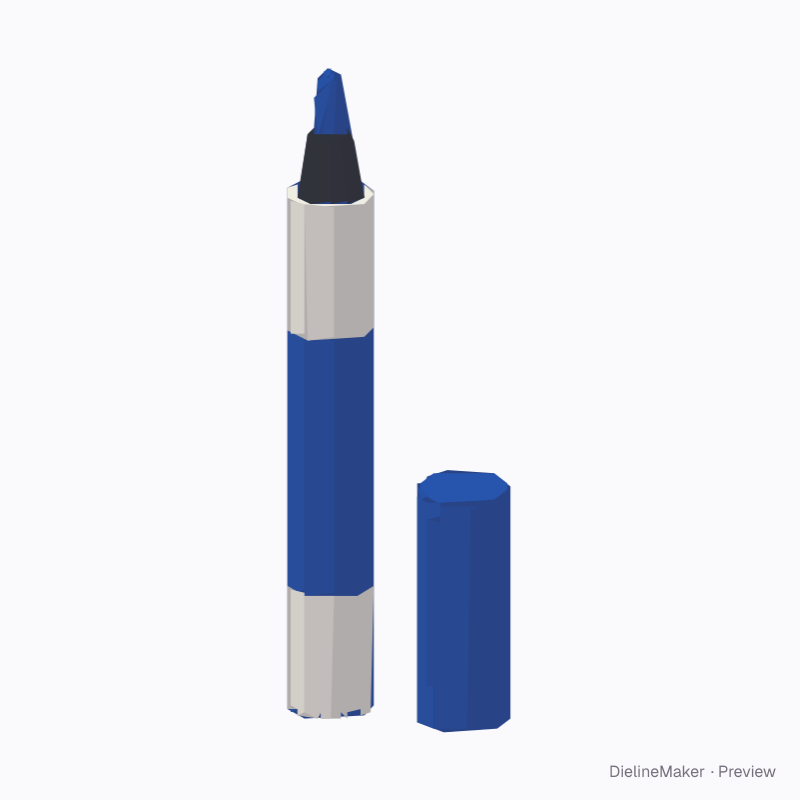

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Bullet-tip marker decoration template
A round marker with a felt bullet nib and a hollow removable cap. Artwork wraps the barrel; the flat export is a decoration reference to confirm with the marker printer. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 16 × 145 mm
Artwork area42.7 × 52.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Barrel diameter 16 · Capped length 145 mm
- Size range
- Barrel diameter 10–22 · Capped length 100–180 mm
- Parts
- One artwork area
- Artwork area
- 0.002 m²
- Good for
The flat artwork area

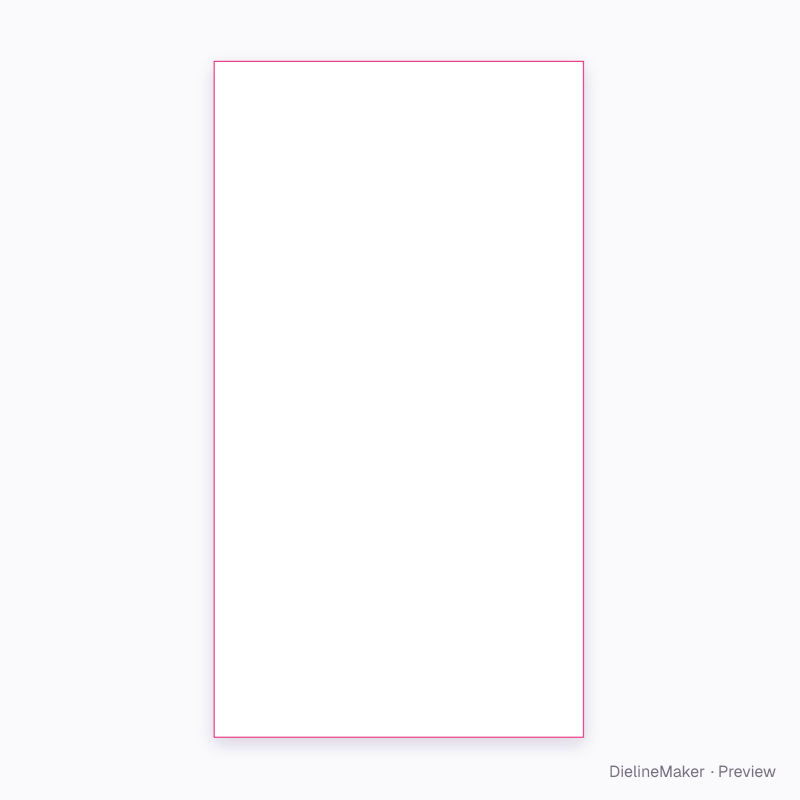

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Object colour4 options
- Cap / ink colour4 options
- Remove capon / off
