The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FLAP-POCKET-ENVELOPE-01Cards & tags
Four-flap interlocking pochette dieline
A square pocket closed by four interlocking rounded flaps, or a flat envelope with a hanging header. A ready-sized preset of the flap pocket envelope — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 120 mm
Outside120.3 × 120.3 mm
Flat blank252 × 252 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FLAP-POCKET-ENVELOPE-01
- Inside size
- Width 120 · Height 120 mm
- Size range
- Width 50–300 · Height 50–300 mm
- Manufacturing
- 120.2 × 120.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.042 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for

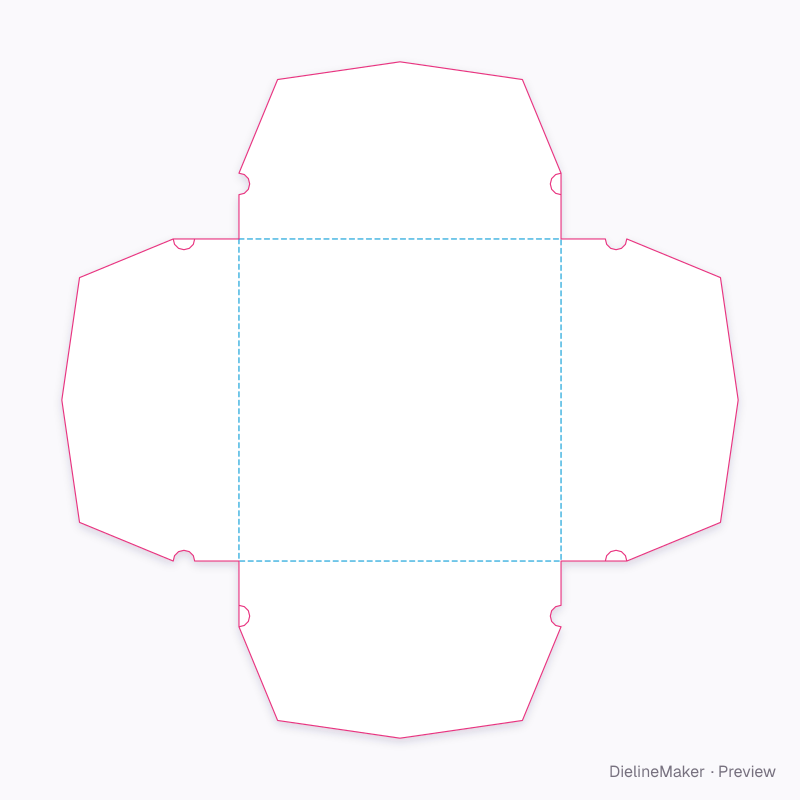

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Envelope2 options
- Interlock cut radiusmm
The flap pocket envelope family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this four-flap interlocking pochette yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
