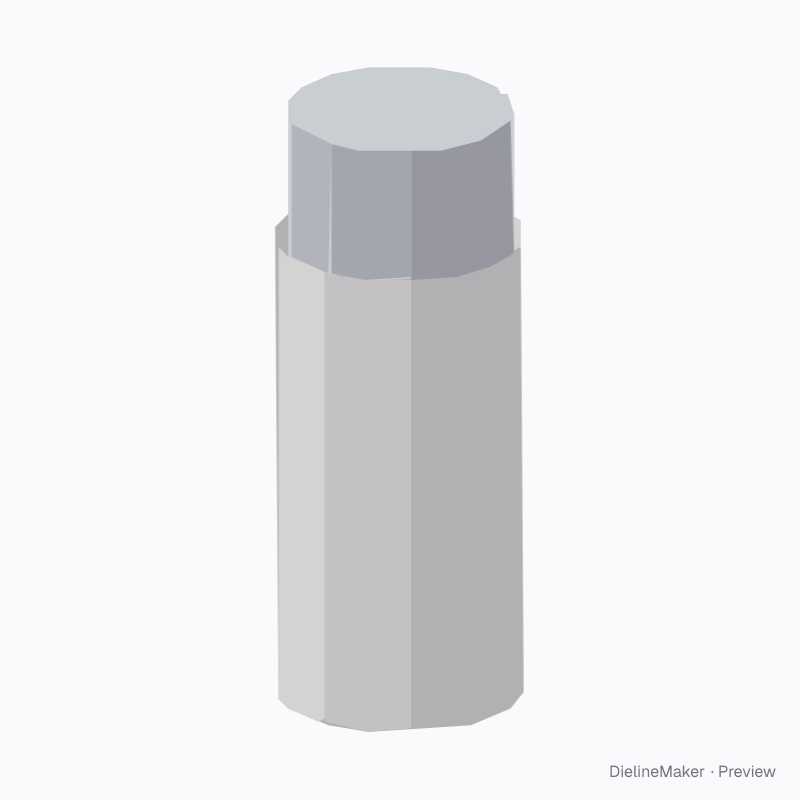

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-KOOZIE-02Labels
Slim can koozie with base dieline
A collapsible neoprene can cooler with side seams and a bridge or disc bottom, shown on a can or folded flat. Print the sleeve wrap and the base disc. A ready-sized preset of the fold-flat koozie (collapsible can cooler) — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 58 × 125 mm
OutsideØ 58 × 125 mm
Flat blank201.1 × 125 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-KOOZIE-02
- Inside size
- Can diameter 58 · Sleeve height 125 mm
- Size range
- Can diameter 50–90 · Sleeve height 70–170 mm
- Manufacturing
- Ø 58 × 125 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Sleeve wrap (seams at the sides), Base disc
- Board area
- 0.028 m² · about 21 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

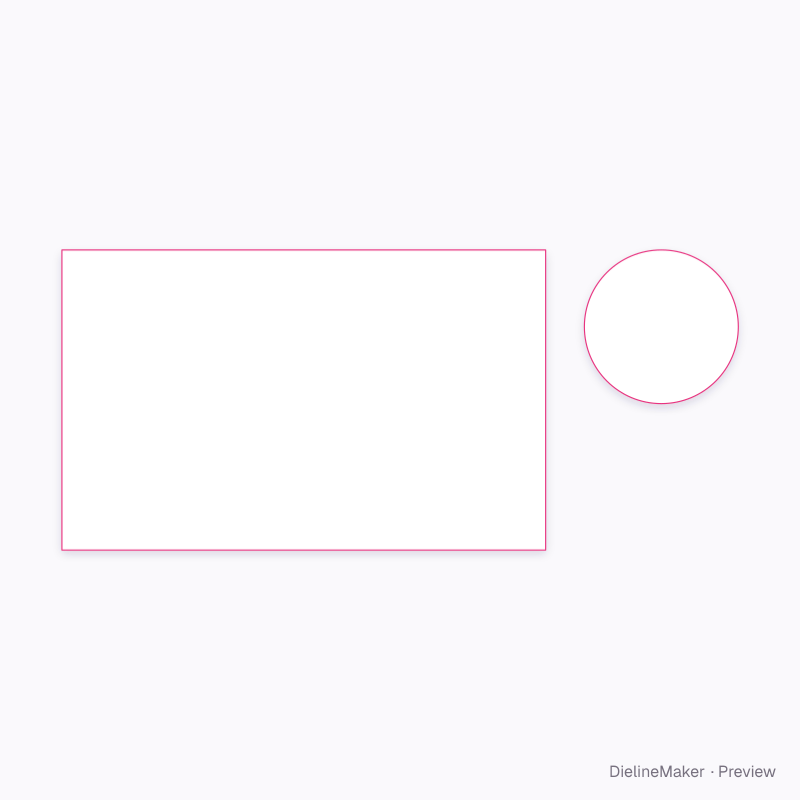

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Pose2 options
- Bottom3 options
- Neoprene5 options

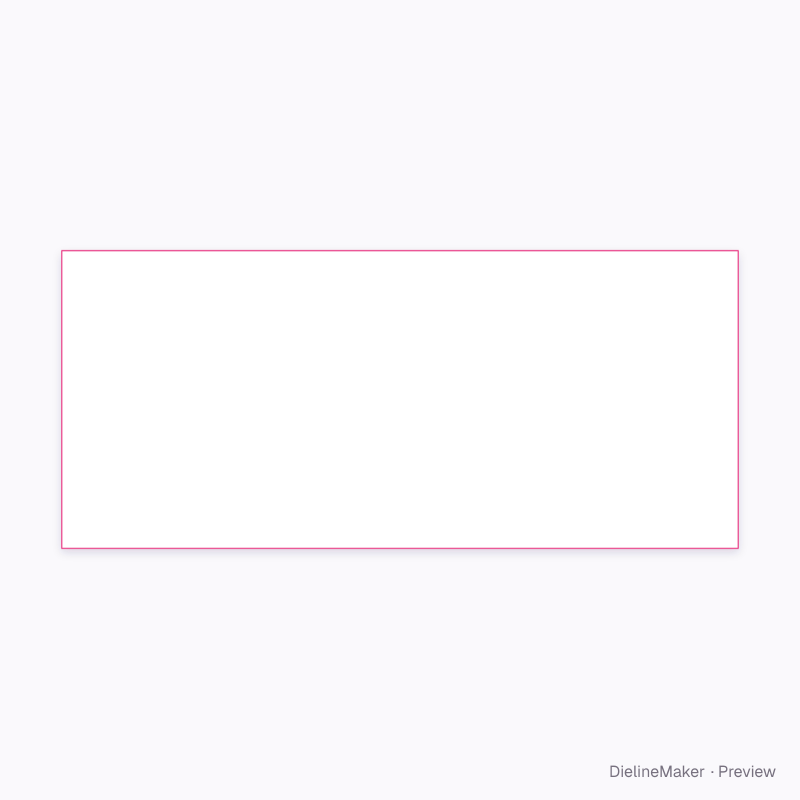

The fold-flat koozie (collapsible can cooler) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this slim can koozie with base yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
