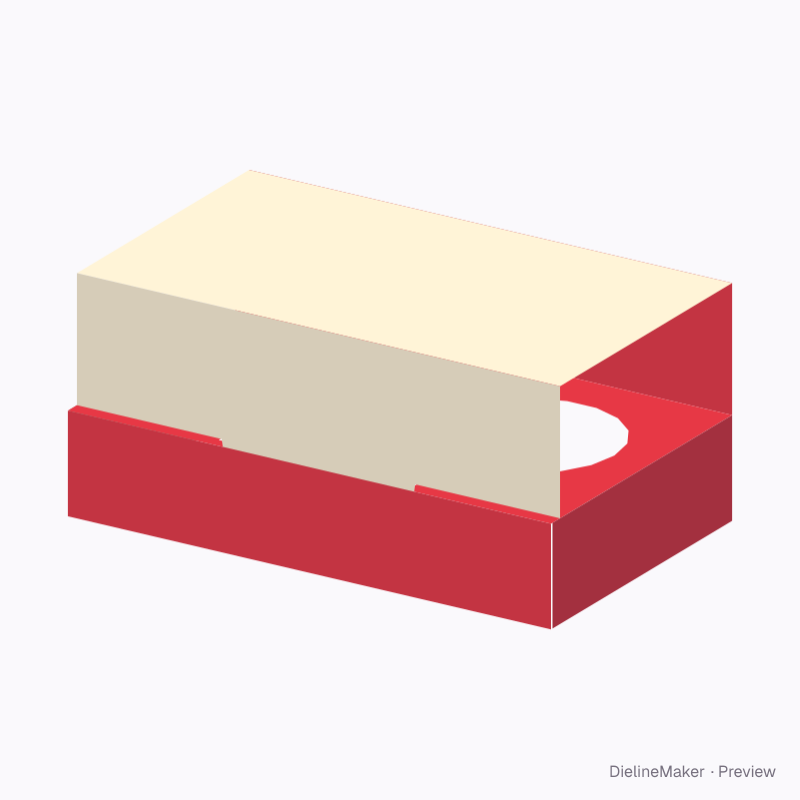

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FOLDOVER-CRADLE-INSERT-01Labels
Fold-over insert with integral cover dieline
A one-piece protective insert: a raised platform with product openings on folded legs, and a cover hinged at the back that folds over the products and locks into a slot. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 120 × 40 mm
Outside203.2 × 123.2 × 43.2 mm
Flat blank280 × 389 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOLDOVER-CRADLE-INSERT-01
- Inside size
- Length 200 · Depth 120 · Platform height 40 mm
- Size range
- Length 60–600 · Depth 40–400 · Platform height 10–200 mm
- Manufacturing
- 201.6 × 121.6 × 41.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.085 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KF-fluteB-fluteKraft 350
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FOLDOVER-CRADLE-INSERT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Platform | 200 × 120 | L × W |
| Front leg | 200 × 40 | L × H |
| Left leg | 40 × 119 | H × – |
| Right leg | 40 × 119 | H × – |
| Cover spine | 200 × 50 | L × – |
| Cover | 200 × 114 | L × – |
| Cover front | 200 × 65 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Product openingscount
- Opening shape2 options
- Opening sizemm
- Cover heightmm
- Cover tonguemm

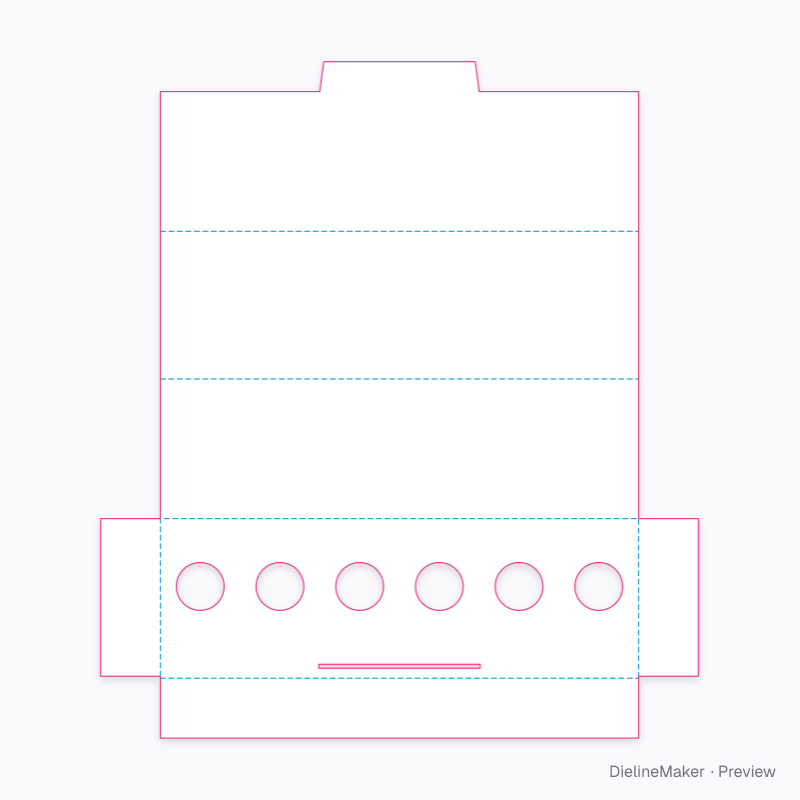

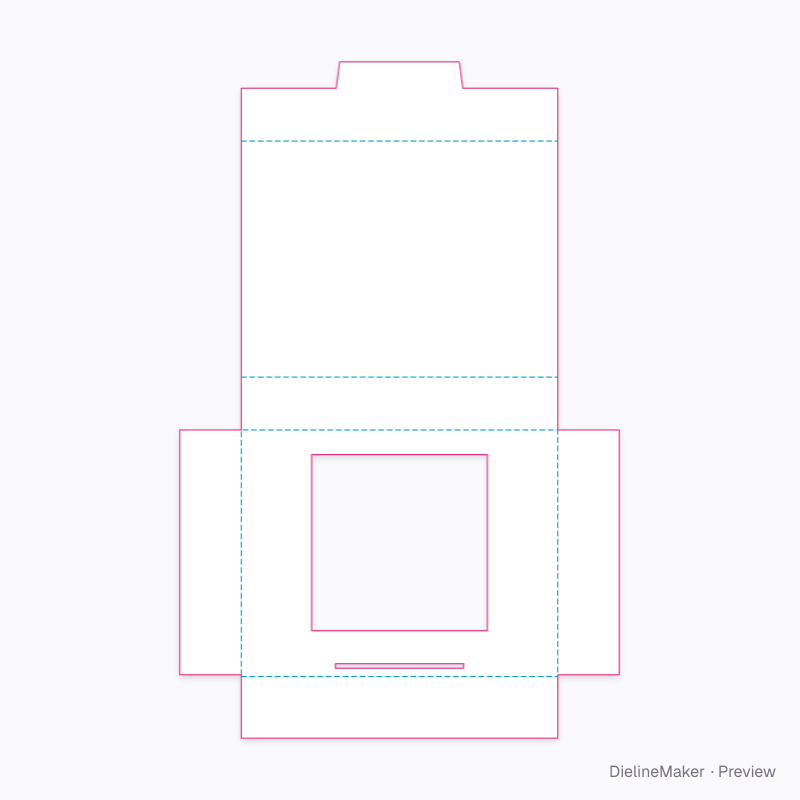

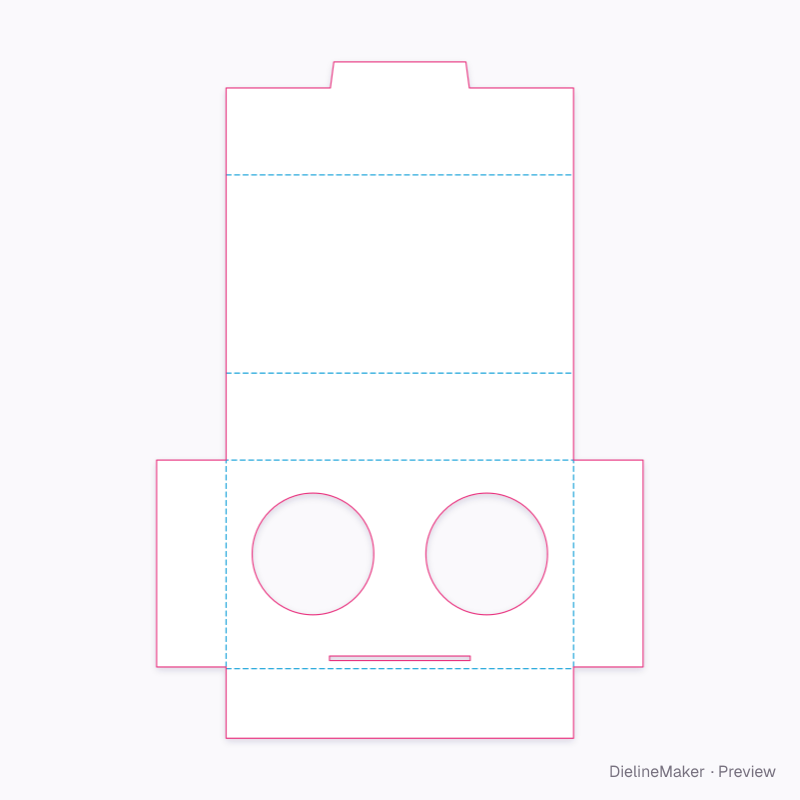

Ready-sized fold-over insert with integral cover presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset

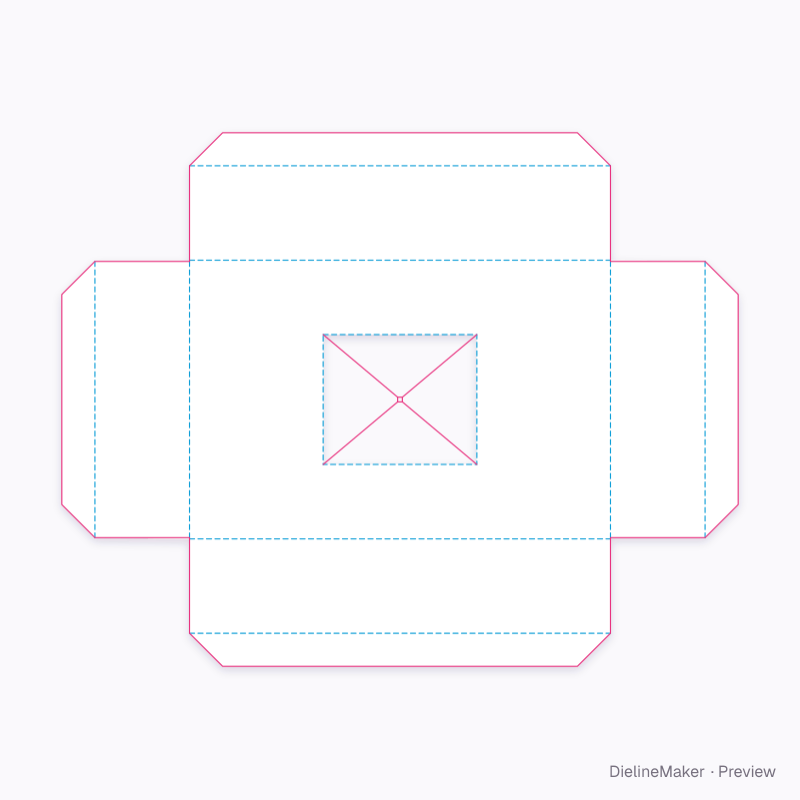

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fold-over insert with integral cover yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
