A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise

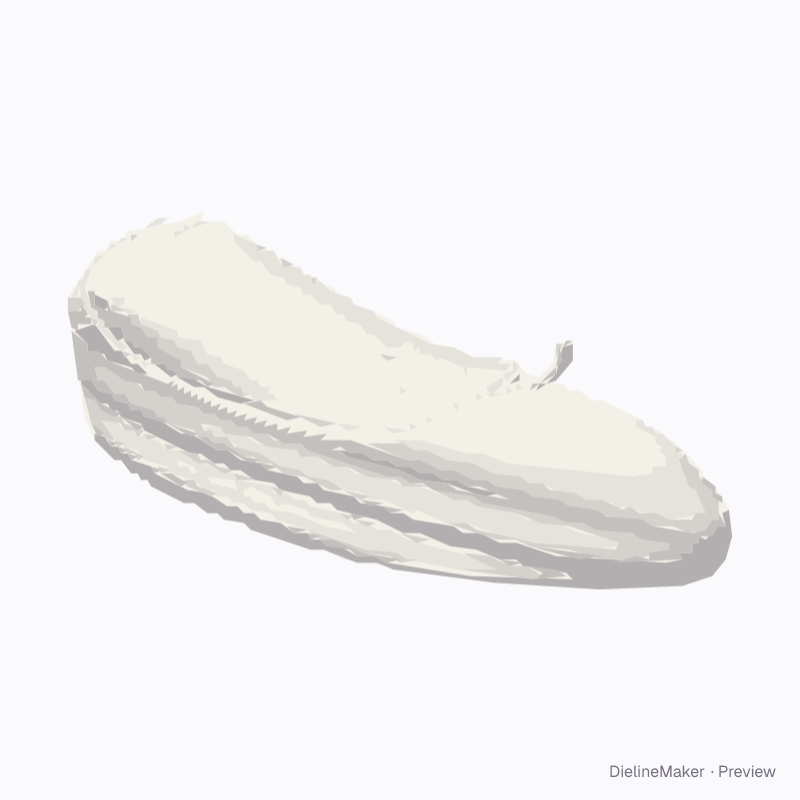

White foot-liner sock decoration template
A low foot-liner sock: shallow sides around the foot with a long oval opening over the instep, heel and toe. L is the foot length, H the side height. The flat area positions a heel-side design; it is not a knitting specification. A ready-sized preset of the foot-liner sock — adjust the object dimensions and decoration area to preview your artwork at size.
Object size240 × 75 mm
Artwork area86.4 × 34.5 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Object width 240 · Object height 75 mm
- Size range
- Object width 132–384 · Object height 41.3–120 mm
- Parts
- One artwork area
- Artwork area
- 0.003 m²
- Good for

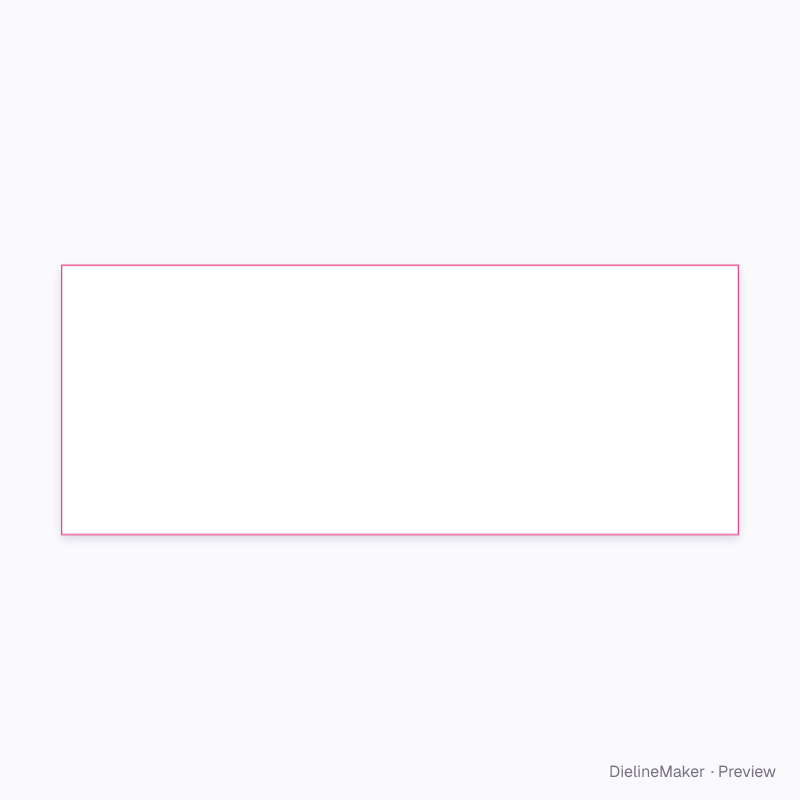

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 1 option; the template and 3D preview follow each change.
- Object colour17 options
The foot-liner sock family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this white foot-liner sock yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
