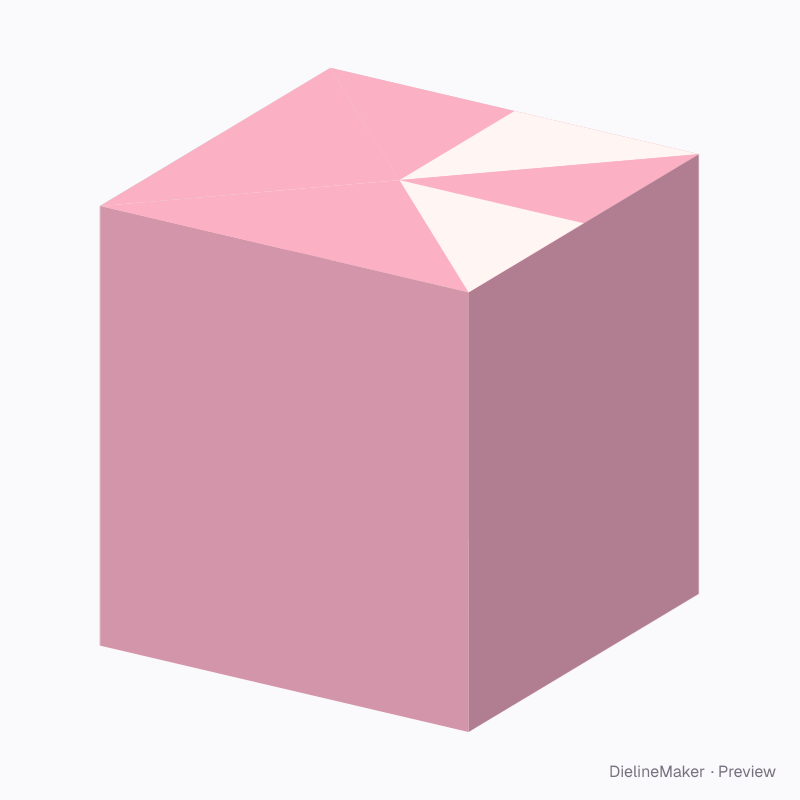

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Flower-top gift carton dieline
A square gift carton whose connected corner webs return inside while four rounded petals twist over the top. Real roof folds and double-creased underlaps form the closure; the base uses glued triangular sectors. A ready-sized preset of the four-petal twist carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 110 × 120 mm
OutsideØ 110.8 × 120.8 mm
Flat blank453.4 × 259.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside diameter across flats 110 · Inside body height 120 mm
- Size range
- Inside diameter across flats 30–500 · Inside body height 20–500 mm
- Manufacturing
- Ø 110.4 × 120.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.099 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for

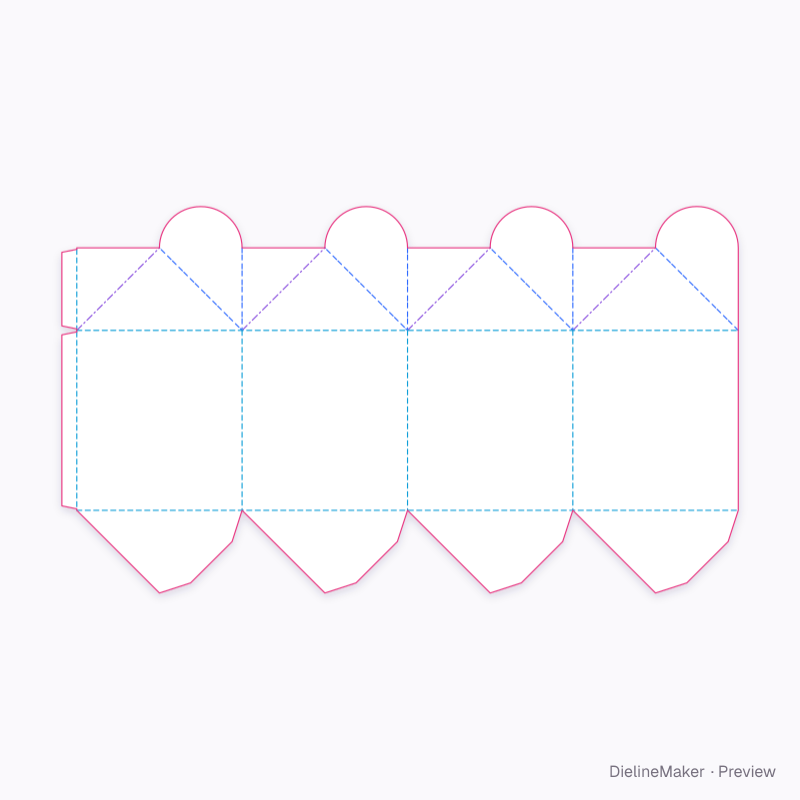

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Polygon wall 1 | 110.8 × 120.8 | L + 2T × H + 2T |
| Twist roof sector 1 | 110.8 × 55.4 | L + 2T × – |
| Returning lid web 1 | 39.2 × 78.4 | – |
| Rounded petal 1 | 47.1 × 78.4 | – |
| Glued base sector 1 | 110.8 × 55.4 | L + 2T × – |
| Bond to base sector 2 | 78.4 × 10 | – |
| Polygon wall 2 | 110.8 × 120.8 | L + 2T × H + 2T |
| Twist roof sector 2 | 110.8 × 55.4 | L + 2T × – |
| Returning lid web 2 | 78.4 × 39.2 | – |
| Rounded petal 2 | 47.1 × 78.4 | – |
| Glued base sector 2 | 110.8 × 55.4 | L + 2T × – |
| Bond to base sector 3 | 78.4 × 10 | – |
| Polygon wall 3 | 110.8 × 120.8 | L + 2T × H + 2T |
| Twist roof sector 3 | 110.8 × 55.4 | L + 2T × – |
| Returning lid web 3 | 39.2 × 78.4 | – |
| Rounded petal 3 | 78.4 × 47.1 | – |
10 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid reachmm
- Joining tab depthmm
