Wide multi-product dispenser decoration template
A forecourt fuel dispenser with lower cabinet door graphics, display and price windows, nozzle holsters with hoses and a branded header. A ready-sized preset of the fuel dispenser — adjust the object dimensions and decoration area to preview your artwork at size.
Object size1800 × 600 × 2500 mm
Artwork area1720 × 800 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-FUELDISP-01
- Object size
- Width 1800 · Depth 600 · Height 2500 mm
- Size range
- Width 700–2200 · Depth 350–900 · Height 1600–2900 mm
- Parts
- 6 parts — Lower door, Header, Rear lower door, Rear header, Left end panel, Right end panel
- Artwork area
- 6.146 m²
- Good for
The flat artwork area

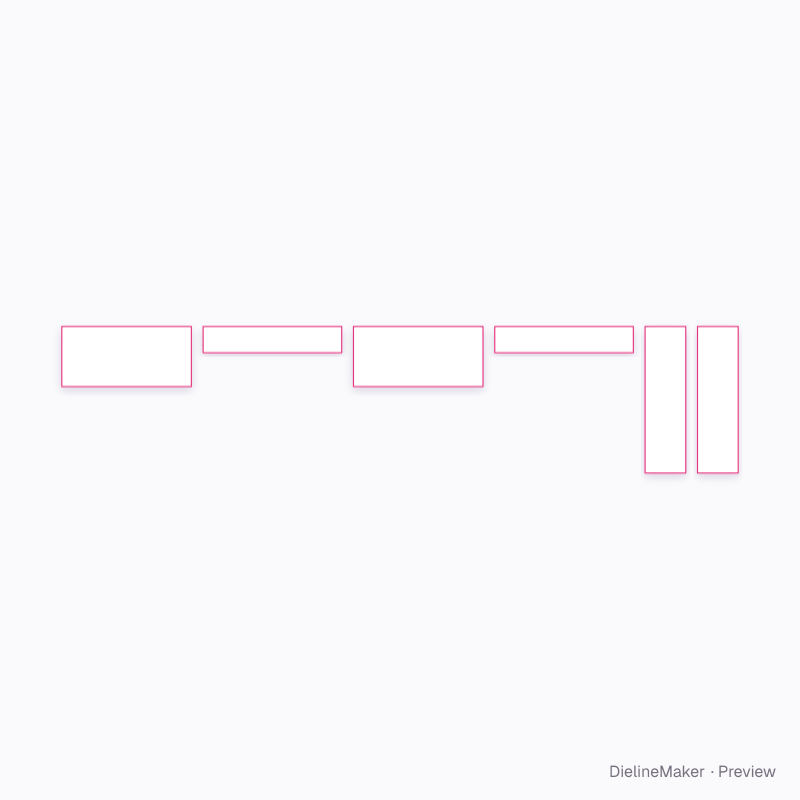

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Nozzles per sidecount
- Header heightmm
- Print the rear faceson / off
- Print end panelson / off
- Body6 options
