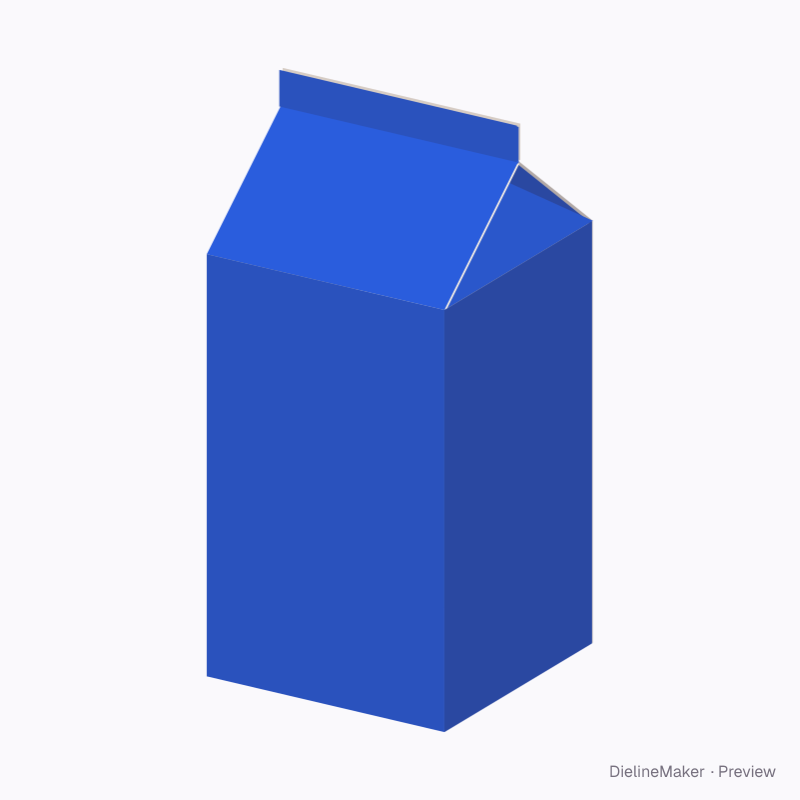

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-GABLE-CRASH-01Food
Milk carton gift box dieline
Kraft gable-top carton for cookies, sweets and small bakery gifts. A ready-sized preset of the gable-top carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 80 × 130 mm
Outside80.9 × 80.9 × 130.9 mm
Flat blank333.8 × 242.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-GABLE-CRASH-01
- Inside size
- Length 80 · Width 80 · Height 130 mm
- Size range
- Length 40–200 · Width 40–200 · Height 40–400 mm
- Manufacturing
- 80.5 × 80.5 × 130.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.076 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Food SBS PESBS 350Food kraft PEKraft 350SBS 300FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-GABLE-CRASH-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 80.5 × 130.5 | L + T × H + T |
| Left side | 80.5 × 130.5 | W + T × H + T |
| Back | 80.5 × 130.5 | L + T × H + T |
| Right side | 80 × 130.5 | W × H + T |
| Glue flap | 12 × 130.5 | – × H + T |
| Crash-lock flap (back) | 80.5 × 49.2 | – |
| Glued web ×2 | 21.6 × 48 | – |
| Bottom side flap | 80.5 × 39.2 | – |
| Crash-lock flap (front) | 80.5 × 49.2 | – |
| Bottom side flap | 80 × 39.2 | – |
| Back roof | 80.5 × 51.5 | L + T × √(rise² + a²) |
| Top fin ×2 | 80.5 × 11.3 | – |
| Front roof | 80.5 × 51.5 | L + T × √(rise² + a²) |
| Gable end | 80.5 × 51.5 | – |
| Gable fold-in ×4 | 31.7 × 65.4 | – |
| Gable fin ×4 | 40.2 × 11.3 | – |
1 more panels are listed in the editor’s structure step.
