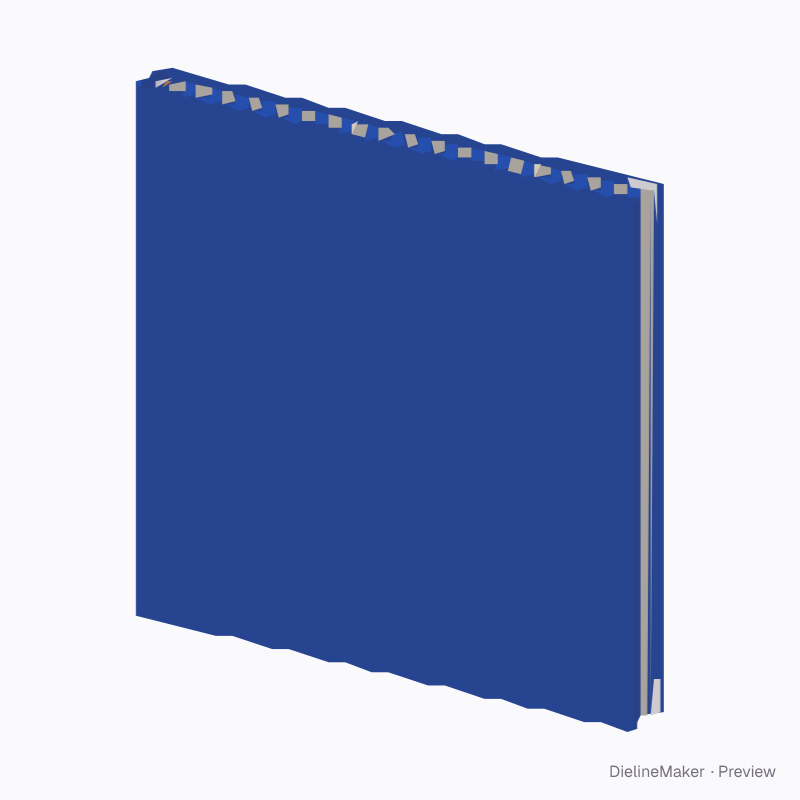

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementCards & tags
Square hardcover photo book case and page template
A casebound book with three wrapped cover boards, hinge gaps, endpaper liner, inset page block and headbands. Export the mitred case wrap, liner and board/page-block trim references. Select an editable interior spread with curved facing leaves resting on split bound stacks. Use the bindery’s confirmed spine and hinge dimensions; facing-page trims are graphic references and interior-page imposition is separate. A ready-sized preset of the hardcover book — adjust the object dimensions and decoration area to preview your artwork at size.
Object size256 × 22 × 256 mm
Artwork area584 × 292 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Cover board width 256 · Finished spine 22 · Cover board height 256 mm
- Size range
- Cover board width 85–350 · Finished spine 8–70 · Cover board height 110–400 mm
- Parts
- 6 parts — Outer case wrap with turn-ins, Inner paper liner, back board · cut reference, spine board · cut reference, front board · cut reference, Page-block trim reference
- Artwork area
- 0.506 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 10 options; the template and 3D preview follow each change.
- Cover opening°
- Wrap turn-inmm
- Board hinge gapmm
- Editable bound interior spreadon / off
- Page-block insetmm
- Dust jacketon / off
- Leaves2 options
- Swiss binding (exposed spine)on / off
- Rounded spineon / off
- Clear shrink wrapon / off
