A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Junior lace-neck hockey jersey decoration template

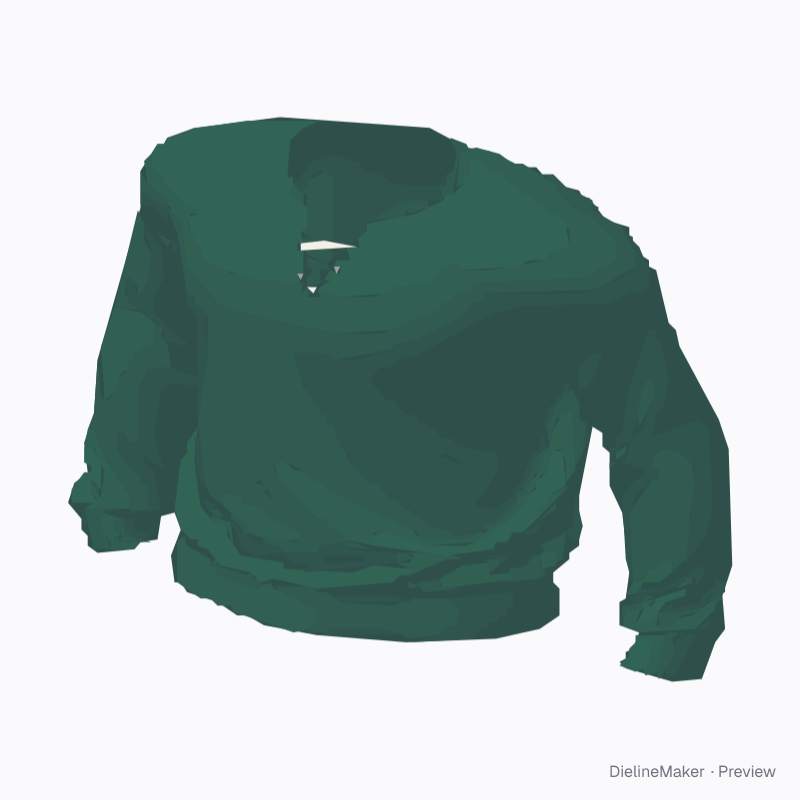

A wide long-sleeve hockey jersey with ribbed cuffs and a V neckline laced shut with a criss-cross cord through eyelets either side of the V. Separate chest and back artwork for crest, name and number. Optional left/right upper-arm artwork edits independently on both front and rear sleeve faces. Exported pieces are artwork presentation references; confirm production limits with the garment supplier. Sewing and grading patterns are separate. A ready-sized preset of the lace-neck hockey jersey — adjust the object dimensions and decoration area to preview your artwork at size.
Object size486.4 × 592 mm
Artwork area267.5 × 225 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Object width 486.4 · Object height 592 mm
- Size range
- Object width 297–864 · Object height 407–1184 mm
- Parts
- 2 parts — Front decoration, Back decoration
- Artwork area
- 0.120 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Separate sleeve artworkon / off
- Rear sleeve artworkon / off
- Object colour17 options
The lace-neck hockey jersey family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this junior lace-neck hockey jersey yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
