Long hooded sleeve raincoat decoration template
An original long raincoat with root-attached hollow sleeves, an attached hood with an open face, full front zipper, overlapping storm flap and two pocket flaps. The material is a coated-fabric presentation; waterproof ratings and sealed-seam manufacturing are separate. Independent chest and rear decoration references export at size. Supplier sewing/grading patterns, textile performance, embroidery programs, production all-over panels and human-worn rigs are separate. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size590 × 1040 mm
Artwork area318.6 × 251.6 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Torso width 590 · Total garment height 1040 mm
- Size range
- Torso width 413–826 · Total garment height 832–1404 mm
- Parts

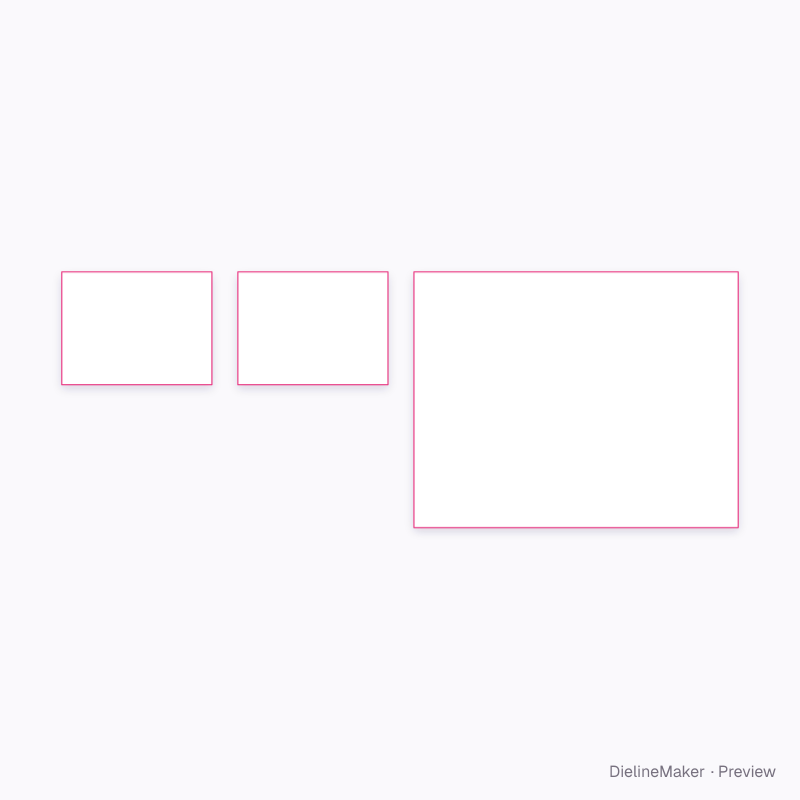

- 3 parts — Left chest decoration, Right chest decoration, Rear decoration
- Artwork area
- 0.113 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 2 options; the template and 3D preview follow each change.
- Object colour17 options
- Lower body extensionmm
Ready-sized long hooded sleeve raincoat presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this long hooded sleeve raincoat yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
