DM-IBC-01Labels
640 L IBC tote dieline

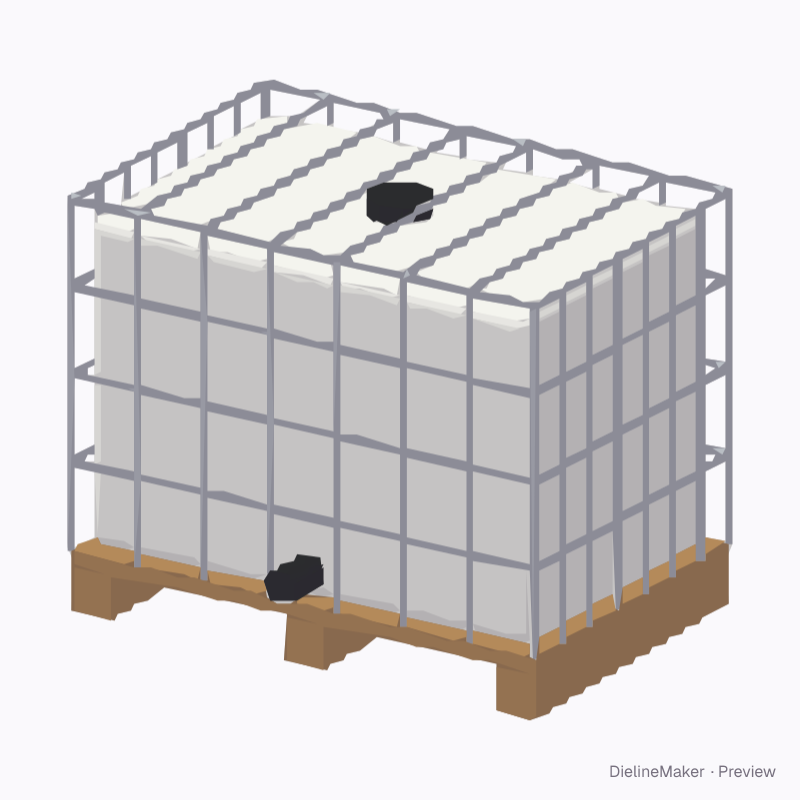

A 1000 L-style IBC: translucent tank in a steel tube cage on a pallet base, with top fill cap and bottom valve. Print the front label panel; set the liquid level. A ready-sized preset of the ibc tote tank (cage + pallet) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside1200 × 800 × 1000 mm
Outside1200 × 800 × 1000 mm
Flat blank480 × 255 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-IBC-01
- Inside size
- Length 1200 · Width 800 · Overall height 1000 mm
- Size range
- Length 800–1400 · Width 600–1200 · Overall height 700–1400 mm
- Manufacturing
- 1200 × 800 × 1000 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.122 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Liquid level%
- Liquid4 options
- Base3 options
The ibc tote tank (cage + pallet) family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 640 l ibc tote yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
