Drawer insert: aperture bridge and side rails dieline

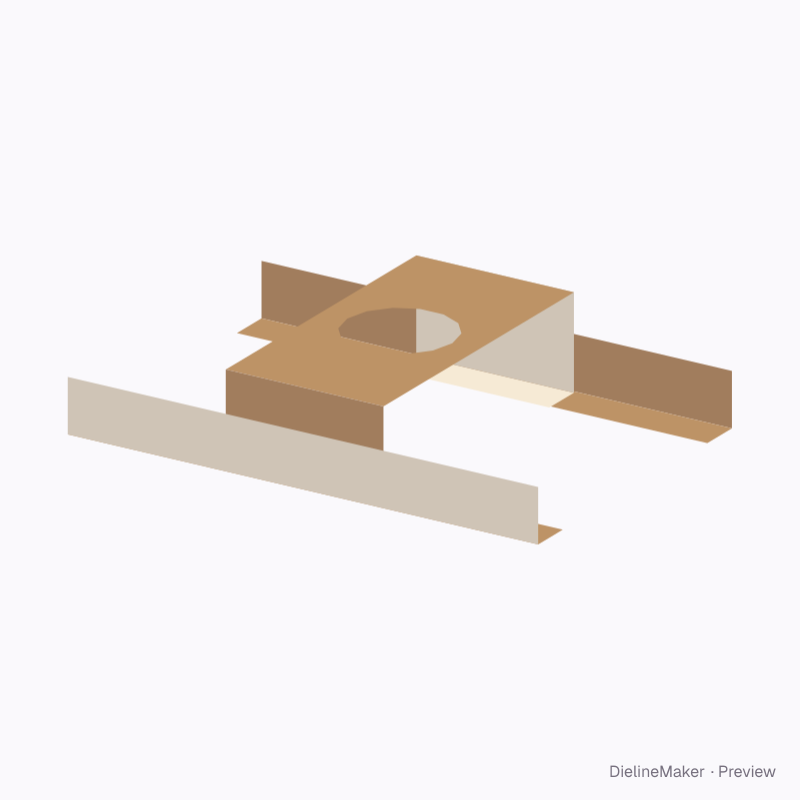

Separate folded insert pieces for a drawer or tray: an aperture bridge on legs and two L-section side rails. A ready-sized preset of the insert component set (bridge and rails) — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 35 mm
Outside181 × 121 × 36 mm
Flat blank60 × 216 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-INSERT-COMPONENT-SET-01
- Inside size
- Cavity length 180 · Cavity width 120 · Bridge height 35 mm
- Size range
- Cavity length 60–400 · Cavity width 40–300 · Bridge height 10–150 mm
- Manufacturing
- 180.5 × 120.5 × 35.5 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Aperture bridge, Side rail, Side rail
- Board area
- 0.025 m² · about 45 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

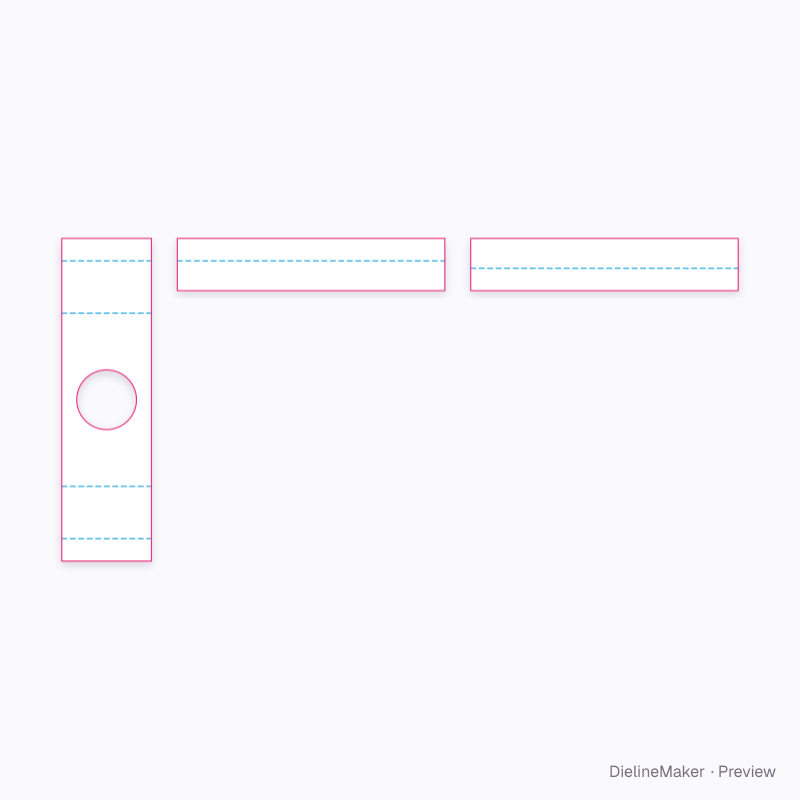

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-INSERT-COMPONENT-SET-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Aperture deckAperture bridge | 60 × 116 | – |
| Bridge leg ×2Aperture bridge | 60 × 35 | – × H |
| Foot ×2Aperture bridge | 60 × 15 | – |
| Rail uprightSide rail | 179 × 20 | L − 2T × – |
| Rail base (glued)Side rail | 179 × 15 | L − 2T × – |
| Rail uprightSide rail | 179 × 20 | L − 2T × – |
| Rail base (glued)Side rail | 179 × 15 | L − 2T × – |
