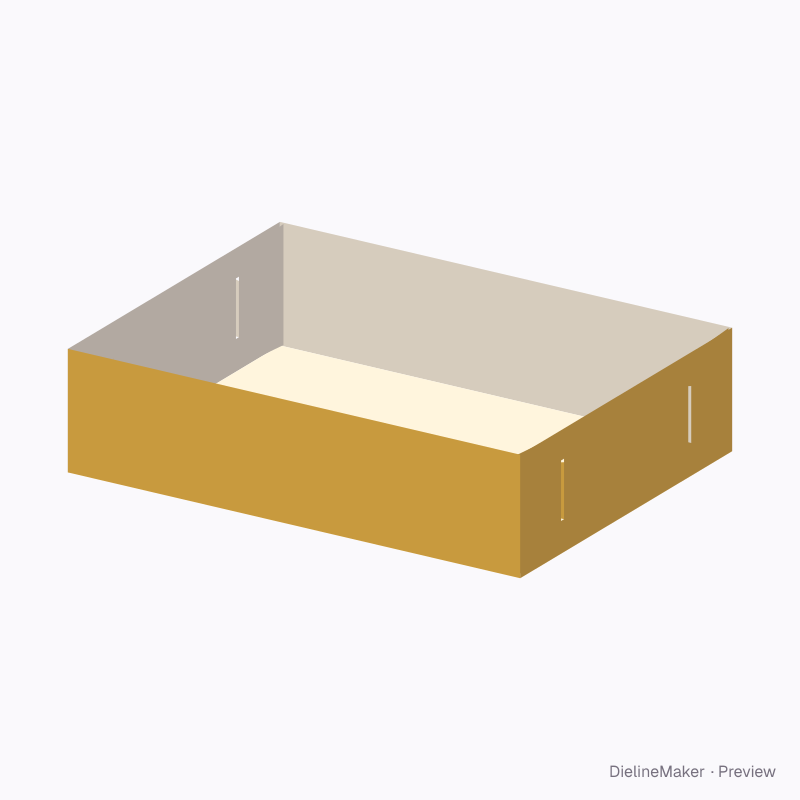

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HOOK-CORNER-TRAY-01Trays & lids
Hook-lock produce tray dieline
A glue-free single-wall tray: corner ears fold inside the end walls and lock with barbed hooks through receiving slits. A ready-sized preset of the tray with hooked corner locks — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 100 mm
Outside406.4 × 306.4 × 106.4 mm
Flat blank600 × 500 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HOOK-CORNER-TRAY-01
- Inside size
- Length 400 · Width 300 · Height 100 mm
- Size range
- Length 80–600 · Width 60–400 · Height 25–200 mm
- Manufacturing
- 403.2 × 303.2 × 103.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.284 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WF-fluteKraft 350SBS 350B-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HOOK-CORNER-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 400 × 300 | L × W |
| Front wall | 400 × 100 | L × H |
| Back wall | 400 × 100 | L × H |
| End wall ×2 | 100 × 300 | H × W |
| Corner ear ×4 | 60 × 98 | – |
| Hook ×4 | 8 × 45 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Corner ear widthmm
- Hook projectionmm
