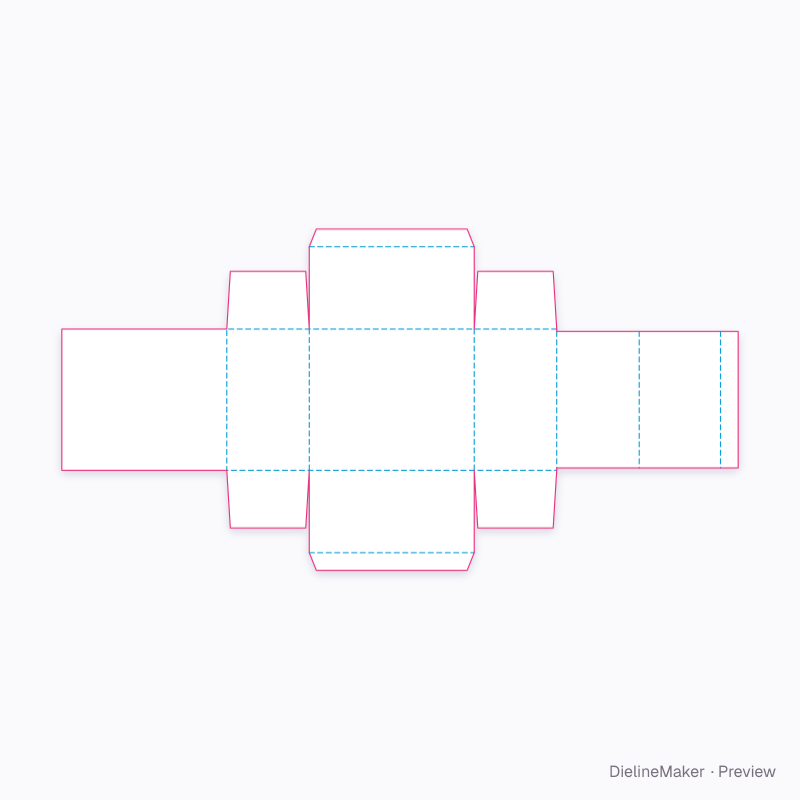

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PAIRED-BODIES-01Tuck end
Paired twin-body carton dieline
A tuck-end carton whose glue joint extends into a scored divider splitting it into two cells. A ready-sized preset of the tuck carton with integral joint divider — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 60 × 100 mm
Outside181 × 61 × 101 mm
Flat blank644 × 250 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PAIRED-BODIES-01
- Inside size
- Length 180 · Width 60 · Height 100 mm
- Size range
- Length 60–400 · Width 30–250 · Height 40–400 mm
- Manufacturing
- 180.5 × 60.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.100 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for

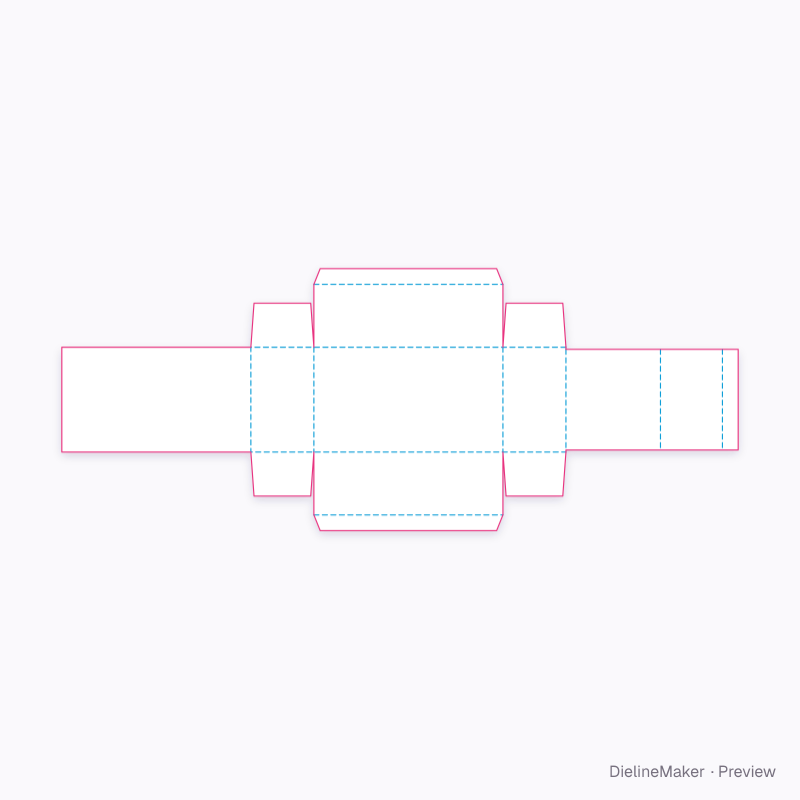

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PAIRED-BODIES-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 180 × 100 | L × H |
| Right side | 60 × 100 | W × H |
| Left side | 60 × 100 | W × H |
| Top lid | 180 × 60 | L × W |
| Bottom lid | 180 × 60 | L × W |
| Front | 180 × 100 | L × H |
| Dust flap ×4 | 60 × 42 | W × – |
| Joint return (glued inside the front) | 90 × 96 | – |
| Tuck ×2 | 180 × 15 | L × – |
| Integral divider | 59 × 96 | W − 2T × – |
| Divider foot (glued inside the back) | 15 × 96 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Divider position%
- Tuck depthmm
