DM-KNOBBOX-01Apparel & merchandise
Jewellery box with crystal gem knob decoration template
A covered lid-and-base rigid box with a sculptural knob on the lid: ball, faceted gem, fluted Art Deco or ring pull, in gold, silver, black or crystal. Print the lid top, the lid band and the base wrap. A ready-sized preset of the rigid box with lid knob — adjust the object dimensions and decoration area to preview your artwork at size.
Object size180 × 120 × 70 mm
Artwork area592 × 45.5 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-KNOBBOX-01
- Object size
- Length 180 · Width 120 · Closed height 70 mm
- Size range
- Length 50–400 · Width 50–400 · Closed height 30–300 mm
- Parts
- 3 parts — Lid top, Lid band (all round), Base wrap (exposed, all round)
- Artwork area
- 0.064 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 4 options; the template and 3D preview follow each change.
- Knob4 options
- Knob finish4 options
- Cover paper5 options
- Lid depth%
The rigid box with lid knob family
The same model with sizes and artwork options ready to customize.

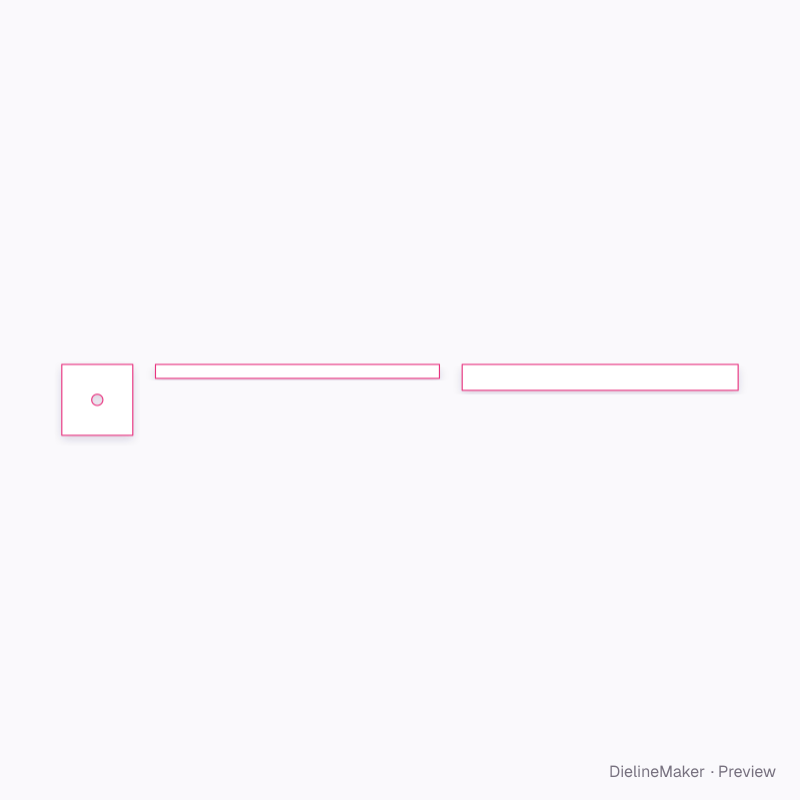

Preset

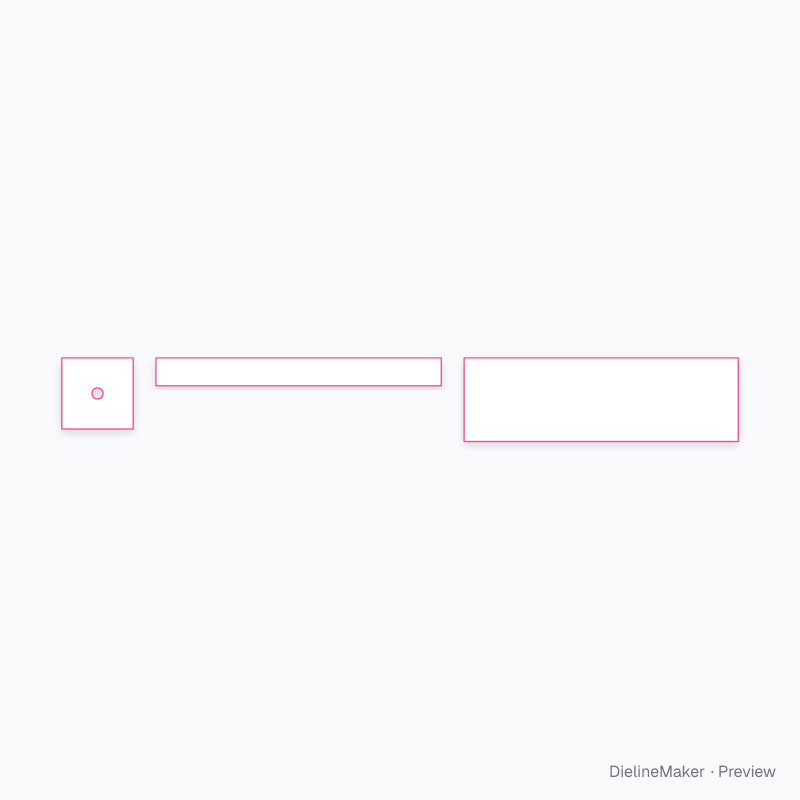

Preset
