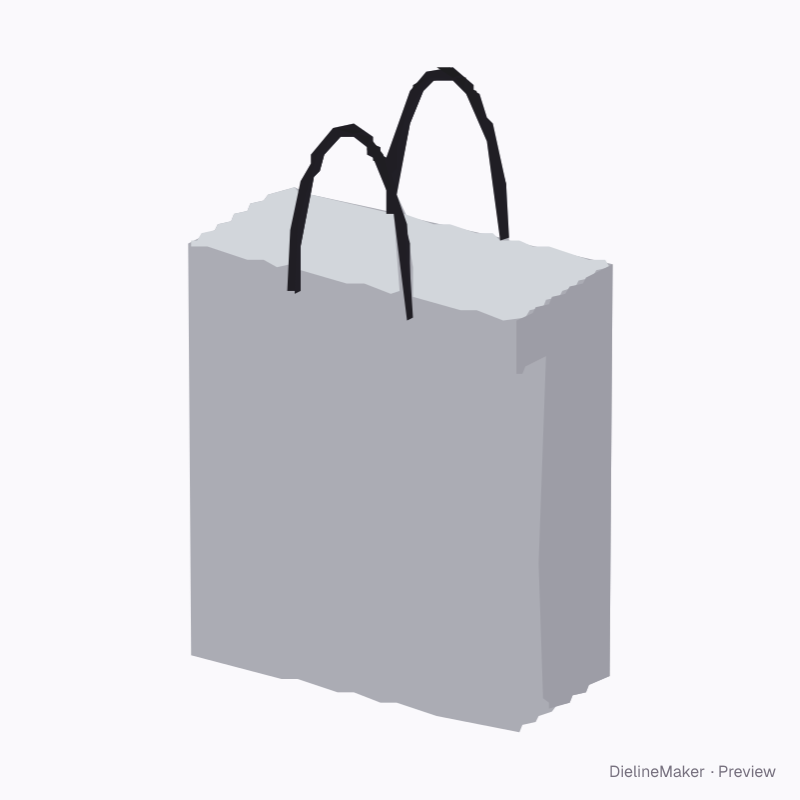

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-LAMTOTE-01Labels
Metallic laminate loop carrier dieline
A reflective laminate block-bottom carrier with a folded-over mouth and soft loop handles. Print the front and back. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside260 × 120 × 300 mm
Outside260 × 120 × 300 mm
Flat blank260 × 260 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-LAMTOTE-01
- Inside size
- Width 260 · Gusset depth 120 · Height 300 mm
- Size range
- Width 150–500 · Gusset depth 60–250 · Height 150–500 mm
- Manufacturing
- 260 × 120 × 300 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front panel, Back panel
- Board area
- 0.135 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

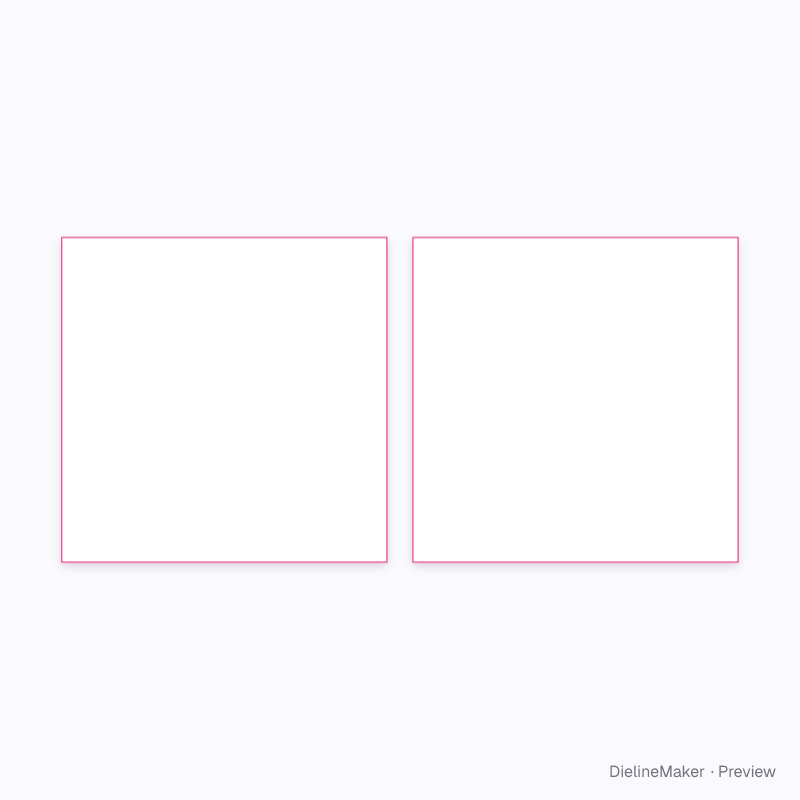

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Laminate4 options
- Mouth fold bandmm
- Handle dropmm
- Print gussetson / off
- Handles4 options
Ready-sized metallic laminate loop carrier presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset

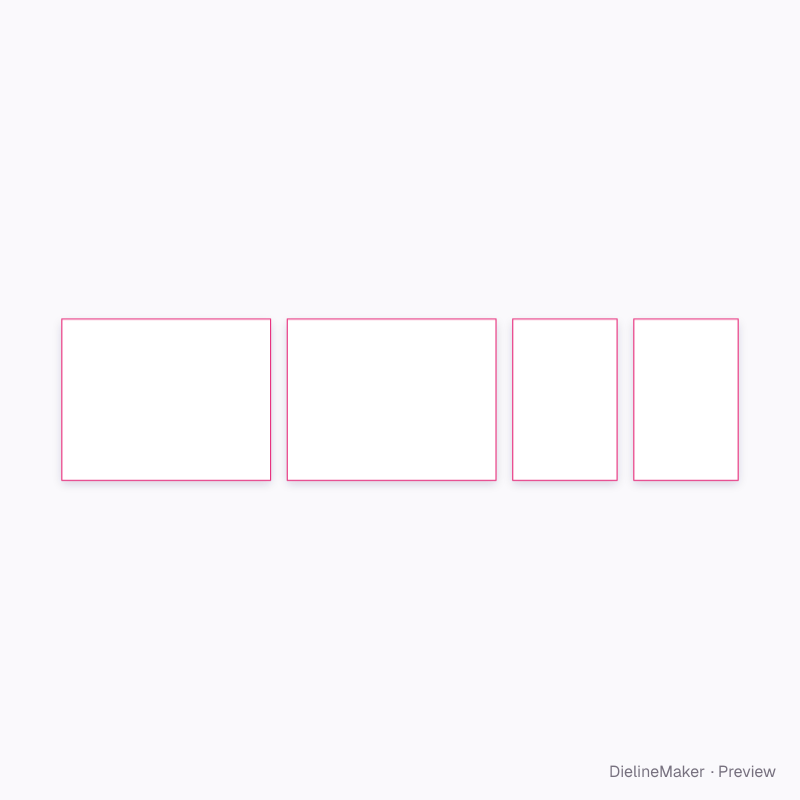

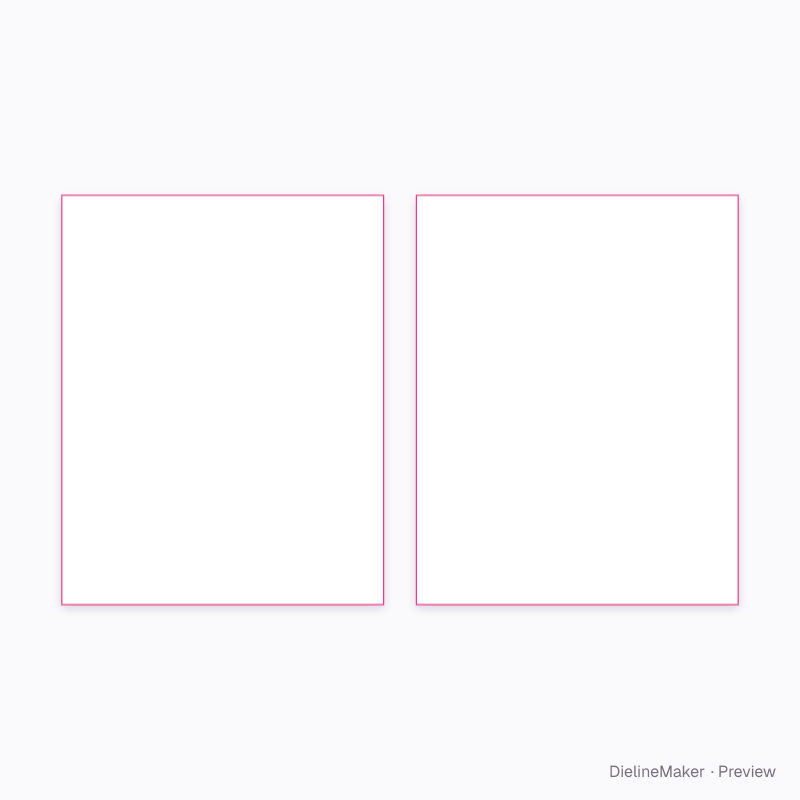

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this metallic laminate loop carrier yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
