Preview image

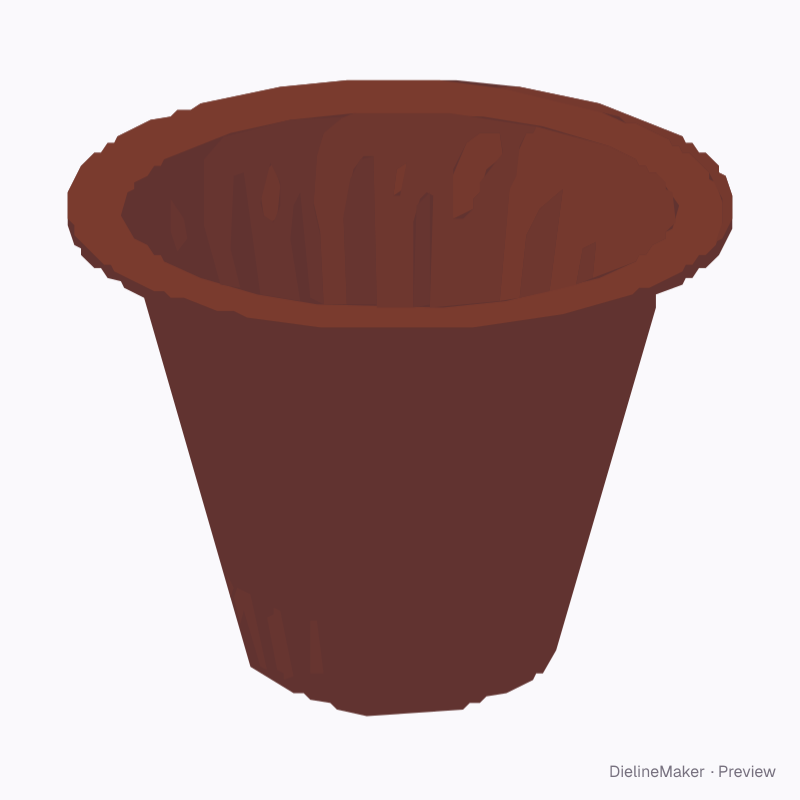

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CAPSULE-01Labels
Espresso capsule 37 mm dieline
A fluted aluminium coffee capsule with a rim flange and a printed foil lid, in a lacquer colour. A ready-sized preset of the metal coffee capsule — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 37 × 29 mm
OutsideØ 37 × 29 mm
Flat blank37 × 37 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CAPSULE-01
- Inside size
- Flange diameter 37 · Height 29 mm
- Size range
- Flange diameter 25–60 · Height 15–50 mm
- Manufacturing
- Ø 37 × 29 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.001 m² · about 447 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Flutescount
- Base diameter%
- Show2 options
- Body colour7 options
The metal coffee capsule family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this espresso capsule 37 mm yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
