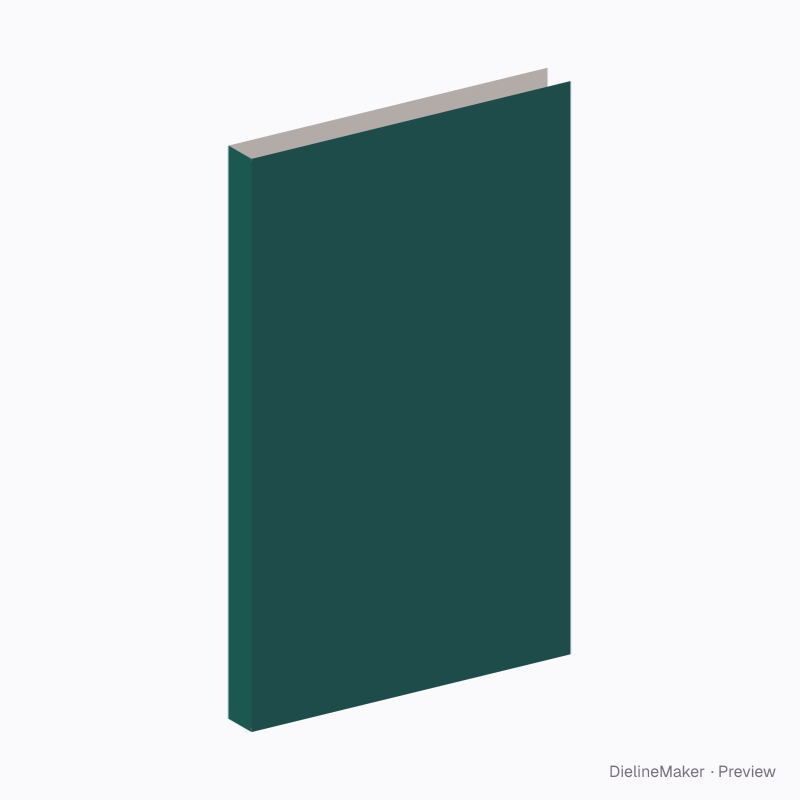

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementCards & tags
Pocket 108 × 175 mm bound notebook cover and page template
108 × 175 mm cover with an editable 12 mm spine. Confirm bound thickness with your printer. A ready-sized preset of the bound notebook — adjust the object dimensions and decoration area to preview your artwork at size.
Object size108 × 12 × 175 mm
Artwork area228 × 175 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Cover width 108 · Bound spine 12 · Cover height 175 mm
- Size range
- Cover width 75–400 · Bound spine 3–60 · Cover height 100–450 mm
- Parts
- 2 parts — Book cover, Page-block trim reference
- Artwork area
- 0.058 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Crease
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 8 options; the template and 3D preview follow each change.
- Editable bound interior spreadon / off
- Page insetmm
- Rounded fore-edge cornersmm
- Integral cover flapsmm
- Closure3 options
- Band / strap widthmm
- Closure colour4 options
- Ribbon bookmarkon / off
The bound notebook family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pocket 108 × 175 mm bound notebook yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
