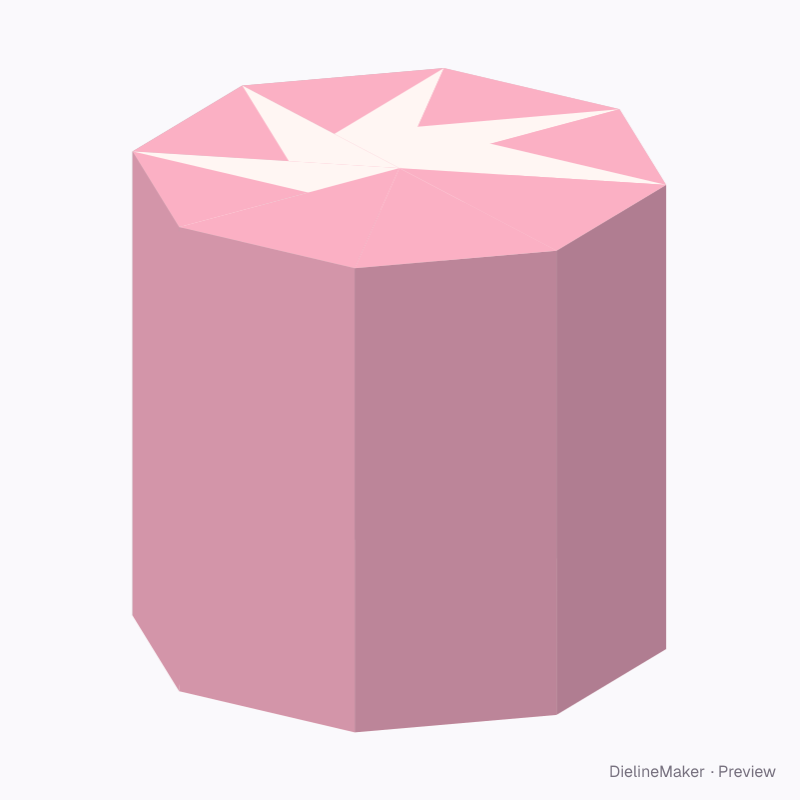

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
8-sided twist-lid carton dieline
A regular polygon tube with a connected twist-fold lid. Returning corner webs link the roof sectors, and underlapping lips close the centre; triangular glued sectors form the base of the same blank. A ready-sized preset of the polygon twist-gusset carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 100 × 100 mm
OutsideØ 100.3 × 100.3 mm
Flat blank340.7 × 200.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside diameter across flats 100 · Inside body height 100 mm
- Size range
- Inside diameter across flats 30–500 · Inside body height 20–500 mm
- Manufacturing
- Ø 100.2 × 100.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.061 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Polygon sidescount
- Lid reachmm
- Joining tab depthmm
The polygon twist-gusset carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 8-sided twist-lid carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
