Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-POLYGON-ROLLOVER-TRAY-01Trays & lids
Hexagonal rollover tray and lid dieline
A glueless 3–12 sided tray whose walls all return inside as doubled panels locked into the floor, with an optional matching lid. A ready-sized preset of the polygon tray and lid with returning walls — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 180 × 50 mm
OutsideØ 181 × 51 mm
Flat blank353.2 × 368.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-POLYGON-ROLLOVER-TRAY-01
- Inside size
- Width across corners 180 · Tray height 50 mm
- Size range
- Width across corners 60–500 · Tray height 15–200 mm
- Manufacturing
- Ø 180.5 × 50.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Tray, Lid
- Board area
- 0.132 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WE-flute KSBS 18 pt
- Good for

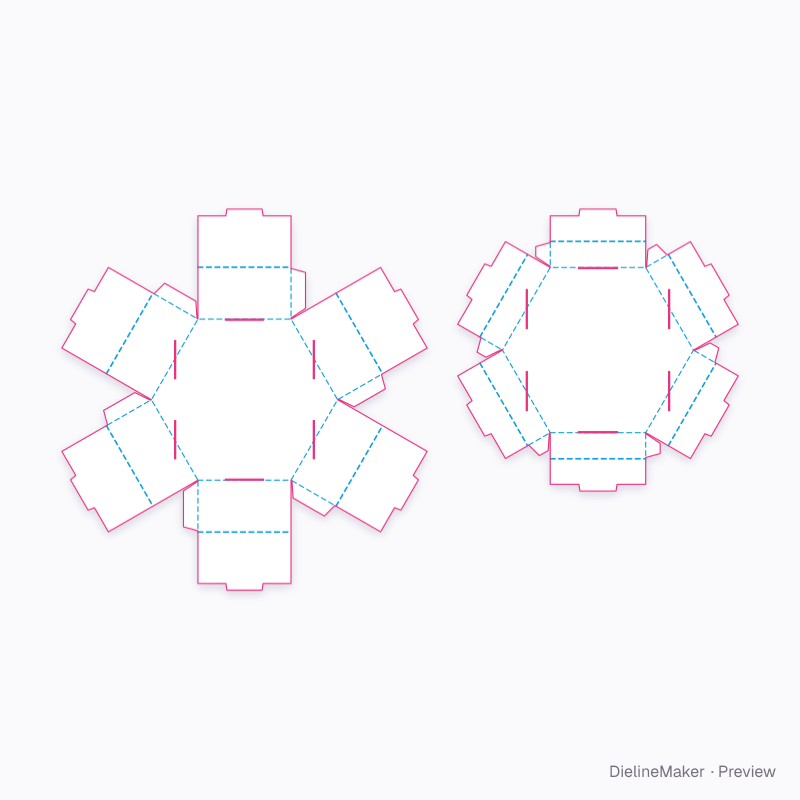

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-POLYGON-ROLLOVER-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FloorTray | 180 × 155.9 | L × – |
| Wall ×4Tray | 50 × 90 | H × – |
| Wall ×2Tray | 90 × 50 | – × H |
| Wall roll ×3Tray | 0.5 × 90 | – |
| Corner ear ×4Tray | 48 × 14 | – |
| Wall roll ×2Tray | 90 × 0.5 | – |
| Corner ear ×2Tray | 14 × 48 | – |
| Wall inner ply ×4Tray | 56 × 90 | – |
| Wall inner ply ×2Tray | 90 × 56 | – |
| Lid topLid | 184.6 × 159.9 | – |
| Wall ×2Lid | 92.3 × 25 | – |
| Wall ×4Lid | 25 × 92.3 | – |
| Wall roll ×2Lid | 92.3 × 0.5 | – |
| Corner ear ×2Lid | 14 × 23 | – |
| Corner ear ×4Lid | 23 × 14 | – |
| Wall roll ×2Lid | 0.5 × 92.3 | – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Sidescount
- Elongationmm
- Matching lidon / off
- Lid depthmm

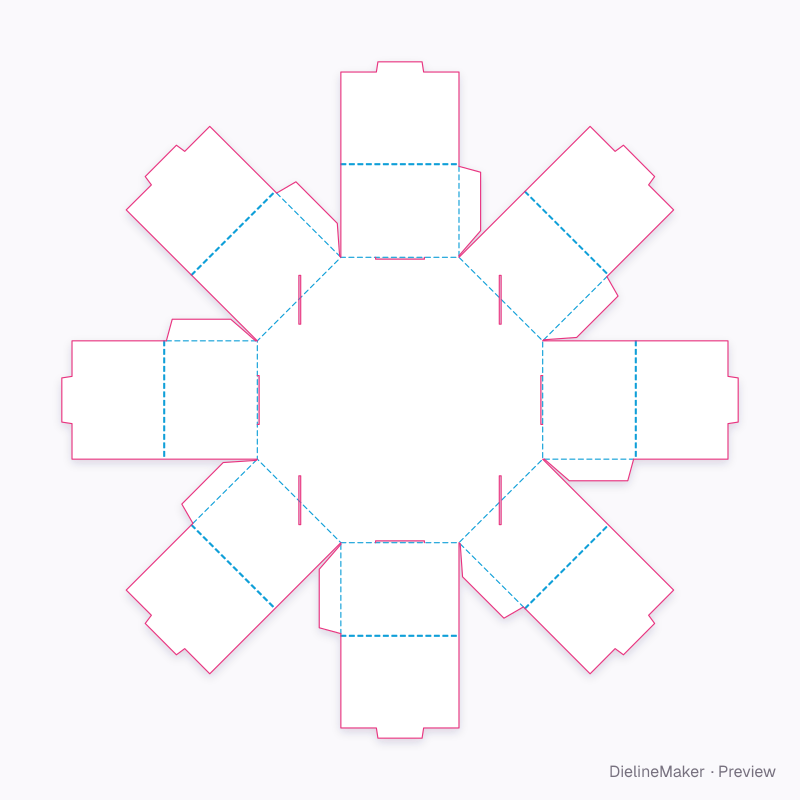

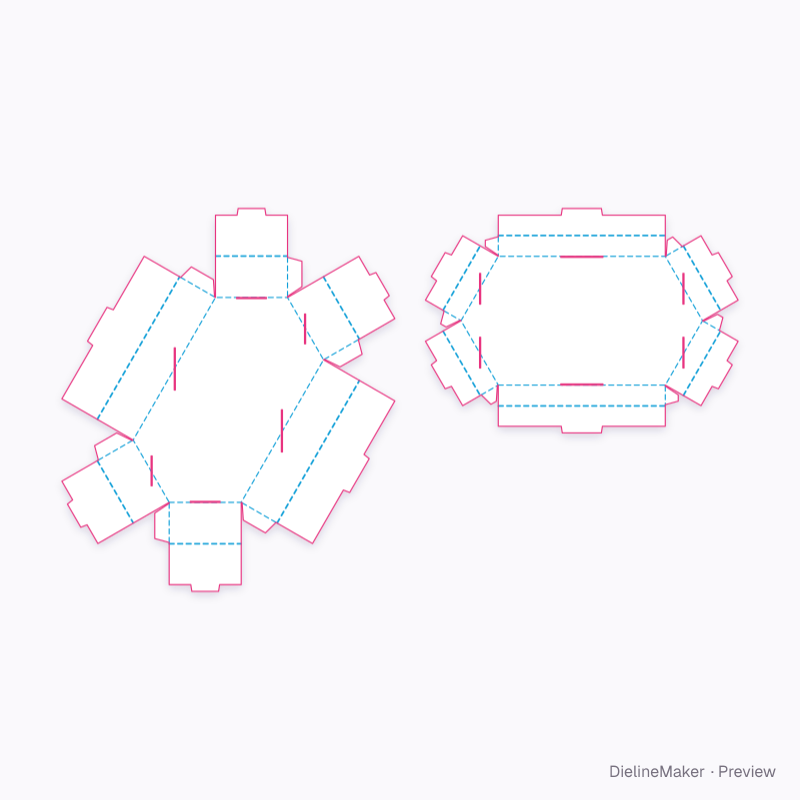

The polygon tray and lid with returning walls family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset

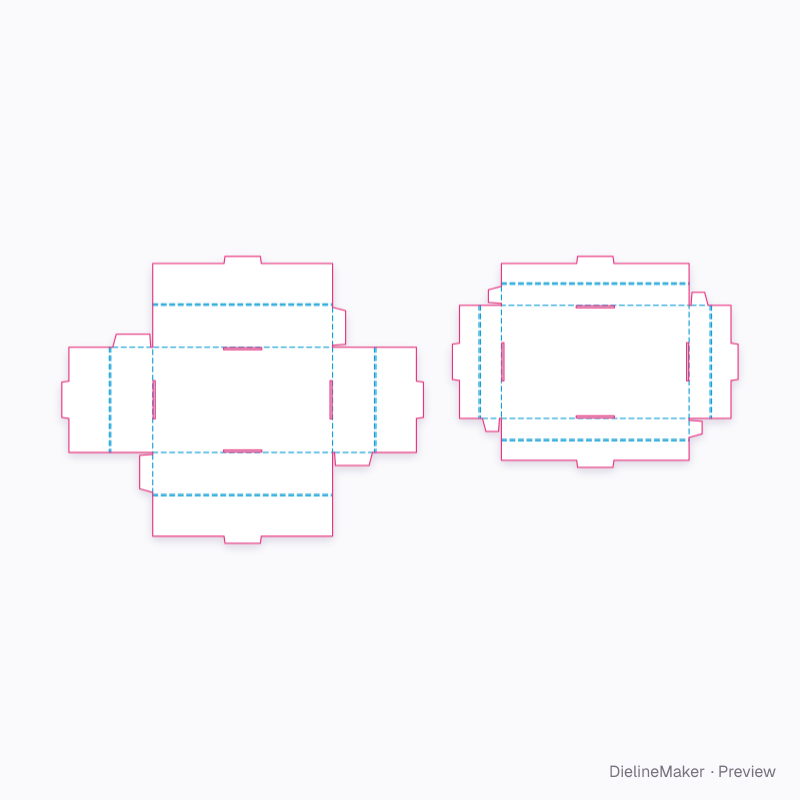

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hexagonal rollover tray and lid yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
