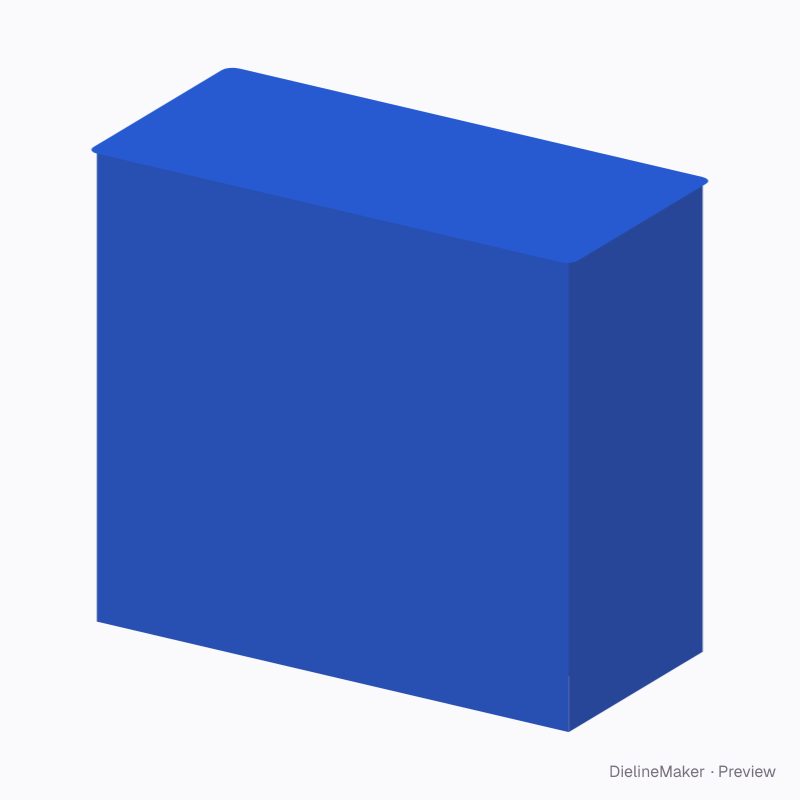

Wide promotional counter dieline
A scored display body, separate rounded worktop and interlocking internal support boards. The body folds flat at its corners. This is a lightweight promotional construction; prototype the material, joints and worktop load before use. A ready-sized preset of the pop-up promotional counter — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1100 × 500 × 1000 mm
Outside1100 × 500 × 1000 mm
Flat blank3240 × 1000 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Body width 1100 · Body depth 500 · Counter height 1000 mm
- Size range
- Body width 450–1200 · Body depth 250–700 · Counter height 650–1200 mm
- Manufacturing
- 1100 × 500 × 1000 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Scored display wrap, Rounded worktop, Interlocking support, Interlocking support
- Board area
- 5.415 m²
- Default board
- EB double wall · 4.6 mm caliper
- Board options
- B-fluteEB double
- Good for

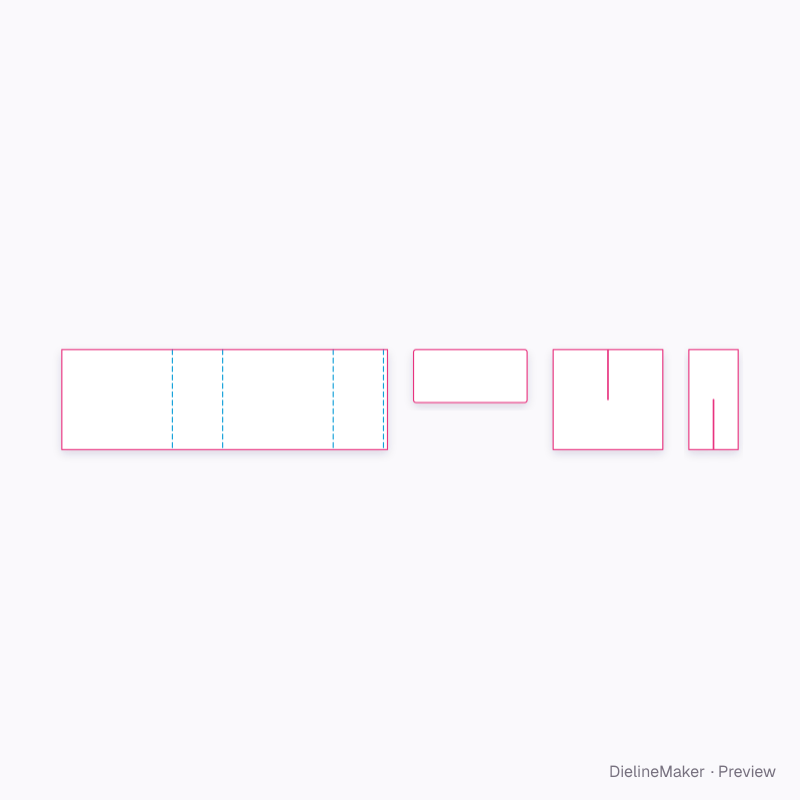

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (4.6 mm for EB double wall). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| frontScored display wrap | 1100 × 1000 | L × H |
| rightScored display wrap | 500 × 1000 | W × H |
| backScored display wrap | 1100 × 1000 | L × H |
| leftScored display wrap | 500 × 1000 | W × H |
| Joining lapScored display wrap | 40 × 1000 | – × H |
| Rounded worktopRounded worktop | 1130 × 530 | – |
| Internal supportInterlocking support | 1090.8 × 1000 | L − 2T × H |
| Internal supportInterlocking support | 490.8 × 1000 | W − 2T × H |
The pop-up promotional counter family
The same structure with sizes, boards and options set for a use.

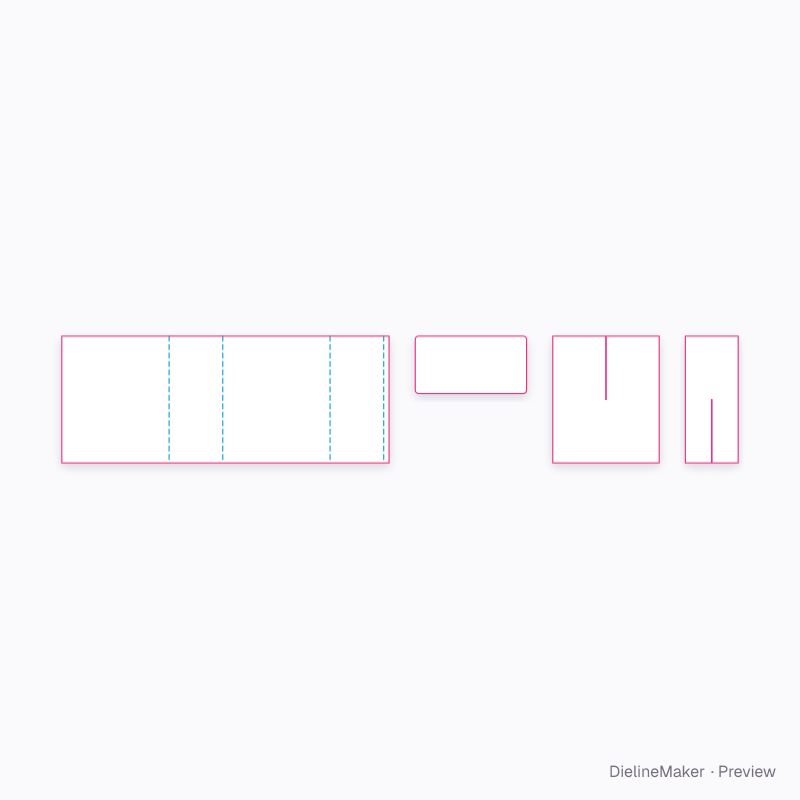

Preset

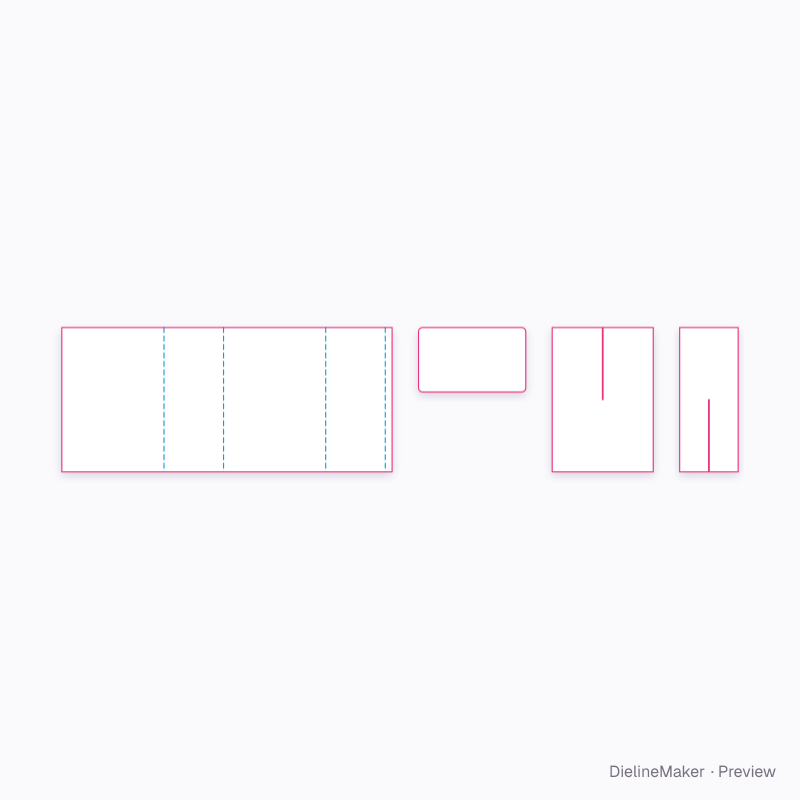

Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this wide promotional counter yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
