Tabletop menu holder with pocket dieline
A compact 100 × 150 mm removable menu or QR graphic. Keep essential content above the 15 mm lip. A ready-sized preset of the cardboard poster holder with retaining pocket — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 50 × 150 mm
Outside100 × 50 × 150 mm
Flat blank126.2 × 167 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Graphic width 100 · Rear stand depth 50 · Graphic height 150 mm
- Size range
- Graphic width 90–600 · Rear stand depth 30–250 · Graphic height 100–1000 mm
- Manufacturing
- 100 × 50 × 150 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Poster face and retaining pocket, Separate locking rear support
- Board area
- 0.027 m² · about 25 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- F-fluteFBB 400E-flute WE-flute KChipboard 1.2Chipboard 2
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Poster backing facePoster face and retaining pocket | 100 × 150 | L × H |
| Graphic seatPoster face and retaining pocket | 100 × 2 | L × – |
| Retaining lipPoster face and retaining pocket | 100 × 15 | L × – |
| Pocket left sidePoster face and retaining pocket | 2.6 × 15 | – |
| Pocket left back glue returnPoster face and retaining pocket | 10.5 × 15 | – |
| Pocket right sidePoster face and retaining pocket | 2.6 × 15 | – |
| Pocket right back glue returnPoster face and retaining pocket | 10.5 × 15 | – |
| Mounting spineSeparate locking rear support | 45 × 129 | – |
| Triangular rear legSeparate locking rear support | 50 × 129 | W × – |
| Locking braceSeparate locking rear support | 29.3 × 26.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Retaining lipmm
- Insert clearancemm

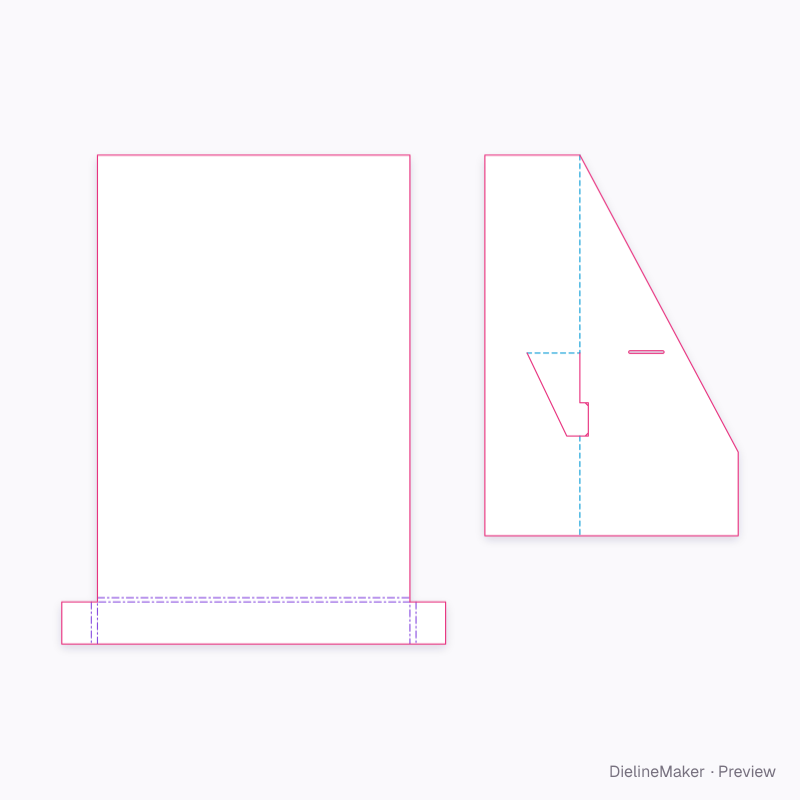

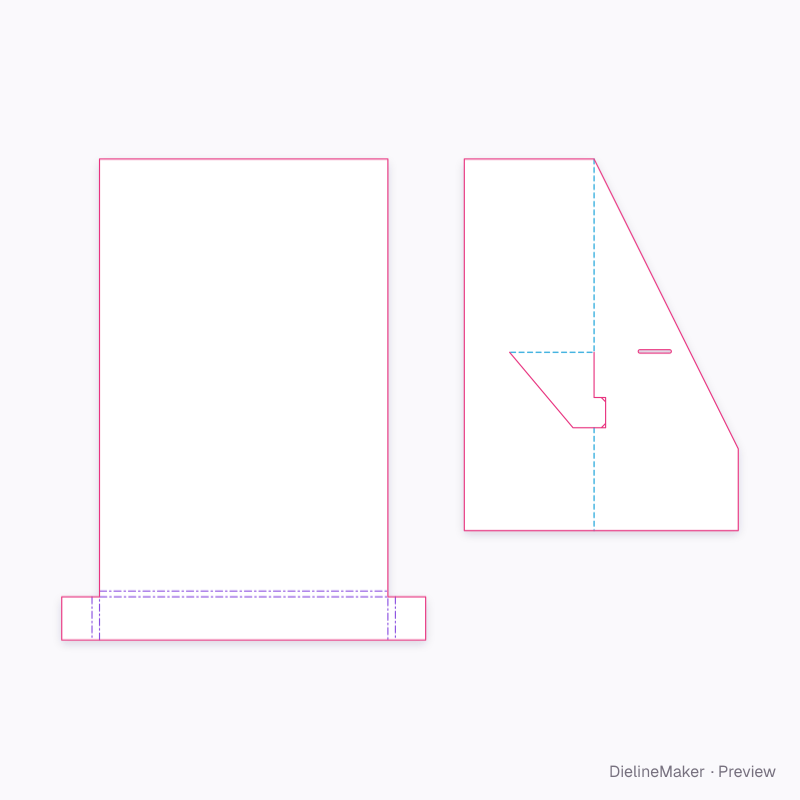

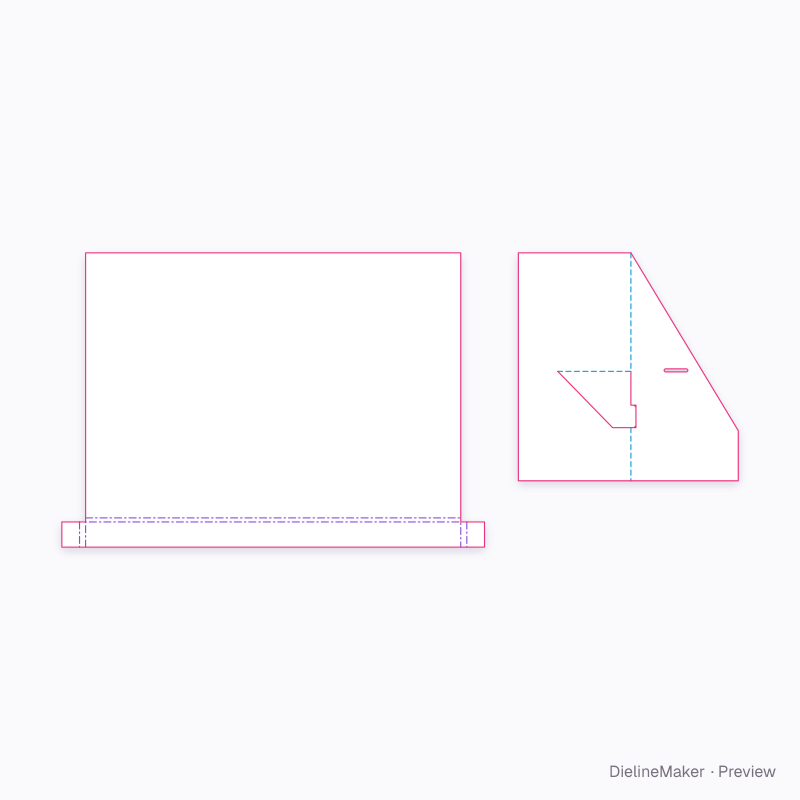

The cardboard poster holder with retaining pocket family
