Preview image

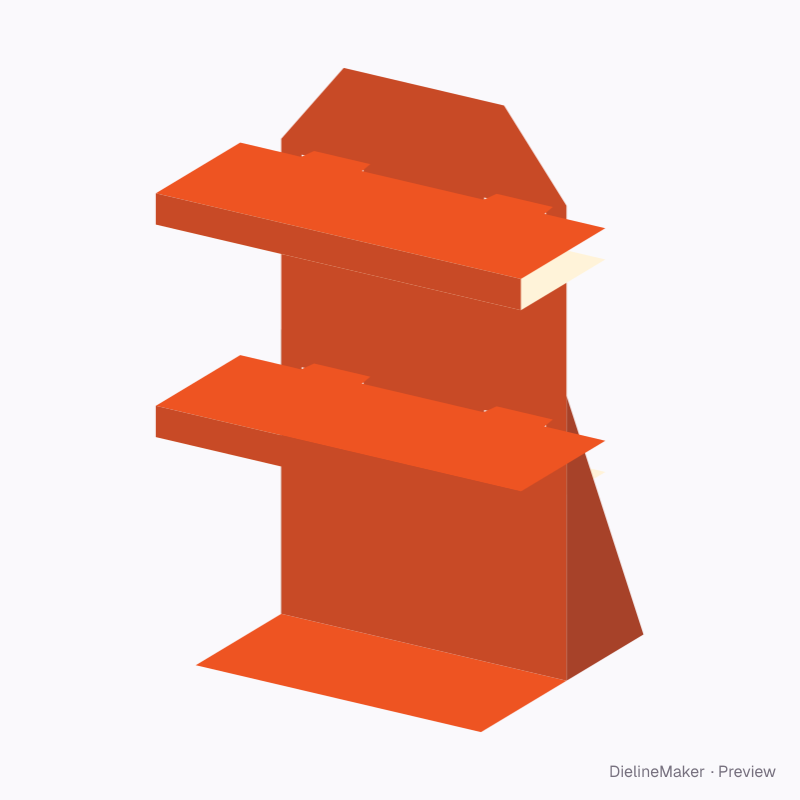

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PROJECTING-SHELF-DISPLAY-01Display
Counter shelf display, 2 shelves dieline
A back panel with a tapered header, forward base and rear braces, carrying open-ended shelves that project forward on tongue-and-slot locks. A ready-sized preset of the open-sided projecting shelf display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 120 × 380 mm
Outside253.2 × 123.2 × 383.2 mm
Flat blank466 × 568.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PROJECTING-SHELF-DISPLAY-01
- Inside size
- Back width 250 · Shelf depth 120 · Back height 380 mm
- Size range
- Back width 150–1000 · Shelf depth 60–500 · Back height 200–1800 mm
- Manufacturing
- 251.6 × 121.6 × 381.6 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Back, base and braces, Shelf 1, Shelf 2
- Board area
- 0.337 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteE-flute KFBB 400
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PROJECTING-SHELF-DISPLAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back and headerBack, base and braces | 250 × 448.4 | L × – |
| BaseBack, base and braces | 250 × 120 | L × W |
| Rear brace ×2Back, base and braces | 108 × 228 | – |
| Shelf deckShelf 1 | 320 × 133.4 | – |
| Front apronShelf 1 | 320 × 25 | – |
| UndersideShelf 1 | 320 × 133.4 | – |
| Shelf deckShelf 2 | 320 × 133.4 | – |
| Front apronShelf 2 | 320 × 25 | – |
| UndersideShelf 2 | 320 × 133.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Shelvescount
- Shelf widthmm
The open-sided projecting shelf display family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this counter shelf display, 2 shelves yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
