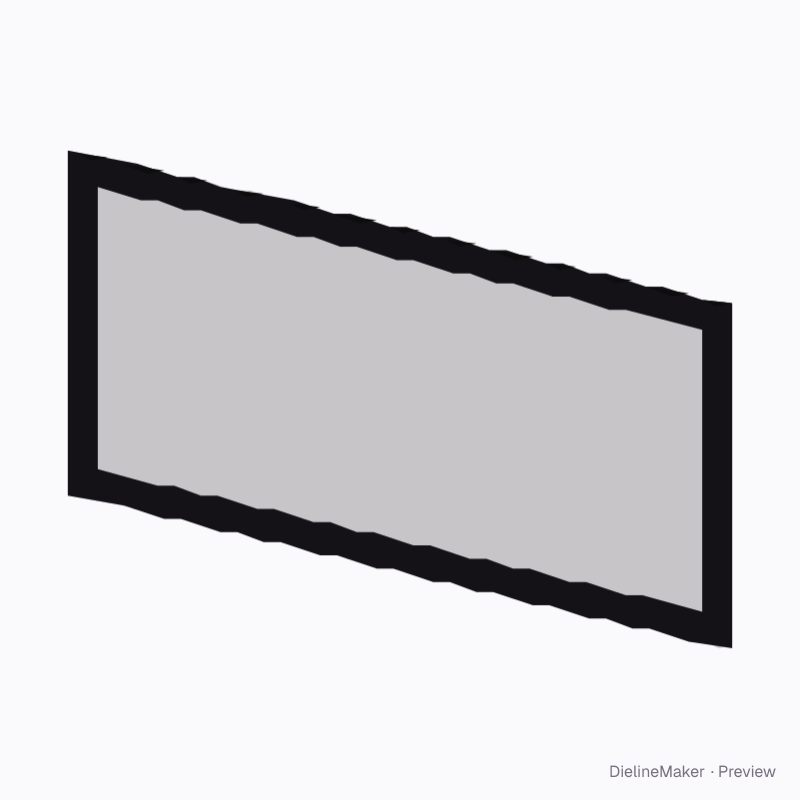

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PROJSCREEN-01Apparel & merchandise
Fixed-frame cinema screen 2.35:1 decoration template
A tripod or wall pull-down roller screen, a floor-rising pull-up screen or a fixed-frame screen with black masking around the projected content. A ready-sized preset of the projection screen — adjust the object dimensions and decoration area to preview your artwork at size.
Object size3500 × 1490 mm
Artwork area3500 × 1490 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-PROJSCREEN-01
- Object size
- Viewing width 3500 · Viewing height 1490 mm
- Size range
- Viewing width 600–6000 · Viewing height 400–4000 mm
- Parts
- One artwork area
- Artwork area
- 5.215 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 4 options; the template and 3D preview follow each change.
- Screen4 options
- Black masking bordermm
- Black dropmm
- Case3 options
The projection screen family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fixed-frame cinema screen 2.35:1 yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
